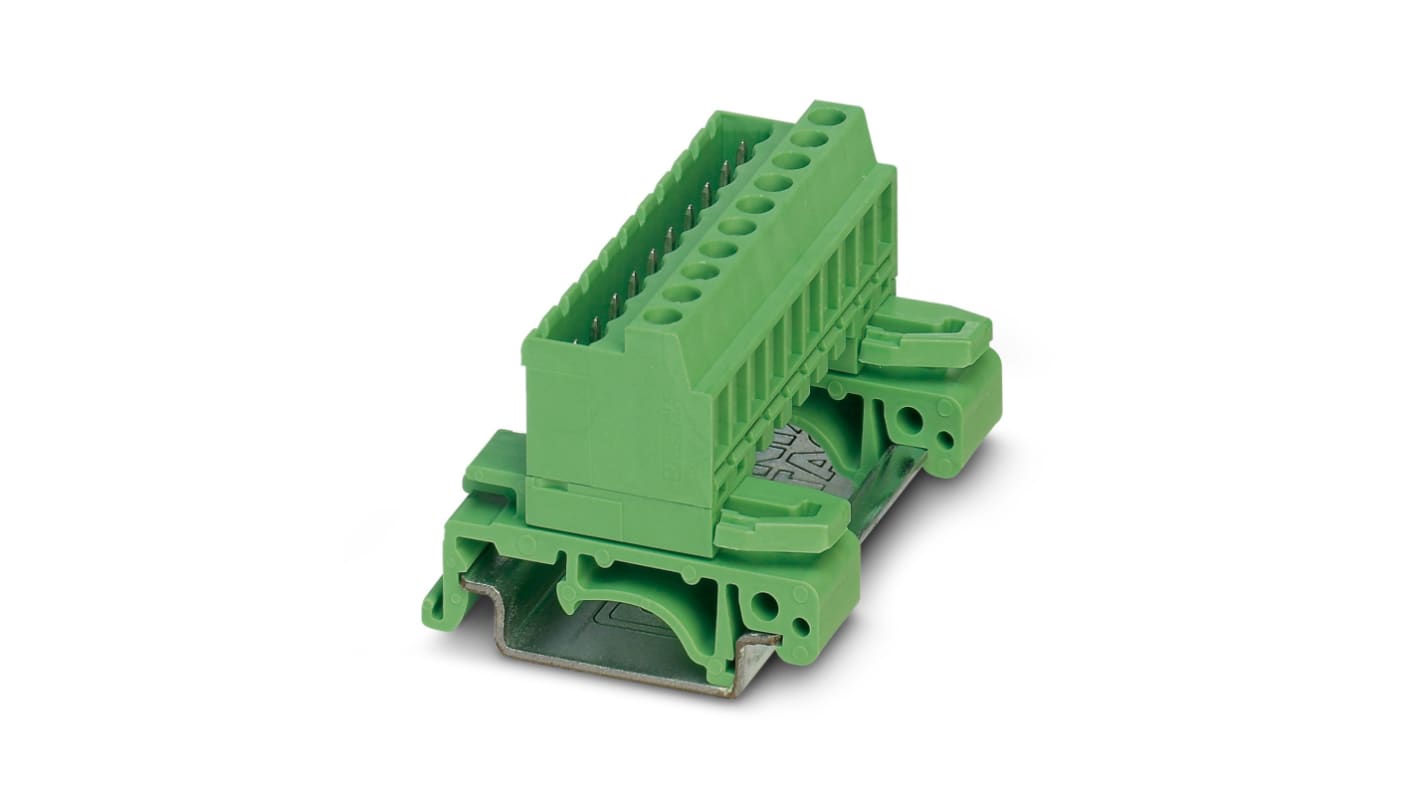

Phoenix Contact 1788156 UMSTBVK 2.5/ 6-G-5.08 Series Green, 0.2 → 2.5mm², Screw Termination
- RS Stock No.:
- 648-4151
- Mfr. Part No.:
- 1788156
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£5.17
(exc. VAT)
£6.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 108 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £5.17 |
*price indicative
- RS Stock No.:
- 648-4151
- Mfr. Part No.:
- 1788156
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Green | |
American Wire Gauge | 24 → 12AWG | |
Series | UMSTBVK 2.5/ 6-G-5.08 | |
Termination Method | Screw | |
Cable CSA | 0.2 → 2.5mm² | |
Current Rating | 12A | |
Voltage Rating | 320 V | |
Pitch | 5.08mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | '+100°C | |
Model Number | UMSTBVK 2,5/ 6-G-5,08 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Green | ||
American Wire Gauge 24 → 12AWG | ||
Series UMSTBVK 2.5/ 6-G-5.08 | ||
Termination Method Screw | ||
Cable CSA 0.2 → 2.5mm² | ||
Current Rating 12A | ||
Voltage Rating 320 V | ||
Pitch 5.08mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature '+100°C | ||
Model Number UMSTBVK 2,5/ 6-G-5,08 | ||
- COO (Country of Origin):
- PL
Phoenix Contact UMSTBVK 2.5/ 6-G-5.08 Series DIN Rail Terminal Block, 0.2 to 2.5 mm², Screw Termination Method - 1788156
This DIN rail terminal block is designed with a compact size of 42.52mm in length and a pitch of 5.08mm, suitable for easy mounting on NS 32 or NS 35 DIN rails. It accommodates wire sizes from 24AWG to 12AWG and features a robust design for seamless integration within the COMBICON series. The terminal block uses a screw connection with a tension sleeve, ensuring reliable conductor attachment.
Features & Benefits
• High current rating of 12A supports robust applications
• Voltage rating of 320V ensures compatibility with diverse systems
• Durable screw connection provides secure wiring
• Tin-plated contact surface enhances electrical conductivity
• Voltage rating of 320V ensures compatibility with diverse systems
• Durable screw connection provides secure wiring
• Tin-plated contact surface enhances electrical conductivity
Applications
• Used in power distribution systems
• Suitable for automation and control systems
• Ideal for communication equipment wiring
• Utilised in industrial machinery connections
• Perfect for assembly line electrical setups
• Suitable for automation and control systems
• Ideal for communication equipment wiring
• Utilised in industrial machinery connections
• Perfect for assembly line electrical setups
Will it perform in extreme temperatures?
Yes, it operates effectively from -40°C to 100°C.
Does it have any special mounting features?
The connector has a DIN rail mounting type for easy and secure installation.
Can it be used for both rigid and flexible conductors?
Yes, it accommodates both types of conductors.
Approvals
UL, CUL, CSA
