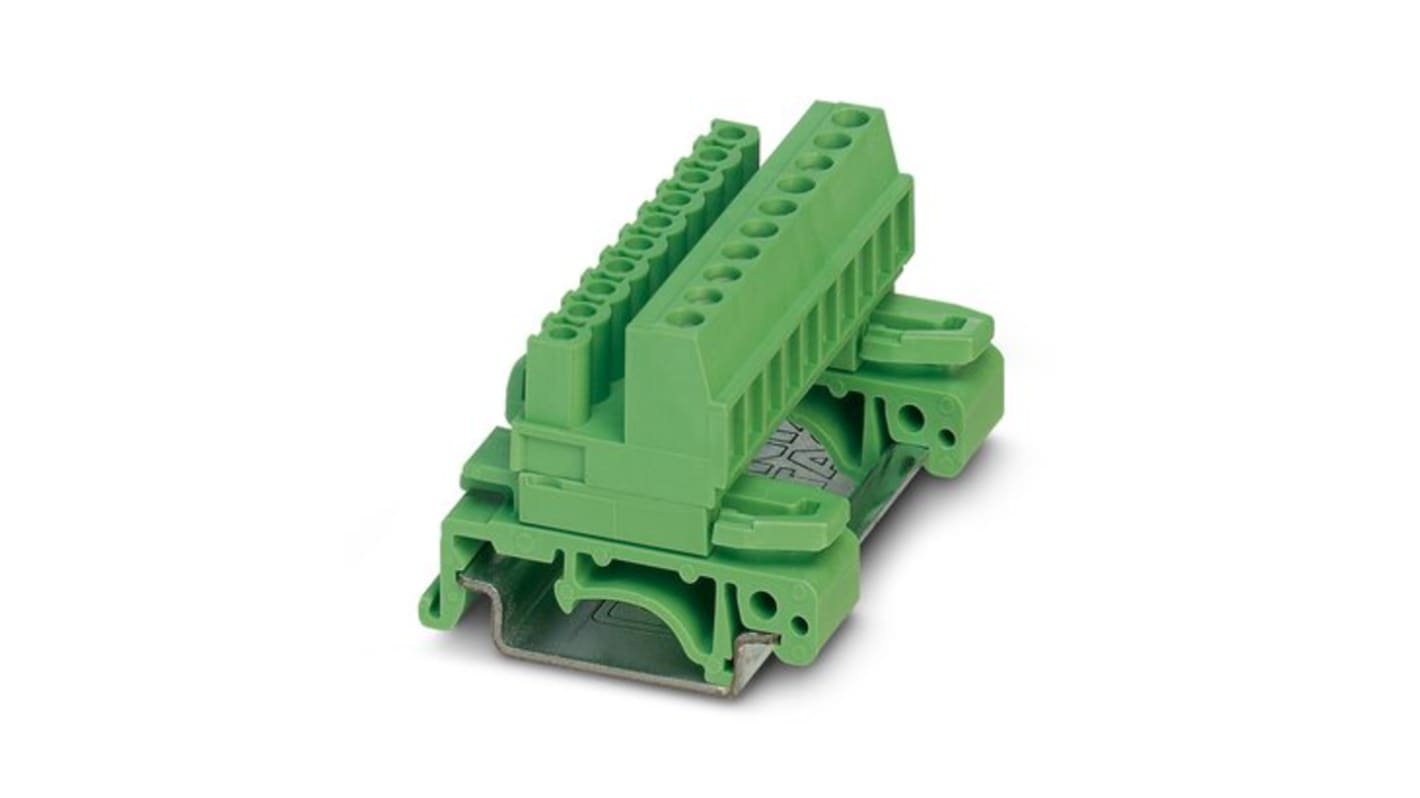

Phoenix Contact UMSTBVK Series Green DIN Rail Connector, 0.2 → 2.5mm², Screw Termination

The Phoenix Contact DIN rail connector, part of the UMSTBVK 2,5/..-ST product range, features a 2.5 mm² nominal cross-section, green color, and 12 A nominal current rating, with a 320 V rated voltage (III/2). It offers 12 potentials, positions, and connections in a single row configuration, utilizing a socket contact type with tin-plated surface. The connector employs a 5.08 mm pitch and screw connection with tension sleeve, accommodating L slotted screw heads for secure mounting on DIN rails. Conductor/PCB connection direction is set at 0°, utilizing the COMBICON MSTB 2,5 plug-in system, with a locking mechanism omitted.

Can be combined with the MSTB 2.5 range
Well-known connection principle allows worldwide use
