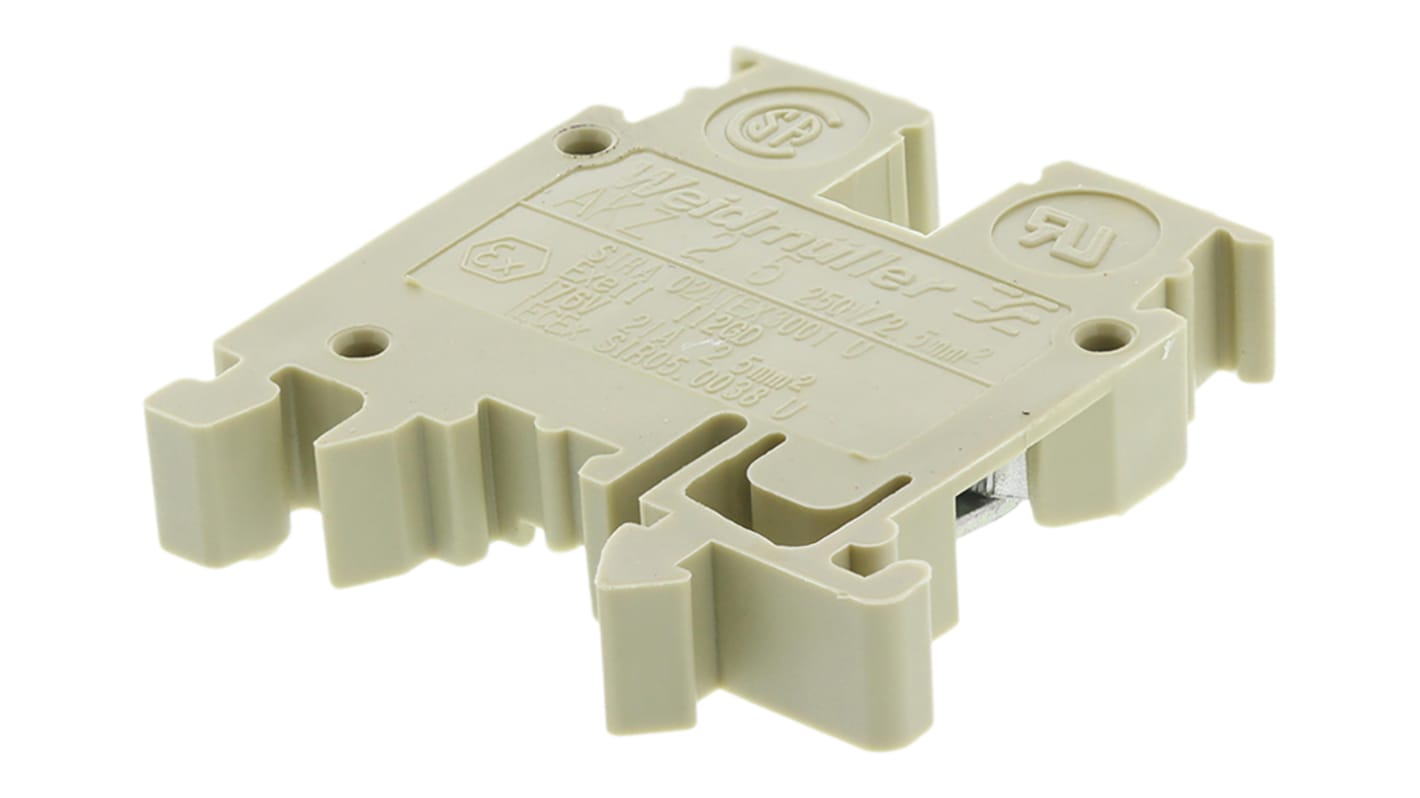

Weidmuller 0175960000 AK Series, 0.5 → 4mm²

View all DIN Rail Terminal Blocks
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO, 2.5mm², Single-Level, Screw Termination
RS Stock No.
878-7493

Each (In a Pack of 10)

£0.309

(exc. VAT)

£0.371

(inc. VAT)

RS Stock No.:
489-5509
Mfr. Part No.:
0175960000
Brand:
Weidmuller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmuller

Series

AK

Cable CSA

0.5 → 4mm²

Current Rating

24A

Voltage Rating

250 V

Minimum Operating Temperature

-50°C

Maximum Operating Temperature

+100°C

COO (Country of Origin):
CN

AKZ Miniature Series


Miniature terminals, designed for mounting on 15 mm symmetrical rail to BS 6273:1982 TS15. The range is ideally suited for use in terminal boxes or areas where space is at a premium.

Features and Benefits


• Moulded in polyamide 6.6 with tin plated brass contacts
• Suited to a temperature range of -50°C to +100°C

Note

Voltage and current ratings are with respective to VDE

Warning

Isolating terminals must only be used for isolating sections of a circuit for test purposes. They must NOT be used to switch services on or off when power is applied.

Approvals

(1) CSA certified, (2) UL recognised

Approvals

1,2


AKZ Miniature Series

Approvals

(1) CSA certified, (2) UL recognised
