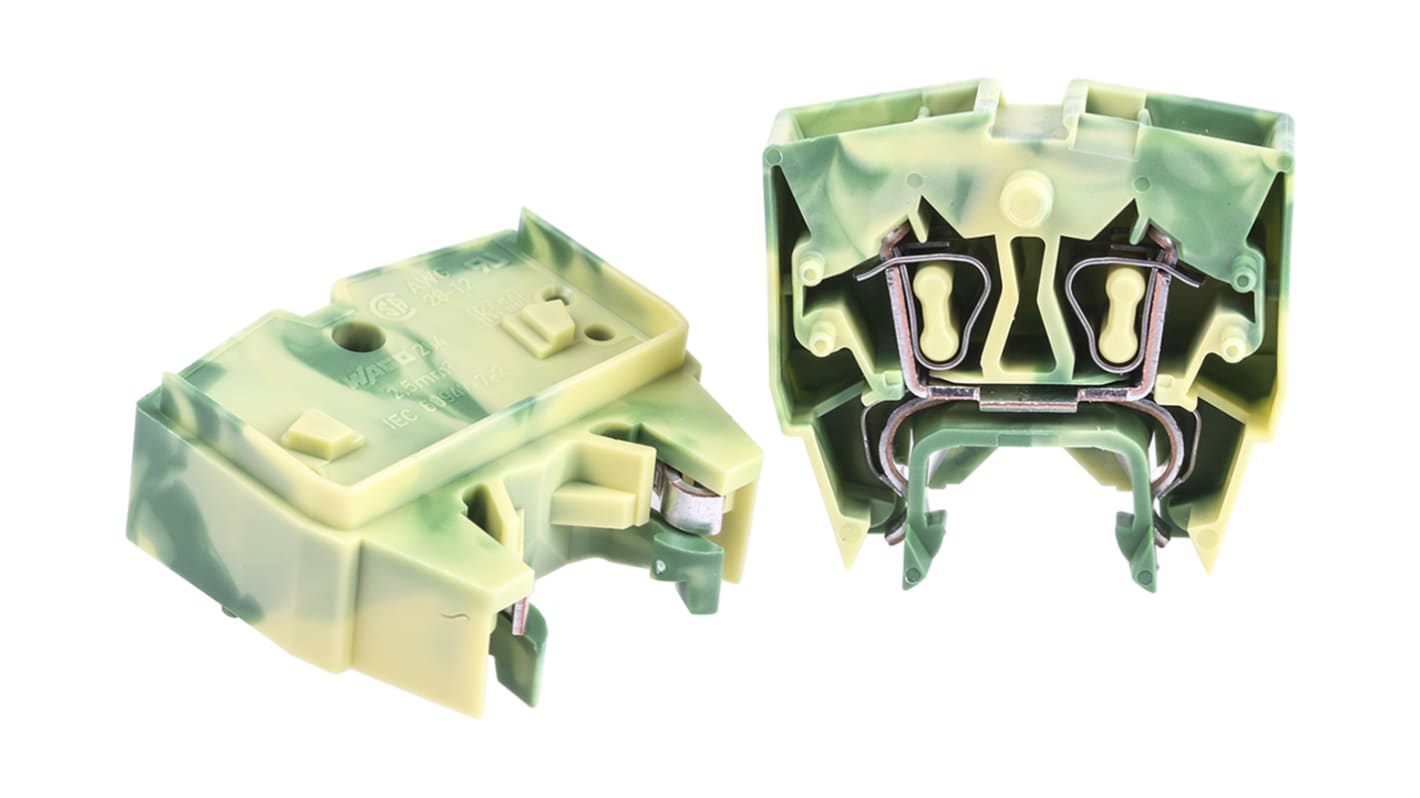

WAGO 264-727 264 Series Green/Yellow, 2.5mm², Single-Level, Cage Clamp Termination
- RS Stock No.:
- 484-3902
- Mfr. Part No.:
- 264-727
- Brand:
- WAGO
Subtotal (1 pack of 10 units)*
£19.35
(exc. VAT)
£23.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 480 unit(s) ready to ship
- Plus 190 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.935 | £19.35 |
*price indicative
- RS Stock No.:
- 484-3902
- Mfr. Part No.:
- 264-727
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Green/Yellow | |
| Number of Levels | Single | |
| Series | 264 | |
| American Wire Gauge | 28 → 12AWG | |
| Voltage Rating | 600 V | |
| Termination Method | Cage Clamp | |
| Cable CSA | 2.5mm² | |
| Fused | No | |
| Pitch | 10mm | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Green/Yellow | ||
Number of Levels Single | ||
Series 264 | ||
American Wire Gauge 28 → 12AWG | ||
Voltage Rating 600 V | ||
Termination Method Cage Clamp | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Pitch 10mm | ||
- COO (Country of Origin):
- DE
264 Miniature Series
Front-entry miniature screwless DIN Rail terminals are designed for snap-mounting onto symmetrical DIN Rail 467-349. The terminals have a clamp design that ensures the clamping force automatically adjusts to the size of the connector. Thus resulting in a corrosion-free contact area, and compensates for any deformation of the conductor due to cold flow or settling of strands.
Features and Benefits
• Available in 3 colours
• Moulded in modified nylon 6.6 (free from halogen)
• Self-extinguishing according to UL94-V2
• Temperature stabilised allowing continuous operation at 105°C (170°C short term) according to IEC216 part 1 and 2
• Terminals interlock and are designed to prevent reverse mounting
• 24.5 mm Depth
• Rated at 600 V (UL)
• The green/yellow earth terminal blocks connect directly to the mounting rail
• Moulded in modified nylon 6.6 (free from halogen)
• Self-extinguishing according to UL94-V2
• Temperature stabilised allowing continuous operation at 105°C (170°C short term) according to IEC216 part 1 and 2
• Terminals interlock and are designed to prevent reverse mounting
• 24.5 mm Depth
• Rated at 600 V (UL)
• The green/yellow earth terminal blocks connect directly to the mounting rail
Note
To ensure a high level of safety and security it is essential that only 1 conductor is inserted in each terminal. However, when jumper bars are used to common terminals a conductor of not more than 1.5mm² may be inserted between the jumper and the outer edge of the terminal block
Approvals
UL recognised component, CSA certified, DEMKO (except 264-727), KEMA, SEMKO.
