WAGO 264-716 264 Series Feed Through Terminal Block Orange, 2.5mm², 1-Level, Cage Clamp
- RS Stock No.:
- 867-904
- Mfr. Part No.:
- 264-716
- Brand:
- WAGO

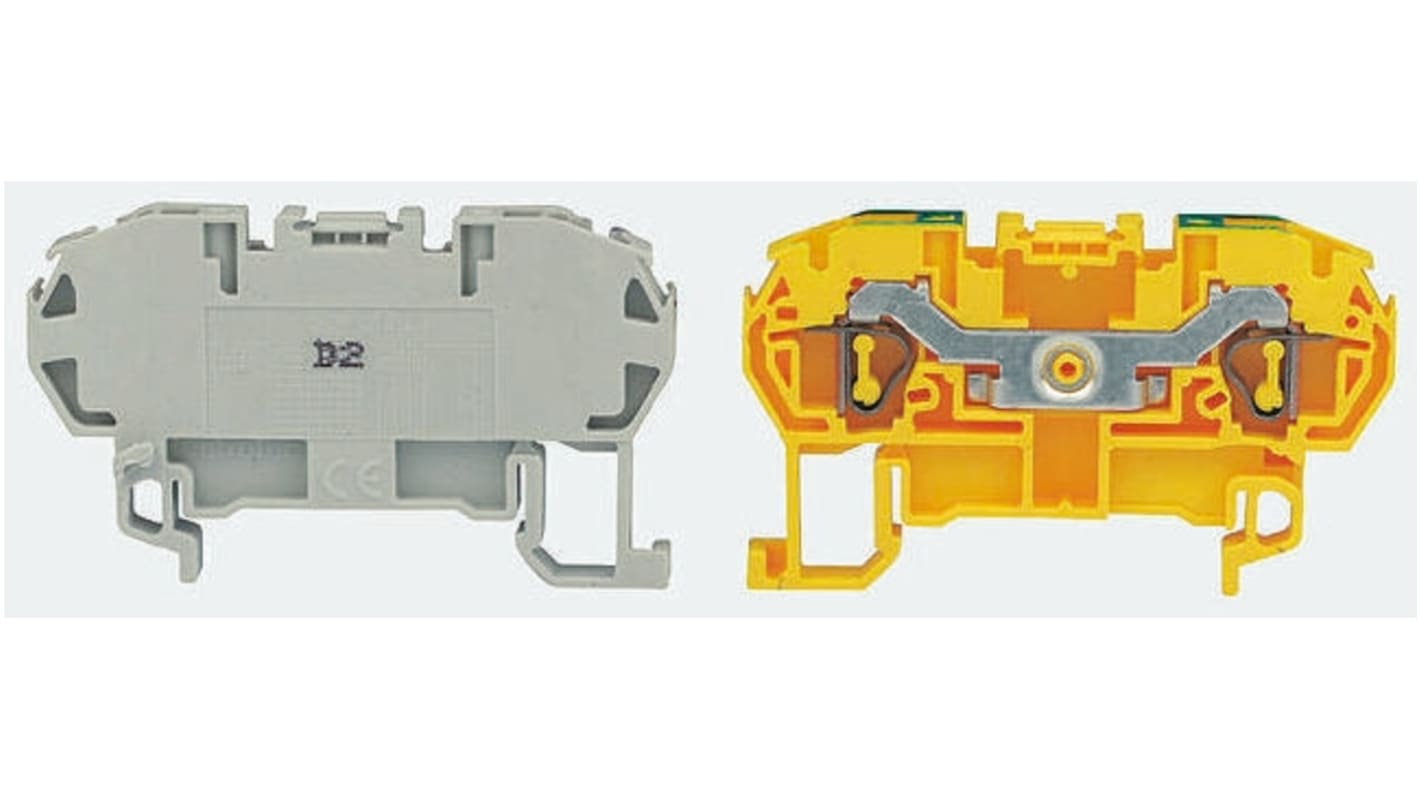

Image representative of range
Subtotal (1 pack of 5 units)*
£4.16
(exc. VAT)
£4.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 90 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.832 | £4.16 |
*price indicative
- RS Stock No.:
- 867-904
- Mfr. Part No.:
- 264-716
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Feed Through Terminal Block | |
| Colour | Orange | |
| Number of Positions | 2 | |
| Number of Levels | 1 | |
| Series | 264 | |
| Voltage | 800V | |
| Cable CSA | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Termination Type | Cage Clamp | |
| Terminal Block Current | 24A | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Feed Through Terminal Block | ||
Colour Orange | ||
Number of Positions 2 | ||
Number of Levels 1 | ||
Series 264 | ||
Voltage 800V | ||
Cable CSA 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Termination Type Cage Clamp | ||
Terminal Block Current 24A | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
RoHS Status: Exempt
Mini feed-through connections for TS 35 rails
Mini feed-through connections for mounting on TS 35 type DIN rails and designed to fit into small enclosures.
Two versions of these terminals are available, for 2 or 4 conductors.
