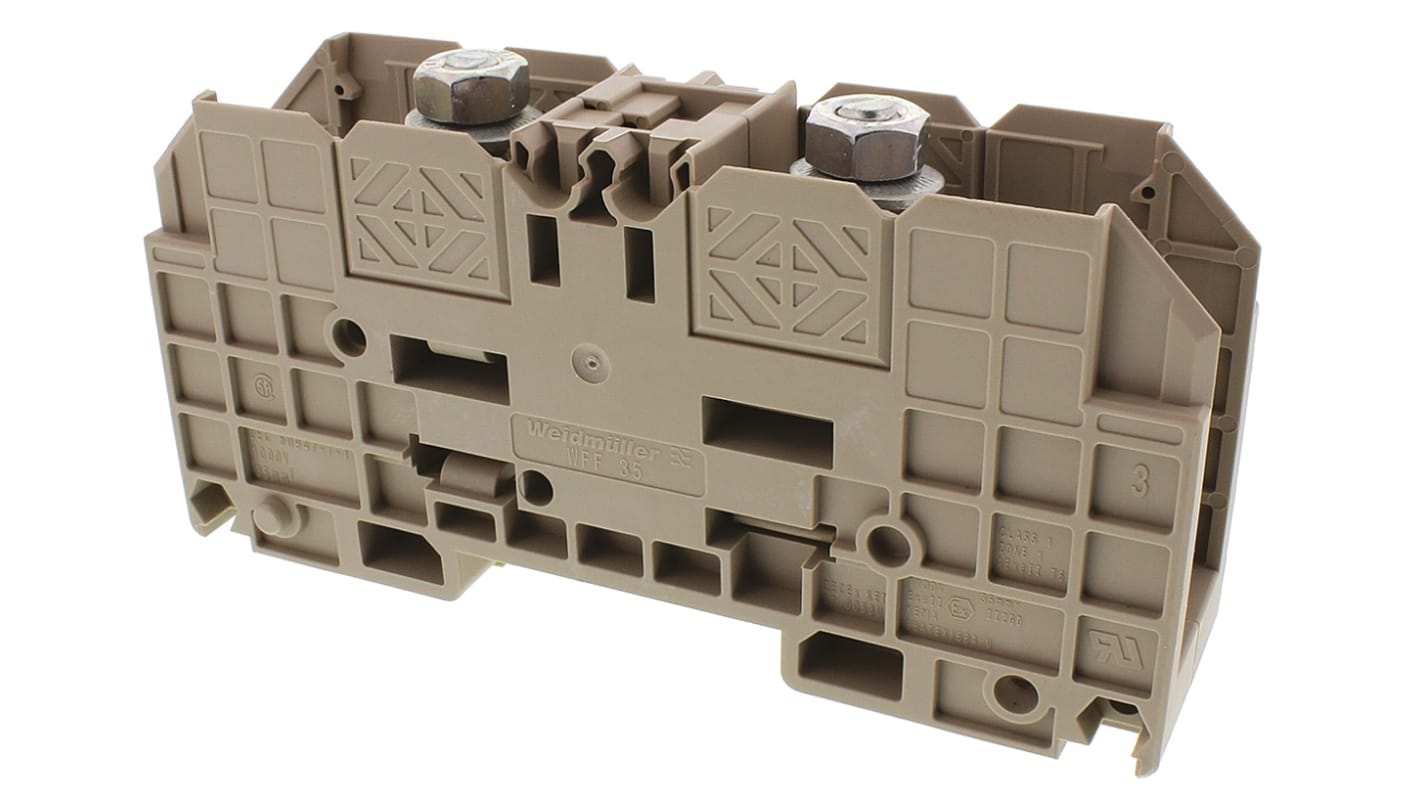

For a stable wire connection that stops current surges in their tracks, choose this stud terminal from Weidmuller. This single-level unit has two connections, so you'll find it's a cinch to set up a dual-wiring system. The threaded clamps keep a tight grip on your wires to prevent accidental disconnection and ensure reliable signal transmissions. It accepts wires ranging in size from 14 to 2AWG, so you'll have enough room for your thick and thin cables.

• Compact dimensions of 107 (H) x 27 (W) x 51mm (D) to add minimal bulk to your setup
• Current rating of 125A for use in high-power applications
• Wemid body has self-extinguishing properties to help prevent the spread of fire

• Telecommunications
• Office buildings
• Lighting control
• Food production

You can mount this terminal by simply snapping it to a DIN rail, so you won't need to reach for any special tools.

Thanks to its wide operating temperature range between -50°C and +120°C, this stud terminal can stand up to use in harsh environments.

CSA; UL

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
