- RS Stock No.:
- 458-7618
- Mfr. Part No.:
- 1772060000
- Brand:
- Weidmüller
340 In stock for delivery within 1 working days
Added
Price Each (In a Pack of 5)
£0.642
(exc. VAT)
£0.77
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 25 | £0.642 | £3.21 |
30 - 55 | £0.61 | £3.05 |
60 + | £0.584 | £2.92 |
*price indicative |
- RS Stock No.:
- 458-7618
- Mfr. Part No.:
- 1772060000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

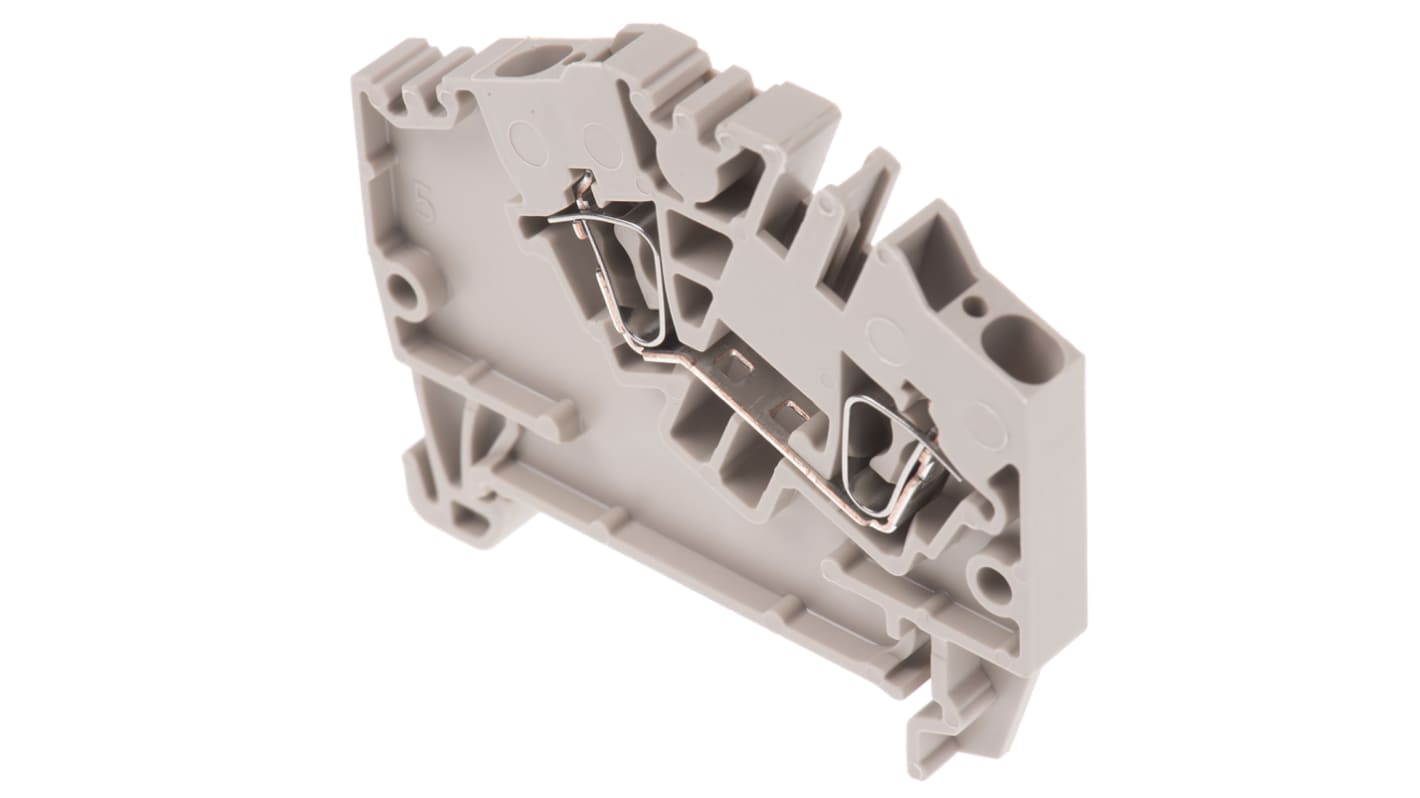

Weidmuller Feedthrough Terminal Blocks Z Series
Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
Features and Benefits
One, two, three and four tier available
Tension clamp technology
Available in different colours
Approvals
1-7
Specifications
Attribute | Value |
---|---|
Colour | Beige |
Number of Levels | Single |
American Wire Gauge | 26 → 12AWG |
Series | ZDU |
Termination Method | Clamp |
Cable CSA | 2.5mm² |
Current Rating | 24A |
Voltage Rating | 800 V |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
- RS Stock No.:
- 458-7618
- Mfr. Part No.:
- 1772060000
- Brand:
- Weidmüller
