Weidmuller 7910180000 WTR Series Brown, 4mm², Single-Level, Screw Termination
- RS Stock No.:
- 383-0129
- Mfr. Part No.:
- 7910180000
- Brand:
- Weidmüller
Subtotal (1 pack of 5 units)*
£15.82
(exc. VAT)
£18.985
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,005 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
- Plus 500 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £3.164 | £15.82 |
*price indicative
- RS Stock No.:
- 383-0129
- Mfr. Part No.:
- 7910180000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Brown | |
Number of Levels | Single | |
Voltage Rating | 400 V | |
Series | WTR | |
American Wire Gauge | 22 → 10AWG | |
Termination Method | Screw | |
Cable CSA | 4mm² | |
Current Rating | 32A | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +120°C | |
Standards Met | CE, RoHS | |
Model Number | WTR 4 | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Brown | ||
Number of Levels Single | ||
Voltage Rating 400 V | ||
Series WTR | ||
American Wire Gauge 22 → 10AWG | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
Current Rating 32A | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
Standards Met CE, RoHS | ||
Model Number WTR 4 | ||
- COO (Country of Origin):
- RO

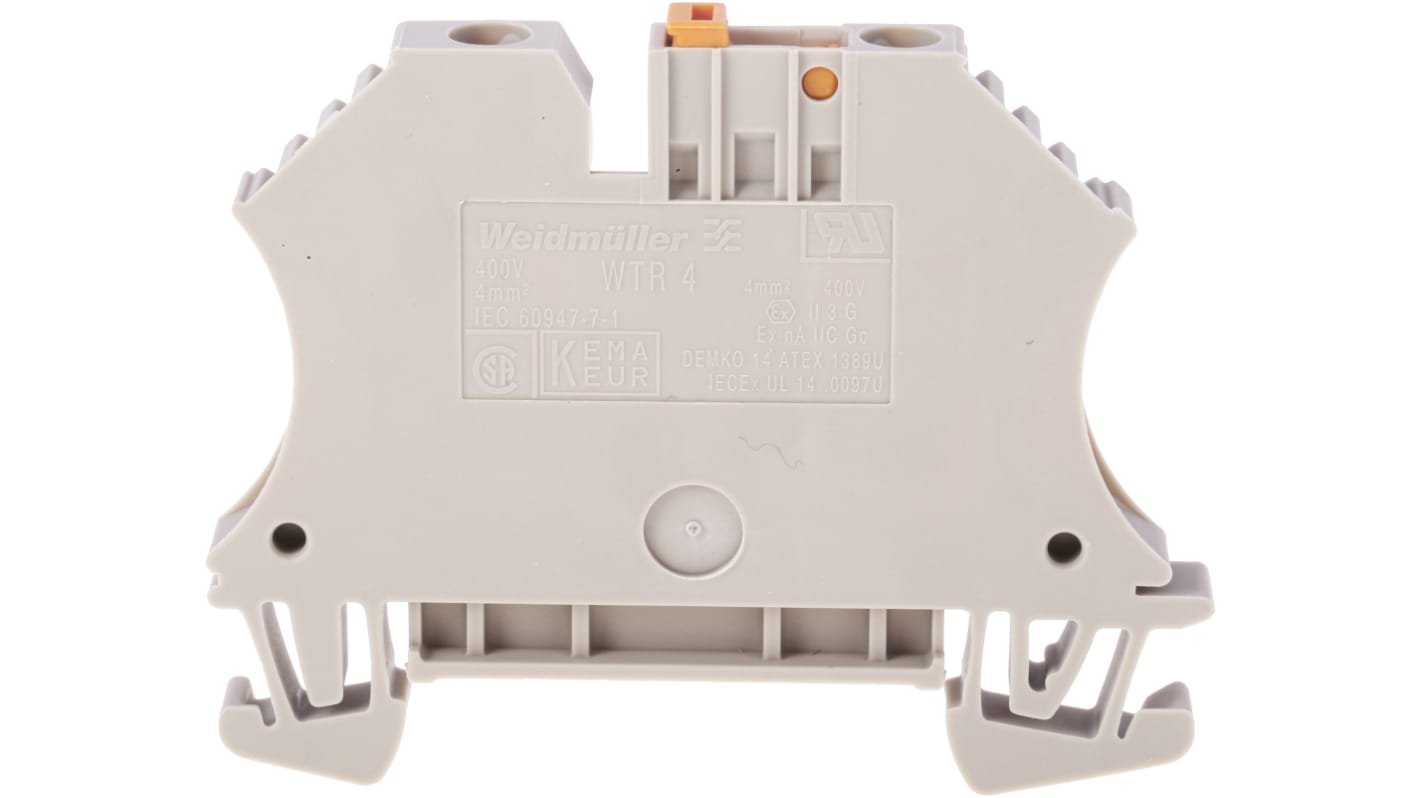

Weidmuller Disconnect Terminal Block, 32A Current Rating, Screw Connection Type - W Series - 7910180000
Safely spot-check your circuits with this disconnect terminal block from Weidmuller. Simply flip the orange lever to securely disconnect your circuit and carry out current tests. Screw terminals keep your wires clamped securely in place, while the tinned copper contacts are highly conductive and corrosion-resistant for a connection you can rely on. Thanks to the terminal's standard profile and a slot in the top, you have the option to use jumpers (829-8794). This means it's easy as can be to bridge multiple blocks. A current rating of 32A means this block can handle high-power industrial circuits.
Features & Benefits
• Wide operating temperature range between -50°C and +120°C for use in harsh conditions
• Snaps into place on a DIN rail for speedy installation
• Accepts wire sizes between 22 and 10AWG for versatility
• Snaps into place on a DIN rail for speedy installation
• Accepts wire sizes between 22 and 10AWG for versatility
Applications
• Engineering plants
• Industrial automation
• Oil and gas rigs
• Wood mills
• Industrial automation
• Oil and gas rigs
• Wood mills
How durable is this disconnect terminal block?
As its housing is made of Wemid, this disconnect terminal block is resistant to impact and wear. It's also flame-retardant for safety in the event of a fire.
Approvals
VDE
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
