Weidmuller 0294360000 AKZ Series Brown, 4mm², Single-Level, Screw Termination
- RS Stock No.:
- 823-342
- Distrelec Article No.:
- 304-02-290
- Mfr. Part No.:
- 0294360000
- Brand:
- Weidmüller
Subtotal (1 pack of 10 units)*
£11.45
(exc. VAT)
£13.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,310 unit(s) ready to ship
- Plus 880 unit(s) ready to ship from another location
- Plus 540 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £1.145 | £11.45 |
*price indicative
- RS Stock No.:
- 823-342
- Distrelec Article No.:
- 304-02-290
- Mfr. Part No.:
- 0294360000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Colour | Brown | |
Number of Levels | Single | |
Series | AKZ | |
Voltage Rating | 400 V | |
American Wire Gauge | 12AWG | |
Termination Method | Screw | |
Cable CSA | 4mm² | |
Current Rating | 41A | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +100°C | |
Standards Met | ATEX - SIRA, CE, CSA, EAC, IEC EX | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Colour Brown | ||
Number of Levels Single | ||
Series AKZ | ||
Voltage Rating 400 V | ||
American Wire Gauge 12AWG | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
Current Rating 41A | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +100°C | ||
Standards Met ATEX - SIRA, CE, CSA, EAC, IEC EX | ||
- COO (Country of Origin):
- RO

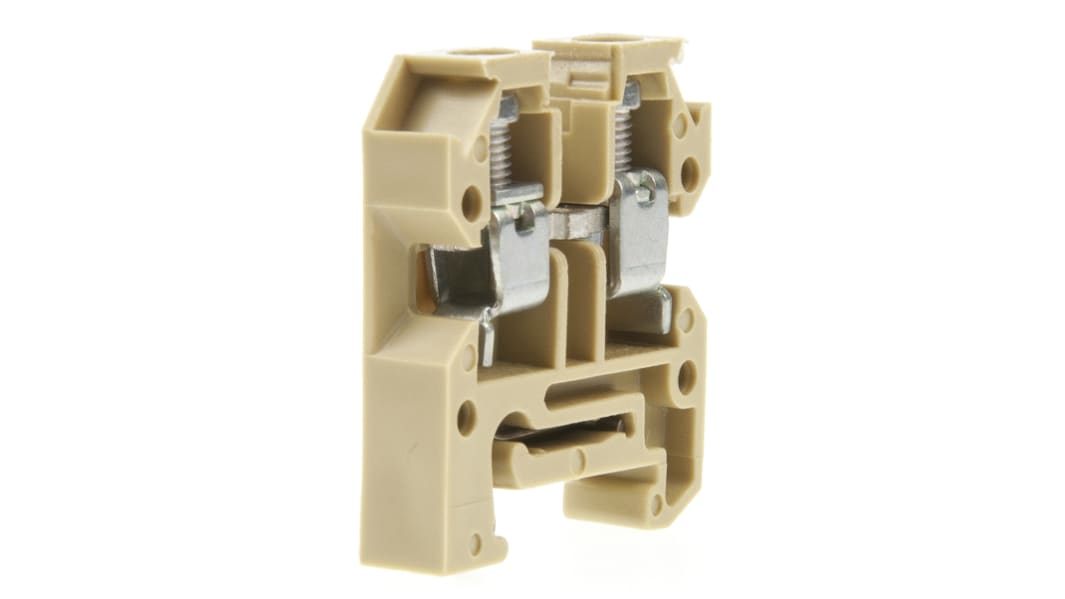

Weidmuller Standard DIN Rail Terminal, 400V Voltage Rating, 6.1mm Width - AKZ Series - 0294360000
When you're connecting circuits in hazardous environments, play it safe with this standard DIN rail terminal from Weidmuller. It's designed for use in explosive environments, so dust and gas don't pose a danger to this robust component. The rugged Wemid housing provides effective insulation and is flame-retardant, helping to protect both your personnel and equipment from hazards. Its screw terminals clamp conductors tightly, so you can be sure they won't work loose. This small but mighty package weighs just 5.4g, so it places only minimal strain on your equipment.
• Accepts solid or stranded wires for versatility
• Snap-on DIN rail mounting for swift, tool-free installation
• Wide operating temperature range between -60°C and +130°C for use in harsh conditions
• Snap-on DIN rail mounting for swift, tool-free installation
• Wide operating temperature range between -60°C and +130°C for use in harsh conditions
Applications
• Switchgear
• Control panels
• Distribution boards
• Control panels
• Distribution boards
Can I use an end plate with this standard DIN rail terminal?
Yes, you can use a cover plate (823-364) to protect the terminal against contaminants.
What's the voltage rating of this product?
This product has a voltage rating of 400V, so it's suitable for use in medium-power applications.
Approvals
1,2
AKZ Miniature Series
Approvals
(1) CSA certified, (2) UL recognised
