Modular two-tier terminal blocks can feed two potentials in one terminal. Both screw and plug-in version available.

• Compact length only 60 mm
• Pluggable cross connects saving time
• Flammability rating UL94V 0

Upper and lower tiers are electrically charged.

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

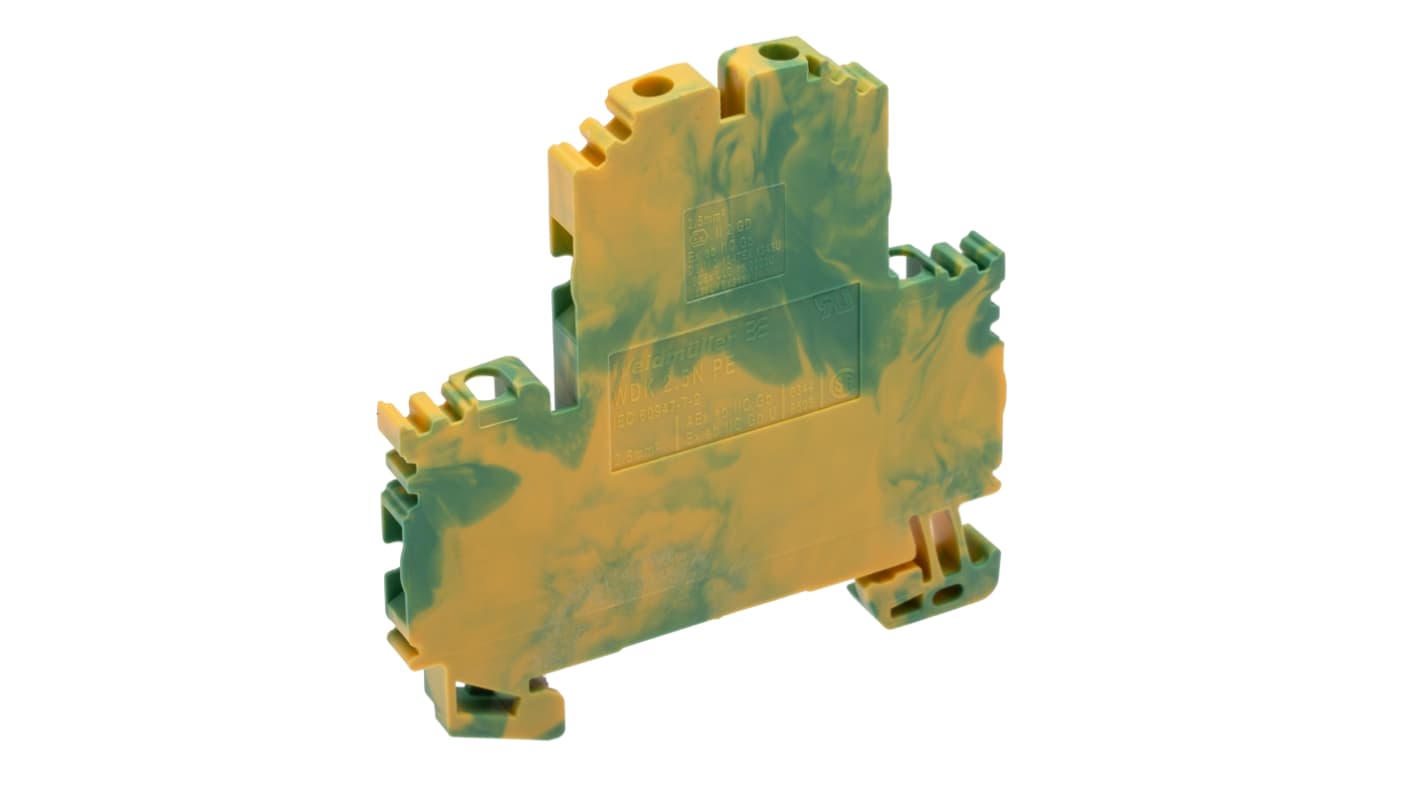

This PE terminal by Weidmüller is a reliable and essential component in electrical applications. With a capacity of 2.5 mm² cable CSA, this terminal from the WDK series is built to meet the highest industry standards.

• Double-level terminal design
• Screw termination method for secure connections
• ATEX certified for hazardous area use
• Green/yellow colour for easy identification
• Compliant with IEC 60947-7-2 standards

• Ideal for industrial automation systems
• Suitable for electrical control panels
• Can be used for use in hazardous environments

Yes, this PE terminal is suitable for industrial automation applications.

Yes, the screw termination method ensures reliable and secure connections.

Yes, this PE terminal meets IEC 60947-7-2 standards.

UL

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
