Siemens 8WH Series Orange Din Rail Terminal, 2.5mm², 2-Level, Plug-In Termination, CSA
- RS Stock No.:
- 271-3349
- Mfr. Part No.:
- 8WH6003-0DF04
- Brand:
- Siemens
Available to back order for despatch 31/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each (In a Pack of 50)
£4.08
(exc. VAT)
£4.90
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.08 | £204.00 |
*price indicative
- RS Stock No.:
- 271-3349
- Mfr. Part No.:
- 8WH6003-0DF04
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details

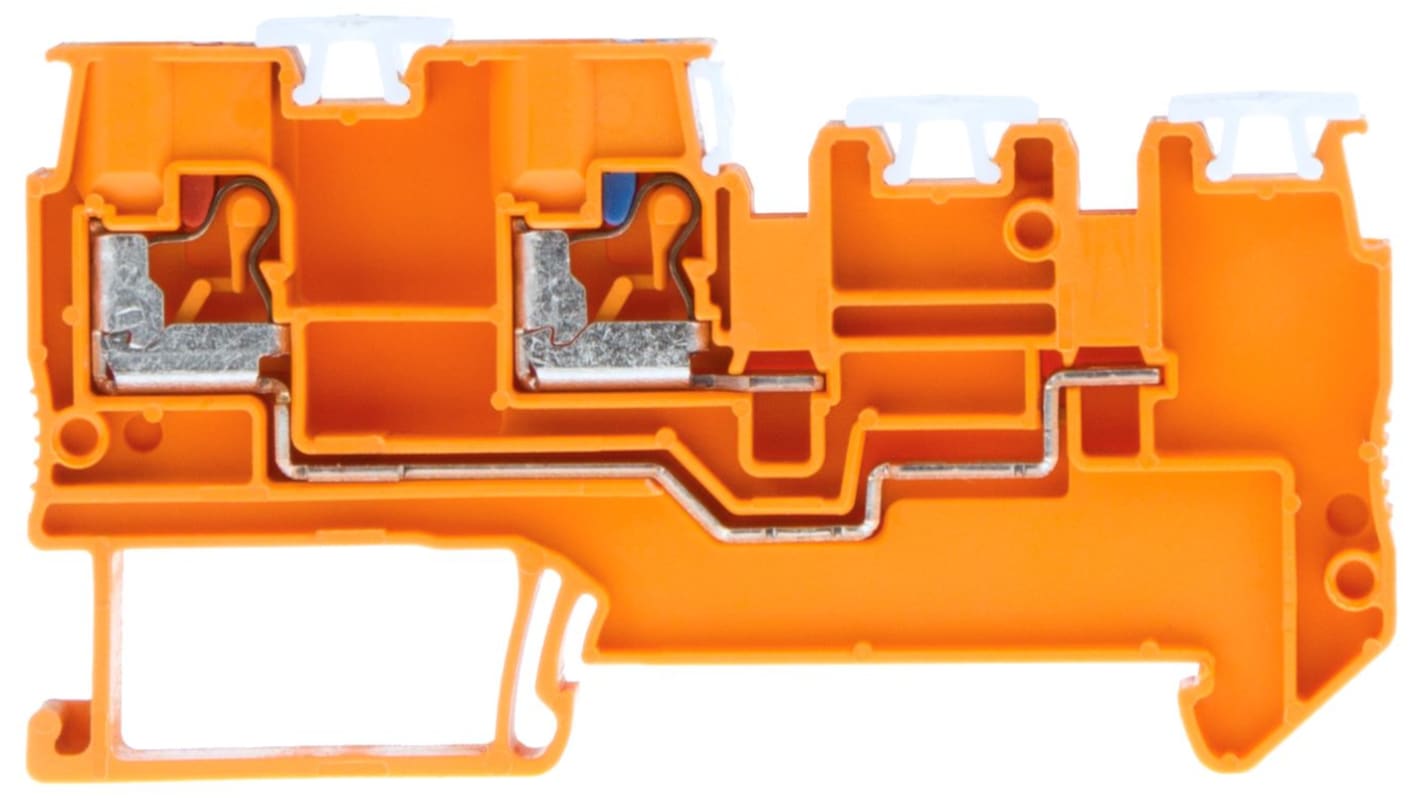

The Siemens Terminal Block is a orange colour DIN rail terminal block. This terminal block has 250 volt operating rated voltage and 20 A operating rated current. This terminal block offers terminal position at top side. This terminal block has 41.5 mm hei
Cross connectable
Thermoplastic insulating body
End cover plate is not required
CSA UR EAC and CE approved
V2 combustibility class according to UL 94
Thermoplastic insulating body
End cover plate is not required
CSA UR EAC and CE approved
V2 combustibility class according to UL 94
Specifications
Attribute | Value |
|---|---|
| Colour | Orange |
| Number of Levels | 2 |
| Series | 8WH |
| American Wire Gauge | 14AWG |
| Termination Method | Plug-In |
| Cable CSA | 2.5mm² |
| Fused | No |
| Voltage Rating | 250 V |
| Hazardous Area Certification | CSA |
