Siemens 8WH1020-0CF07 8WH Series Green, Yellow, 2.5mm², 2-Level, Screw Termination, CSA
- RS Stock No.:
- 271-3253
- Mfr. Part No.:
- 8WH1020-0CF07
- Brand:
- Siemens
Subtotal (1 pack of 50 units)*
£657.50
(exc. VAT)
£789.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 + | £13.15 | £657.50 |
*price indicative
- RS Stock No.:
- 271-3253
- Mfr. Part No.:
- 8WH1020-0CF07
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Colour | Green, Yellow | |
Number of Levels | 2 | |
American Wire Gauge | 14AWG | |
Series | 8WH | |
Termination Method | Screw | |
Cable CSA | 2.5mm² | |
Fused | No | |
Hazardous Area Certification | CSA | |
Select all | ||
---|---|---|
Brand Siemens | ||
Colour Green, Yellow | ||
Number of Levels 2 | ||
American Wire Gauge 14AWG | ||
Series 8WH | ||
Termination Method Screw | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Hazardous Area Certification CSA | ||
- COO (Country of Origin):
- DE

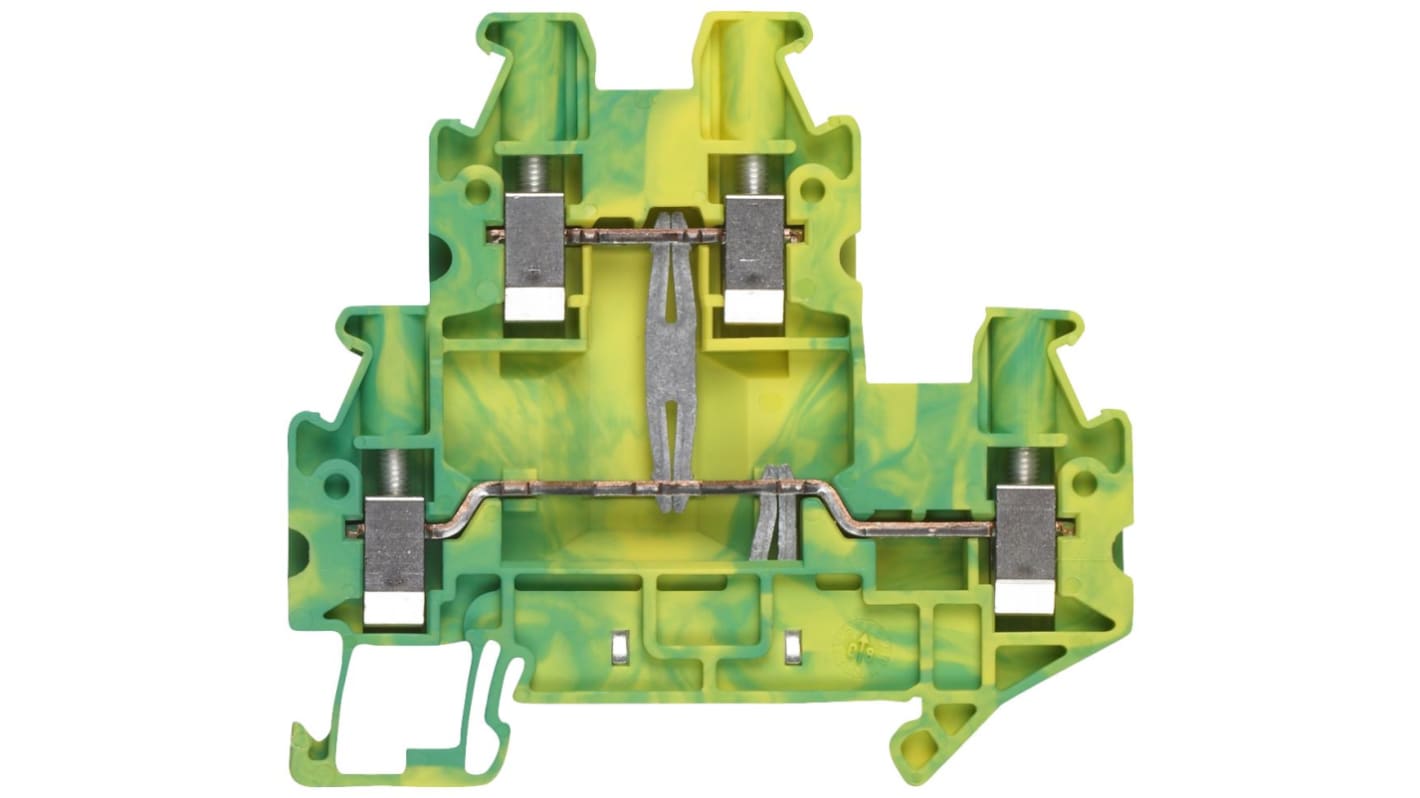

The Siemens Terminal Block is a green yellow colour DIN rail terminal block with two tier terminal. This terminal block has thermoplastic insulating material and terminal contact spacing is 5 mm with lateral position. This terminal block has 69.9 mm heigh
TH35 DIN rail mounting
End cover plate is required
CSA UR EAC and CE approved
V0 combustibility class according to UL 94
End cover plate is required
CSA UR EAC and CE approved
V0 combustibility class according to UL 94
