Siemens 8WH6001-4PF00 8WH Series Grey, 2.5mm², Plug-In Termination
- RS Stock No.:
- 271-3345
- Mfr. Part No.:
- 8WH6001-4PF00
- Brand:
- Siemens
Subtotal (1 pack of 50 units)*
£387.35
(exc. VAT)
£464.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 + | £7.747 | £387.35 |
*price indicative
- RS Stock No.:
- 271-3345
- Mfr. Part No.:
- 8WH6001-4PF00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Colour | Grey | |
Series | 8WH | |
American Wire Gauge | 14AWG | |
Termination Method | Plug-In | |
Cable CSA | 2.5mm² | |
Fused | No | |
Voltage Rating | 400 V | |
Select all | ||
---|---|---|
Brand Siemens | ||
Colour Grey | ||
Series 8WH | ||
American Wire Gauge 14AWG | ||
Termination Method Plug-In | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Voltage Rating 400 V | ||
- COO (Country of Origin):
- DE

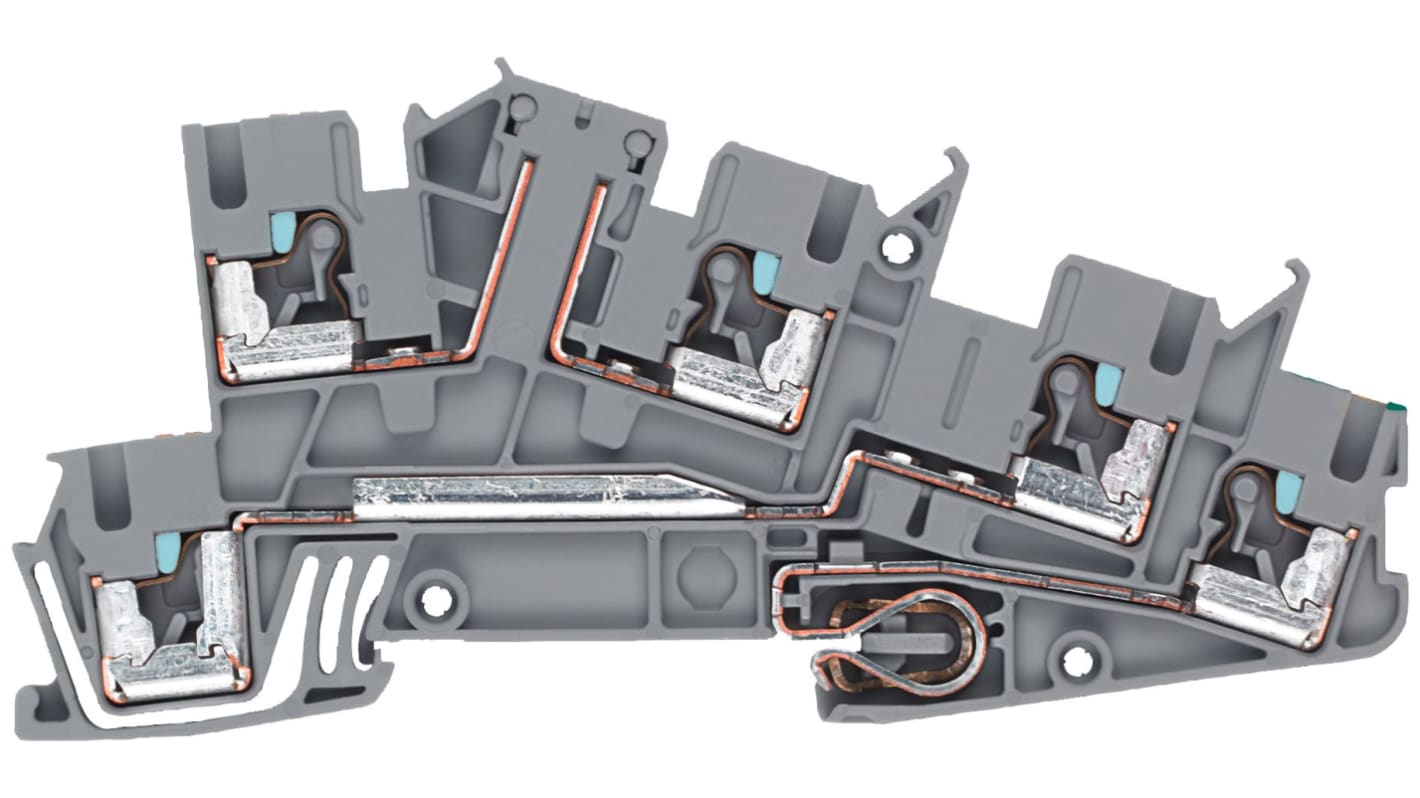

The Siemens Terminal Block is a grey colour DIN rail terminal block. This terminal block has 400 volt operating rated voltage and 24 A operating rated current. This terminal block offers terminal position at top side. This terminal block has 100.9 mm heig
Thermoplastic insulating body
End cover plate is required
UR EAC and CE approved
V0 combustibility class according to UL 94
End cover plate is required
UR EAC and CE approved
V0 combustibility class according to UL 94
