Phoenix Contact 3002076 UK 3-MVSTB-5 Series Grey, 2.5mm², 1-Level, Screw Termination
- RS Stock No.:
- 241-6144
- Mfr. Part No.:
- 3002076
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£103.25
(exc. VAT)
£123.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 999,999,900 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 + | £2.065 | £103.25 |
*price indicative
- RS Stock No.:
- 241-6144
- Mfr. Part No.:
- 3002076
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | 1 | |
Series | UK 3-MVSTB-5 | |
Voltage Rating | 250 V | |
Termination Method | Screw | |
Cable CSA | 2.5mm² | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels 1 | ||
Series UK 3-MVSTB-5 | ||
Voltage Rating 250 V | ||
Termination Method Screw | ||
Cable CSA 2.5mm² | ||
- COO (Country of Origin):
- TR

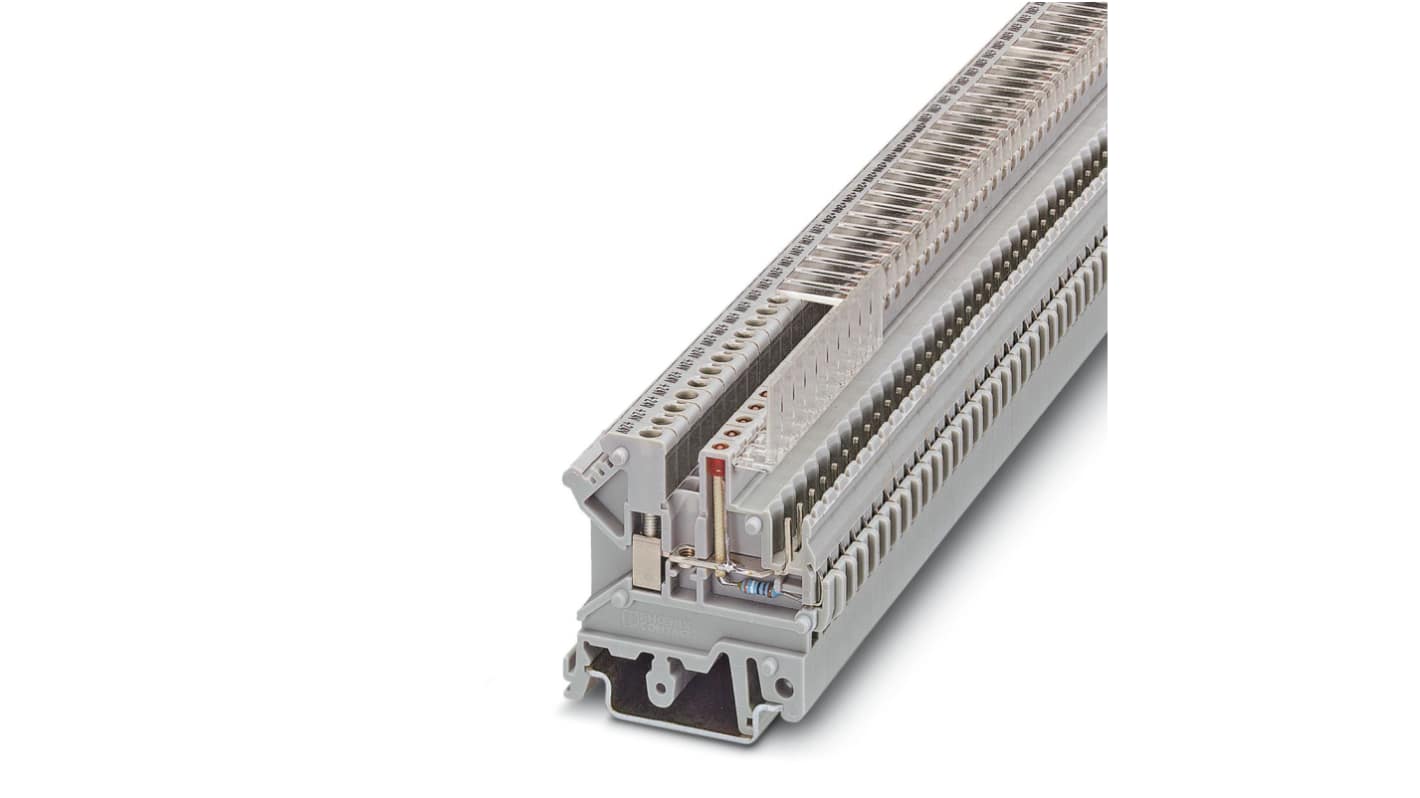

The Phoenix Contact's feed-through terminal block has nominal voltage of 250 V and nominal current of 12 A. Screw/plug-in connection method and NS 32, NS 35/15, NS 35/7,5 mounting.
Number of rows 1
Number of connections 2
Nominal cross section 2.5 mm²
Colour grey
Insulating material PA
Stripping length 8 mm
Internal cylindrical gage A3
Screw thread M3
Tightening torque, min 0.5 Nm
Tightening torque max 0.6 Nm
Number of connections 2
Nominal cross section 2.5 mm²
Colour grey
Insulating material PA
Stripping length 8 mm
Internal cylindrical gage A3
Screw thread M3
Tightening torque, min 0.5 Nm
Tightening torque max 0.6 Nm
