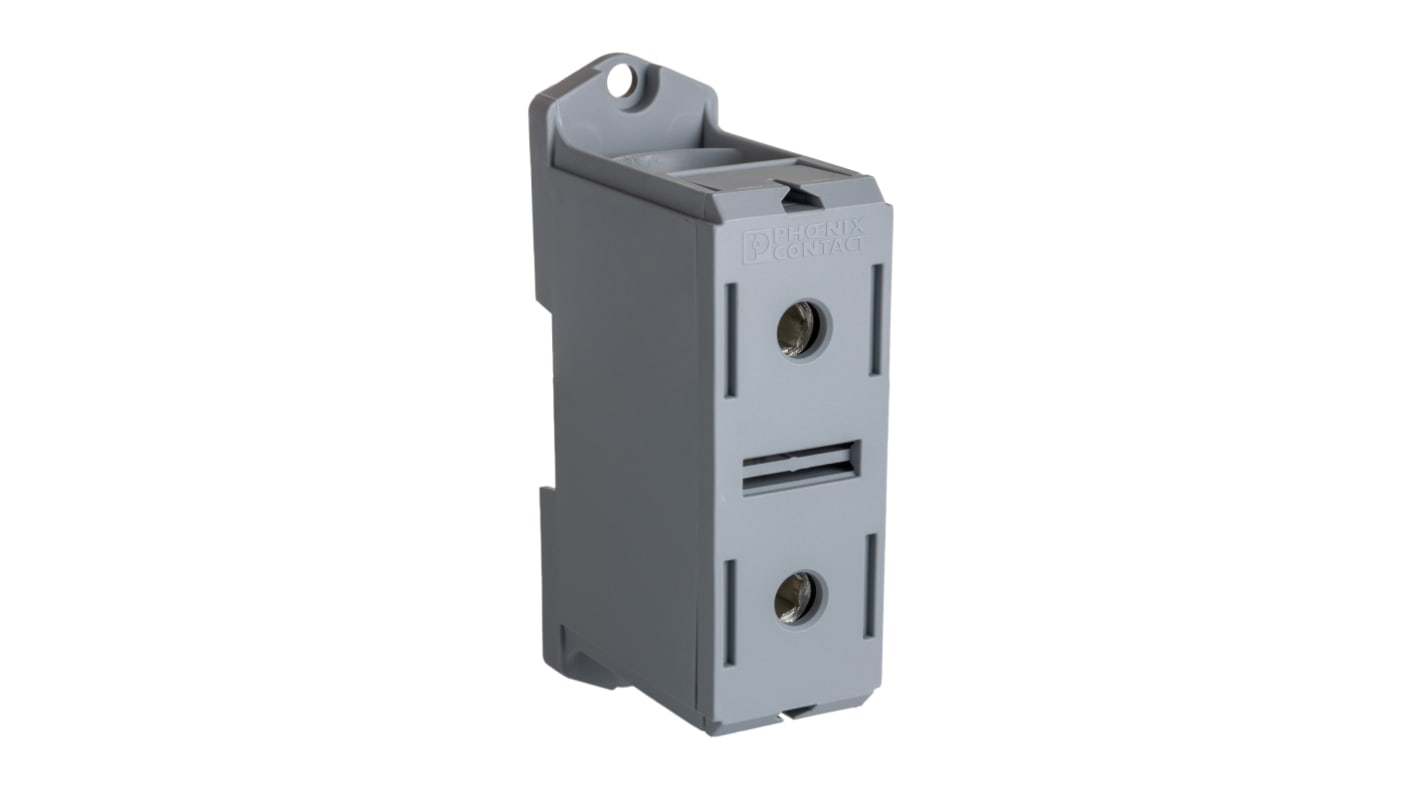

Phoenix Contact 1086505 UBAL 240 Series Grey, 35mm², Single-Level, Screw Termination
- RS Stock No.:
- 239-5077
- Mfr. Part No.:
- 1086505
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£141.85
(exc. VAT)
£170.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £28.37 | £141.85 |
*price indicative
- RS Stock No.:
- 239-5077
- Mfr. Part No.:
- 1086505
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Single | |
| Voltage Rating | 1 kV | |
| Series | UBAL 240 | |
| American Wire Gauge | 3AWG | |
| Termination Method | Screw | |
| Cable CSA | 35mm² | |
| Fused | No | |
| Current Rating | 290A | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
Voltage Rating 1 kV | ||
Series UBAL 240 | ||
American Wire Gauge 3AWG | ||
Termination Method Screw | ||
Cable CSA 35mm² | ||
Fused No | ||
Current Rating 290A | ||
- COO (Country of Origin):
- EE
Phoenix Contact UBAL 240 Series High Current Connector, 35mm² Cable CSA, 290A Current Rating - 1086505
This high current connector is suitable for various electrical applications, enabling reliable interconnection of aluminium and copper conductors. Its sturdy construction and screw termination method provide secure connectivity under high stress, making it ideal for industrial settings. It serves effectively in automation systems and electrical distribution, offering performance and versatility.
Features & Benefits
• Compatible with aluminium and copper wire connections
• Supports currents up to 380A for demanding applications
• Rated for voltages up to 1kV for high voltage use
• Durable housing made from fibreglass-reinforced polyamide
• Maintenance-free connections for added convenience
• Supports currents up to 380A for demanding applications
• Rated for voltages up to 1kV for high voltage use
• Durable housing made from fibreglass-reinforced polyamide
• Maintenance-free connections for added convenience
Applications
• Suitable for power distribution setups
• Designed for environments requiring high voltage connections
• Utilised in heavy machinery and equipment
• Designed for environments requiring high voltage connections
• Utilised in heavy machinery and equipment
What type of wires can I connect to it?
You can connect both aluminium and copper conductors for versatility.
How it can be properly install this connector?
Follow installation guidelines regarding stripping length and torque specifications for optimal performance.
What is the maximum operating temperature for this connector?
It functions effectively within a temperature range of -60 to 110°C.
Can it be used in outdoor applications?
While it is designed for durability, consider environmental factors that may affect performance.
