Phoenix Contact 3211019 PT 2.5/S-QUATTRO Series Grey, 4-Level, Push In Termination
- RS Stock No.:
- 123-7993
- Distrelec Article No.:
- 303-96-923
- Mfr. Part No.:
- 3211019
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£6.66
(exc. VAT)
£7.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
- Plus 725 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £1.332 | £6.66 |
*price indicative
- RS Stock No.:
- 123-7993
- Distrelec Article No.:
- 303-96-923
- Mfr. Part No.:
- 3211019
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | 4 | |
Series | PT 2.5/S-QUATTRO | |
American Wire Gauge | 26 → 12AWG | |
Voltage Rating | 500 V | |
Termination Method | Push In | |
Current Rating | 17.5A | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +60°C | |
Standards Met | EAC | |
Model Number | PT 2,5/S-QUATTRO | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels 4 | ||
Series PT 2.5/S-QUATTRO | ||
American Wire Gauge 26 → 12AWG | ||
Voltage Rating 500 V | ||
Termination Method Push In | ||
Current Rating 17.5A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Standards Met EAC | ||
Model Number PT 2,5/S-QUATTRO | ||
- COO (Country of Origin):
- CN

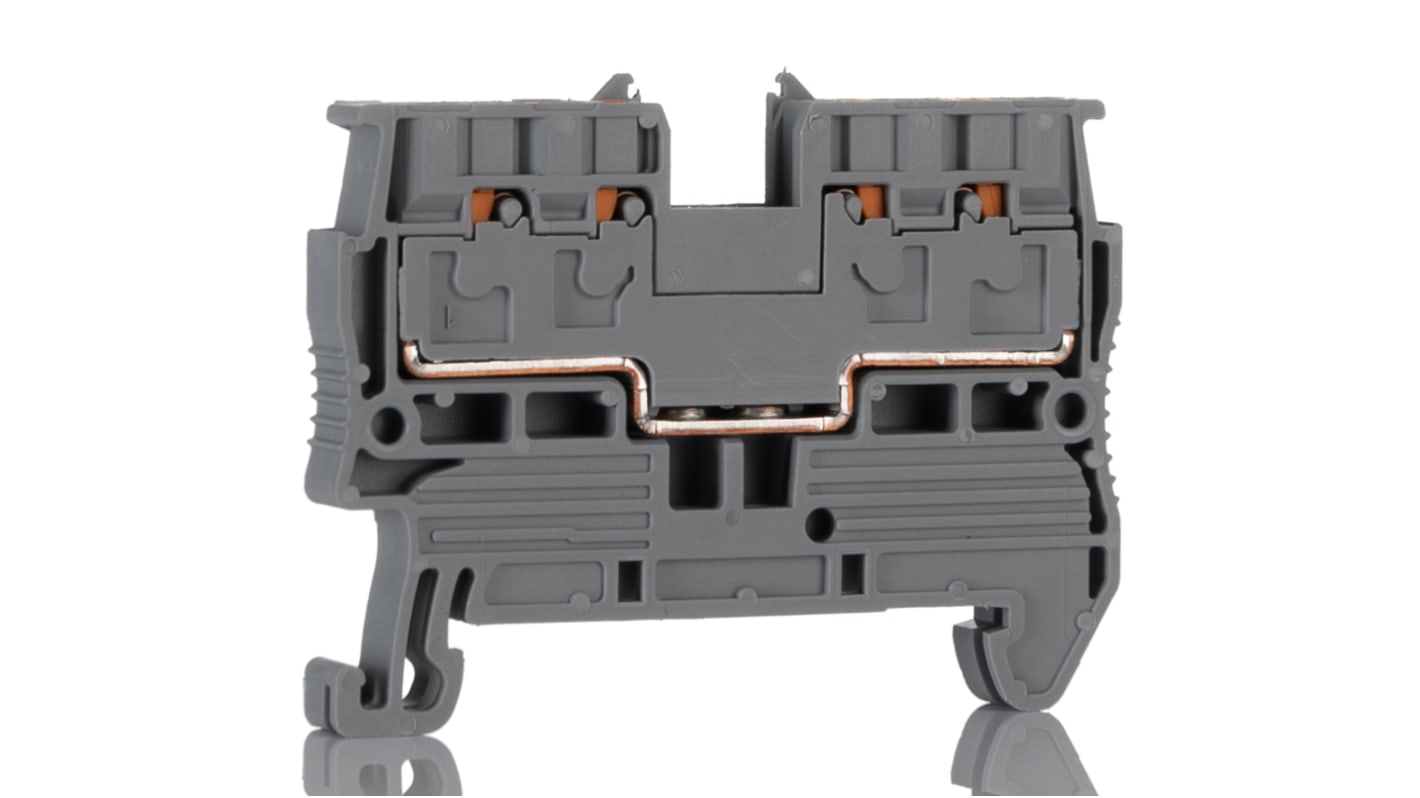

Phoenix Contact Feed-Through Terminal Block, PA Insulation, 6kV Rated Surge Voltage - PT 2,5/S-QUATTRO - 3211019
Set your sights on safety when linking cables to your circuit with this feed-through terminal block from Phoenix Contact. Its four-contact configuration gives you multi-component control over your system and reduces your wiring needs to ensure a neat setup. Thanks to its modular design and open side panel, this piece pairs easily with other terminal blocks in your enclosure. You don't need to dig into your toolbox to connect wires to it, as push-in termination makes installation hassle-free.
Sturdy PA housing does double duty by providing impact resistance and insulation. This means it's safe to use the block in harsh environments, such as the automotive industry. With compact dimensions of 48.6 (H) x 5.2 (W) x 35.3mm (D), it's a space-efficient choice for busy setups. It handles up to 6kV of surge voltage without breaking a sweat, so you can rely on its performance in networks prone to power spikes.
Sturdy PA housing does double duty by providing impact resistance and insulation. This means it's safe to use the block in harsh environments, such as the automotive industry. With compact dimensions of 48.6 (H) x 5.2 (W) x 35.3mm (D), it's a space-efficient choice for busy setups. It handles up to 6kV of surge voltage without breaking a sweat, so you can rely on its performance in networks prone to power spikes.
Features & Benefits
• RoHS certified to show it contains only trace amounts of hazardous substances
• Current rating of 17.5A makes it suitable fit for medium-duty applications
• Accommodates wire sizes ranging from 26 to 12AWG for versatility
• Current rating of 17.5A makes it suitable fit for medium-duty applications
• Accommodates wire sizes ranging from 26 to 12AWG for versatility
PT Series
