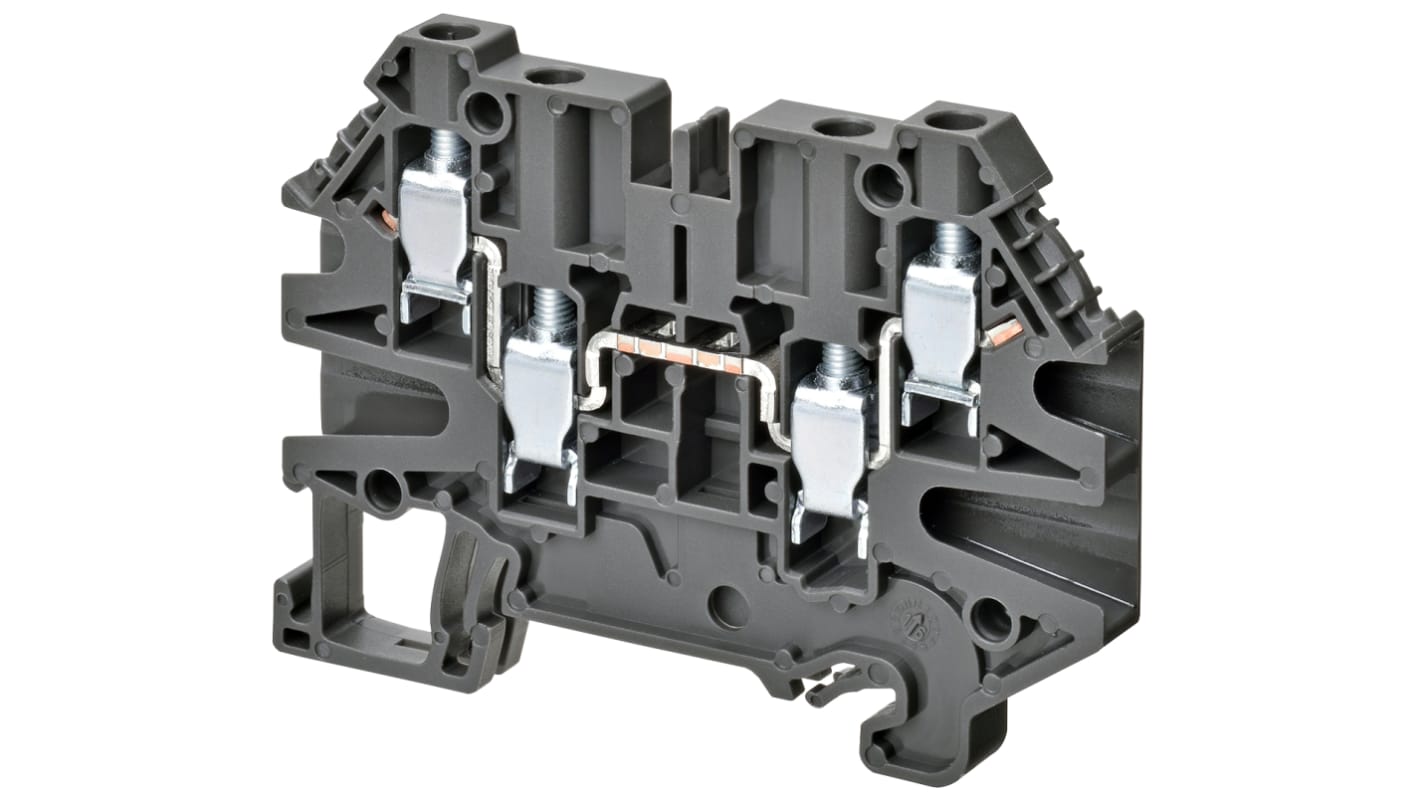

Omron XW5TS40221 XW5T Series DIN Rail Terminal Block Grey, 4mm², 1-Level, Screw
- RS Stock No.:
- 123-7900
- Mfr. Part No.:
- XW5TS40221
- Brand:
- Omron
Subtotal (1 pack of 10 units)*
£17.37
(exc. VAT)
£20.84
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Plus 120 unit(s) shipping from 09 November 2026
- Final 10 unit(s) shipping from 16 November 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.737 | £17.37 |
*price indicative
- RS Stock No.:
- 123-7900
- Mfr. Part No.:
- XW5TS40221
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Colour | Grey | |
| Product Type | DIN Rail Terminal Block | |
| Sub Type | Feed Through | |
| Number of Levels | 1 | |
| Series | XW5T | |
| Voltage | 500V | |
| Minimum Wire Size AWG | 20AWG | |
| Cable CSA | 4mm² | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Minimum Operating Temperature | -40°C | |
| Terminal Block Current | 32A | |
| Termination Type | Screw | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL, IEC60947-7-1, CSA | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Colour Grey | ||
Product Type DIN Rail Terminal Block | ||
Sub Type Feed Through | ||
Number of Levels 1 | ||
Series XW5T | ||
Voltage 500V | ||
Minimum Wire Size AWG 20AWG | ||
Cable CSA 4mm² | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Minimum Operating Temperature -40°C | ||
Terminal Block Current 32A | ||
Termination Type Screw | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL, IEC60947-7-1, CSA | ||
DIN Rail Screw Terminal- XW5T-S & XW5G-S Series
DIN Rail grounding terminal blocks are a great solution for space saving and downsizing in control panels, due to their compact size of 3.5 mm width. The XW5G series terminal blocks are easy to install and wires are held firmly and securely in place.
Features and Benefits
• Slim 3.5 mm width
• Wires held with screws
• Light insertion force and strong holding strength for less wiring work and high reliability
• Hands-free structure that holds an inserted screwdriver to achieve easier wiring in comparison to attaching crimp terminals
• 1 or 2 tier models available
DIN Rail Terminal Blocks
