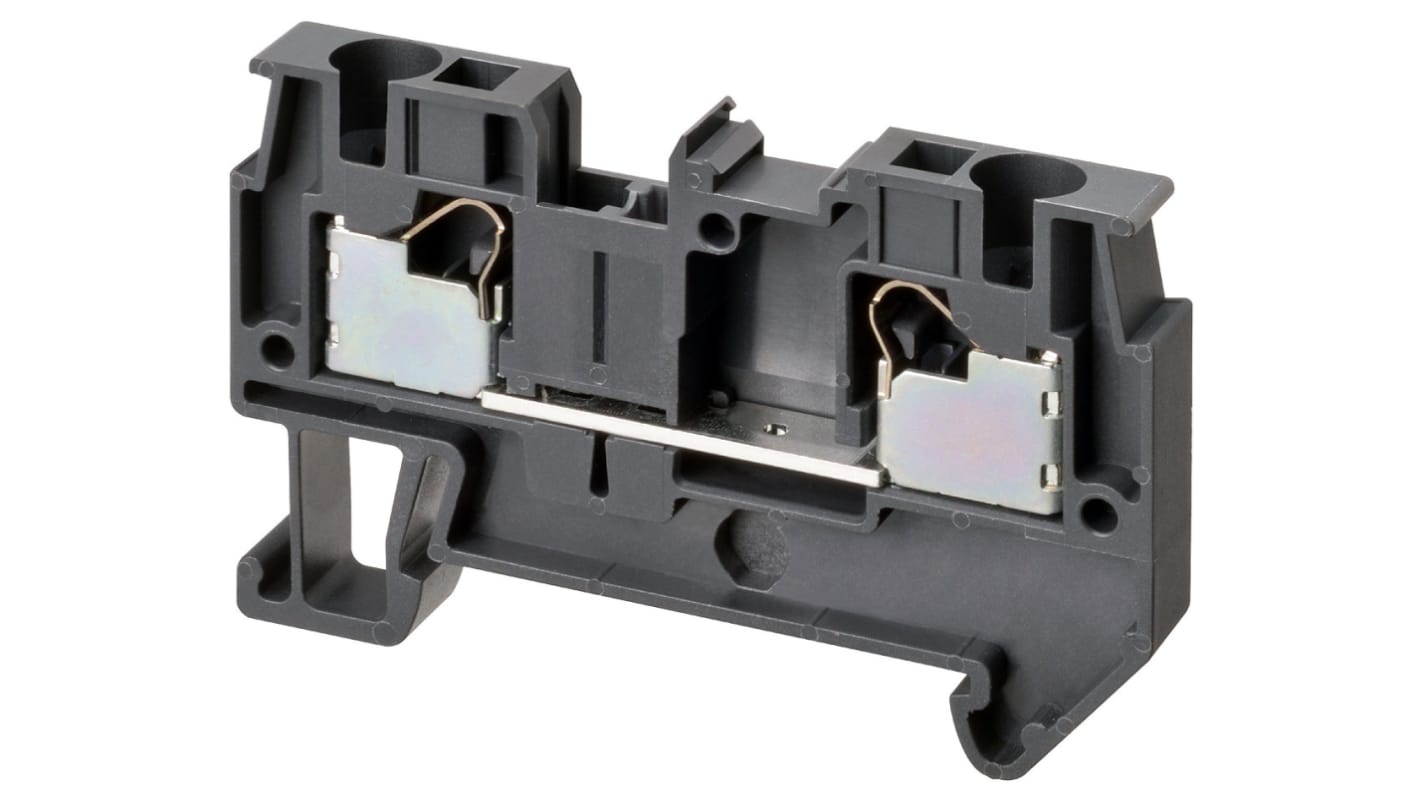

Omron XW5T-P4.0-1.1-1 XW5T Series Non-Fuse DIN Rail Terminal Grey, 4mm², 1-Level, Push-in
- RS Stock No.:
- 123-7882
- Mfr. Part No.:
- XW5T-P4.0-1.1-1
- Brand:
- Omron
Subtotal (1 pack of 10 units)*
£20.30
(exc. VAT)
£24.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £2.03 | £20.30 |
*price indicative
- RS Stock No.:
- 123-7882
- Mfr. Part No.:
- XW5T-P4.0-1.1-1
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Non-Fuse DIN Rail Terminal | |
| Colour | Grey | |
| Sub Type | Feed Through | |
| Number of Levels | 1 | |
| Voltage | 800V | |
| Series | XW5T | |
| Cable CSA | 4mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Fused | No | |
| Minimum Operating Temperature | -40°C | |
| Terminal Block Current | 32A | |
| Termination Type | Push-in | |
| Hazardous Area Certification | NO | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL, IEC 60947-7-2, IEC | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Non-Fuse DIN Rail Terminal | ||
Colour Grey | ||
Sub Type Feed Through | ||
Number of Levels 1 | ||
Voltage 800V | ||
Series XW5T | ||
Cable CSA 4mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 10AWG | ||
Fused No | ||
Minimum Operating Temperature -40°C | ||
Terminal Block Current 32A | ||
Termination Type Push-in | ||
Hazardous Area Certification NO | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL, IEC 60947-7-2, IEC | ||
- COO (Country of Origin):
- CN
DIN Rail Push-in Terminals- XW5T-P & XW5G-P Series
DIN Rail grounding terminal blocks are a great solution for space saving and downsizing in control panels, due to their compact size of 3.5 mm width. Push in feature saves wiring work as no tools are required for the simple insertion of wires. The XW5T series terminal blocks are easy to install and wires are held firmly and securely in place.
Features and Benefits
• Push in feature is more compact than traditional screw terminals
• No loosening for maintenance free application
• Slim 3.5 mm width
• Light insertion force and strong holding strength for less wiring work and high reliability
• Hands-free structure that holds an inserted screwdriver to achieve easier wiring in comparison to attaching crimp terminals
• 1 or 2 tier models available
DIN Rail Terminal Blocks
