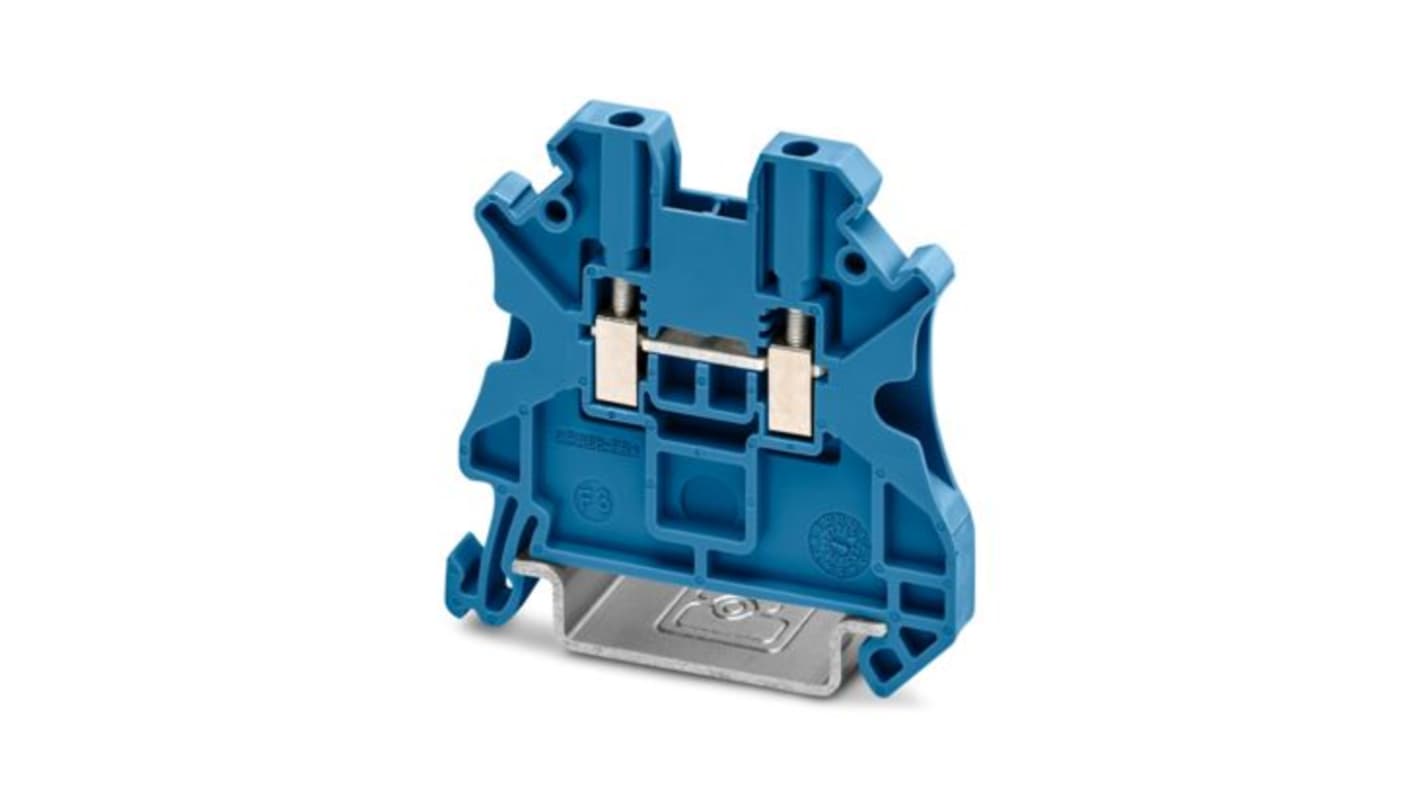

Phoenix Contact 1452264 Feed Through Terminal Block Blue, 1.5mm², 1-Level, Screw, ATEX, IECEx, IECEx KEM 06.0027 U, KEMA
- RS Stock No.:
- 566-183
- Mfr. Part No.:
- 1452264
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£33.42
(exc. VAT)
£40.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £33.42 | £0.668 |
*price indicative
- RS Stock No.:
- 566-183
- Mfr. Part No.:
- 1452264
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Feed Through Terminal Block | |
| Colour | Blue | |
| Number of Levels | 1 | |
| Voltage | 1000V | |
| Cable CSA | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Pitch | 4.15mm | |
| Termination Type | Screw | |
| Terminal Block Current | 17.5A | |
| Minimum Operating Temperature | 60°C | |
| Hazardous Area Certification | ATEX, IECEx, IECEx KEM 06.0027 U, KEMA | |
| Maximum Operating Temperature | 110°C | |
| Standards/Approvals | ATEX, CCC, CCSAUS, cULus Recognised, DNV, IECEX | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Feed Through Terminal Block | ||
Colour Blue | ||
Number of Levels 1 | ||
Voltage 1000V | ||
Cable CSA 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Pitch 4.15mm | ||
Termination Type Screw | ||
Terminal Block Current 17.5A | ||
Minimum Operating Temperature 60°C | ||
Hazardous Area Certification ATEX, IECEx, IECEx KEM 06.0027 U, KEMA | ||
Maximum Operating Temperature 110°C | ||
Standards/Approvals ATEX, CCC, CCSAUS, cULus Recognised, DNV, IECEX | ||
- COO (Country of Origin):
- IN
The Phoenix Contact feed-through terminal block is expertly designed for superior connectivity and robust performance in industrial applications. This innovative terminal block features a compact form factor, allowing for efficient use of space whilst ensuring reliable connections. With its dual connection capability and the capacity to handle a nominal voltage of 1000 V, it is versatile enough to meet the demands of various industries including railway, machine building, and process engineering.
Effective heat dissipation maintains performance under high loads
Tested for application in railway environments ensuring durability
Colour coded design simplifies organisation and identification during installation
