Weidmuller WAP Series End Cover for Use with DIN Rail Terminal Blocks
- RS Stock No.:
- 491-5782
- Mfr. Part No.:
- 1050040000
- Brand:
- Weidmüller
Subtotal (1 pack of 5 units)*
£1.66
(exc. VAT)
£1.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 875 unit(s) ready to ship
- Plus 135 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £0.332 | £1.66 |
*price indicative
- RS Stock No.:
- 491-5782
- Mfr. Part No.:
- 1050040000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Accessory Type | End Cover | |
Series | WAP | |
For Use With | DIN Rail Terminal Blocks | |
Mounting Type | Direct Mounting | |
Colour | Red | |
Material | Wemid | |
Contact Dimensions | 56 x 1.5mm | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Accessory Type End Cover | ||
Series WAP | ||
For Use With DIN Rail Terminal Blocks | ||
Mounting Type Direct Mounting | ||
Colour Red | ||
Material Wemid | ||
Contact Dimensions 56 x 1.5mm | ||
Weidmuller Series W End Plate, For use with DIN Rail Terminal Blocks - 1050040000

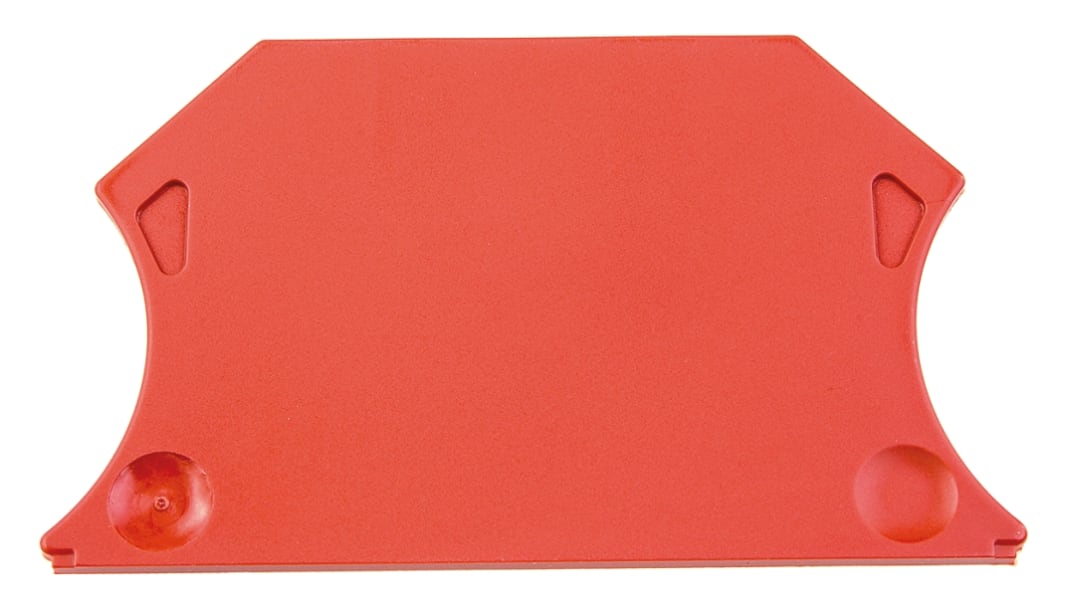

This end plate is a part of the WAP series, designed for DIN rail terminal blocks to provide protection and functionality. Constructed from Wemid material, the plate is meant for direct mounting on the open side of the final modular terminal, upholding the terminal's rated voltage. Measuring 56mm in height and 1.5mm in width, this red end cover prevents accidental contact with live parts, enhancing safety.
Features & Benefits
• Made from flame-retardant Wemid material
• Compact dimensions fit standard DIN rail setups
• Compact dimensions fit standard DIN rail setups
Applications
• Used for securing the last modular terminal
• Utilised in high-voltage applications
• Ideal for automation and electrical installations
• Utilised in high-voltage applications
• Ideal for automation and electrical installations
Can it withstand extreme temperatures?
Yes, it operates between -60°C to 130°C.
Will it protect against accidental contact?
Yes, it ensures finger-proof safety for terminals.
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
