’W’ Series Terminal Blocks

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Features and Benefits:

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Product Application Information

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

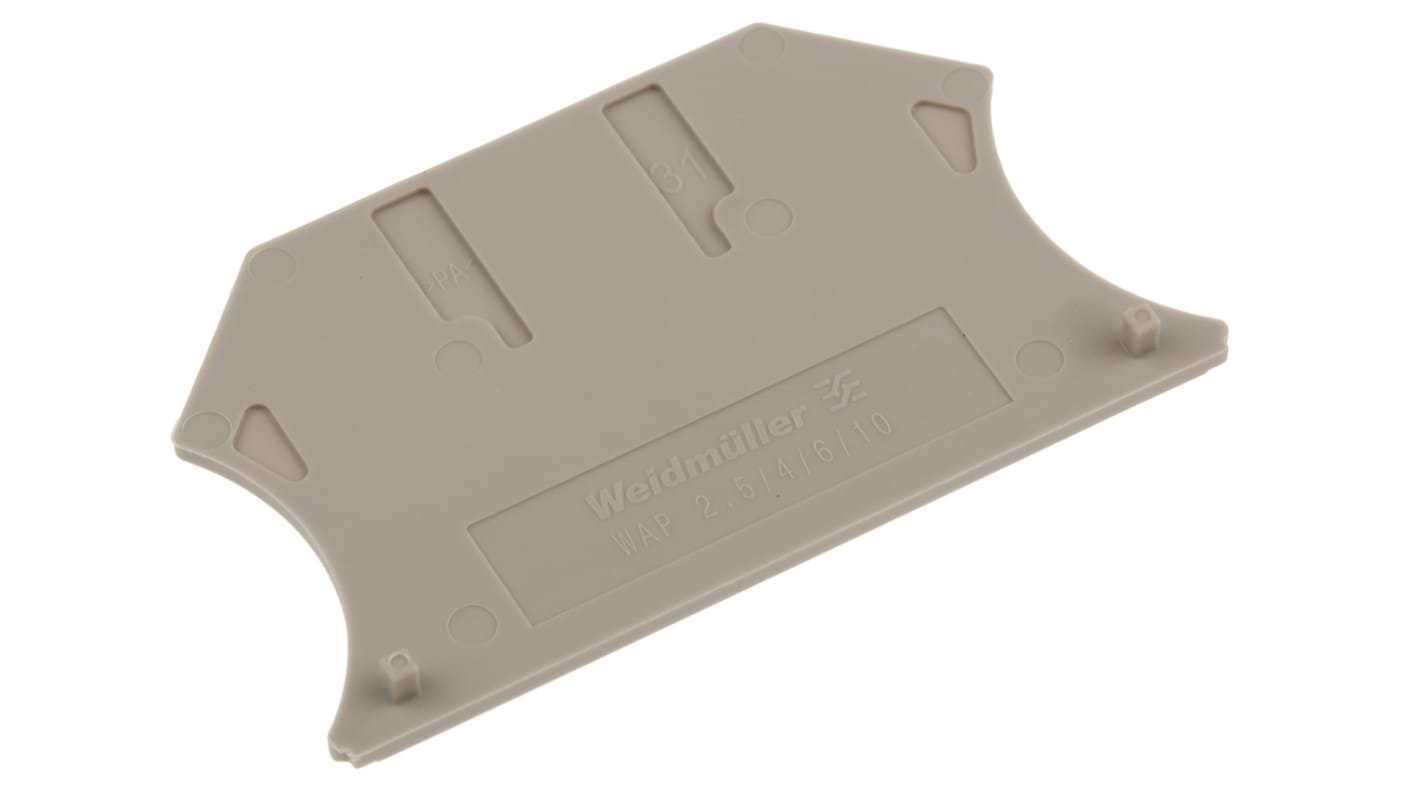

Weidmuller End Plate, For Use With DIN Rail Terminal Blocks, 56mm Length - W Series - 1050000000

Use this end plate from Weidmuller to help secure your terminal block assemblies firmly to a DIN rail. It's designed for use with components from the W series for ease of assembly. The plate prevents your blocks from sliding along the mounting rail and also acts as a cover to protect them against dust and moisture for durability. Thanks to its high-performance Wemid construction, you can trust it provides strength and resistance to impact and wear. A wide operating temperature range between -50°C and +120°C means it's suitable for use in harsh environments.

Features & Benefits

• Modular concept with direct mounting for fast installation onto DIN rail terminal block modules
• Safe for use in explosive atmospheres for increased safety
• Supplied in a pack of five for use in multiple applications

Applications

• Power distribution
• Telecommunications
• Instrument transformer blocks
• Building management

How does this product behave in the event of a fire?

This end plate will stop burning in under 10 seconds for safety in the event of a fire.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Select all	Attribute	Value
	Brand	Weidmüller
	Accessory Type	End Cover
	Series	W
	For Use With	DIN Rail Terminal Blocks
	Hazardous Area Certification	ATEX

	Select all
	Brand Weidmüller
	Accessory Type End Cover
	Series W
	For Use With DIN Rail Terminal Blocks
	Hazardous Area Certification ATEX

Weidmuller W Series End Cover for Use with DIN Rail Terminal Blocks, ATEX
