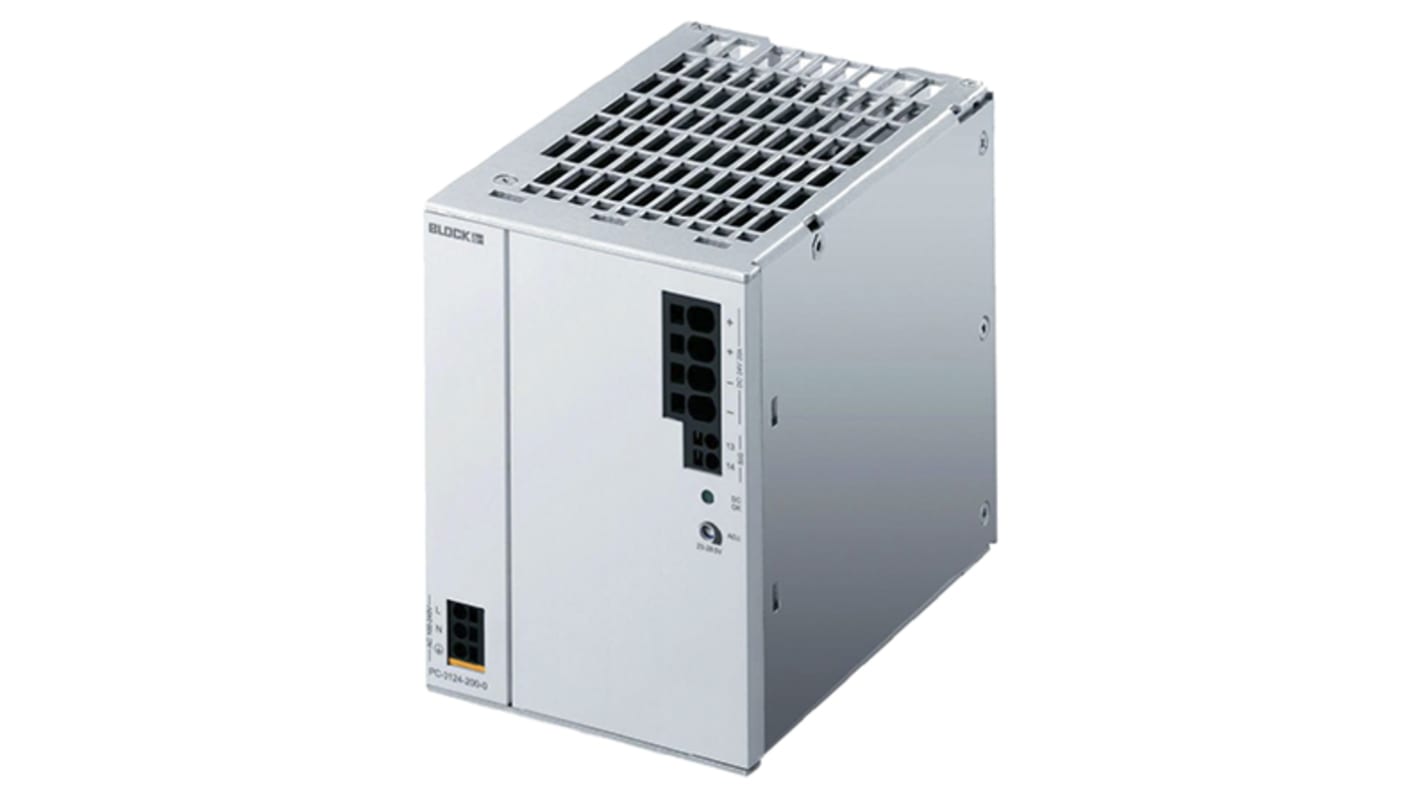

Block PC Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 120 → 373V dc ac, dc Input, 24V dc dc
- RS Stock No.:
- 893-7868
- Distrelec Article No.:
- 303-82-914
- Mfr. Part No.:
- PC-0124-200-0
- Brand:
- Block
Subtotal (1 unit)*
£368.55
(exc. VAT)
£442.26
(inc. VAT)
FREE delivery for orders over £50.00
- 5 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £368.55 |
*price indicative
- RS Stock No.:
- 893-7868
- Distrelec Article No.:
- 303-82-914
- Mfr. Part No.:
- PC-0124-200-0
- Brand:
- Block
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Series | PC | |
| Type | Switched Mode | |
| Electrical Phase | 1 | |
| AC or DC Input Voltage | ac, dc | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264 V ac / 120 → 373V dc | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 20A | |
| Width | 60mm | |
| Depth | 159mm | |
| Height | 127mm | |
| Maximum Temperature | +70°C | |
| Standards Met | cULus, cURus, EN, GL, UL, UL/CSA | |
| Ripple And Noise | 70mV Pk-Pk | |
| Minimum Temperature | -25°C | |
| Mounting Type | DIN Rail Mount | |
| Special Features | Fast Tripping of Standard Bi-Metal Circuit Breakers, Push-In Terminals, Stabilised and Adjustable Output Voltage | |
| Output Voltage Adjustment Range | 23.0 to 28.5V | |
Select all | ||
|---|---|---|
Brand Block | ||
Series PC | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac, dc | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264 V ac / 120 → 373V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 20A | ||
Width 60mm | ||
Depth 159mm | ||
Height 127mm | ||
Maximum Temperature +70°C | ||
Standards Met cULus, cURus, EN, GL, UL, UL/CSA | ||
Ripple And Noise 70mV Pk-Pk | ||
Minimum Temperature -25°C | ||
Mounting Type DIN Rail Mount | ||
Special Features Fast Tripping of Standard Bi-Metal Circuit Breakers, Push-In Terminals, Stabilised and Adjustable Output Voltage | ||
Output Voltage Adjustment Range 23.0 to 28.5V | ||
- COO (Country of Origin):
- DE
Power Compact Series
These power supply units are suitable for a highly diverse range of applications in solar, measurement and control technology and they really come into their own in industrial and building automation.
The devices cover the average power requirement from 120 W to 480 W.
The output voltage can be set easily using the rotary potentiometer on the front of the housing. The robust DIN rail fastening method and push-in connection terminals enable fast and secure mounting.
Advantages
Fast tripping of standard bi-metal circuit breakers
DC OK signal contact
Parallel operation
Push-in terminals
Robust DIN rail mounting
Resistant to transient over voltages up to 4 kV
Approvals cURus, cULus, GL (Lloyds Registered)
