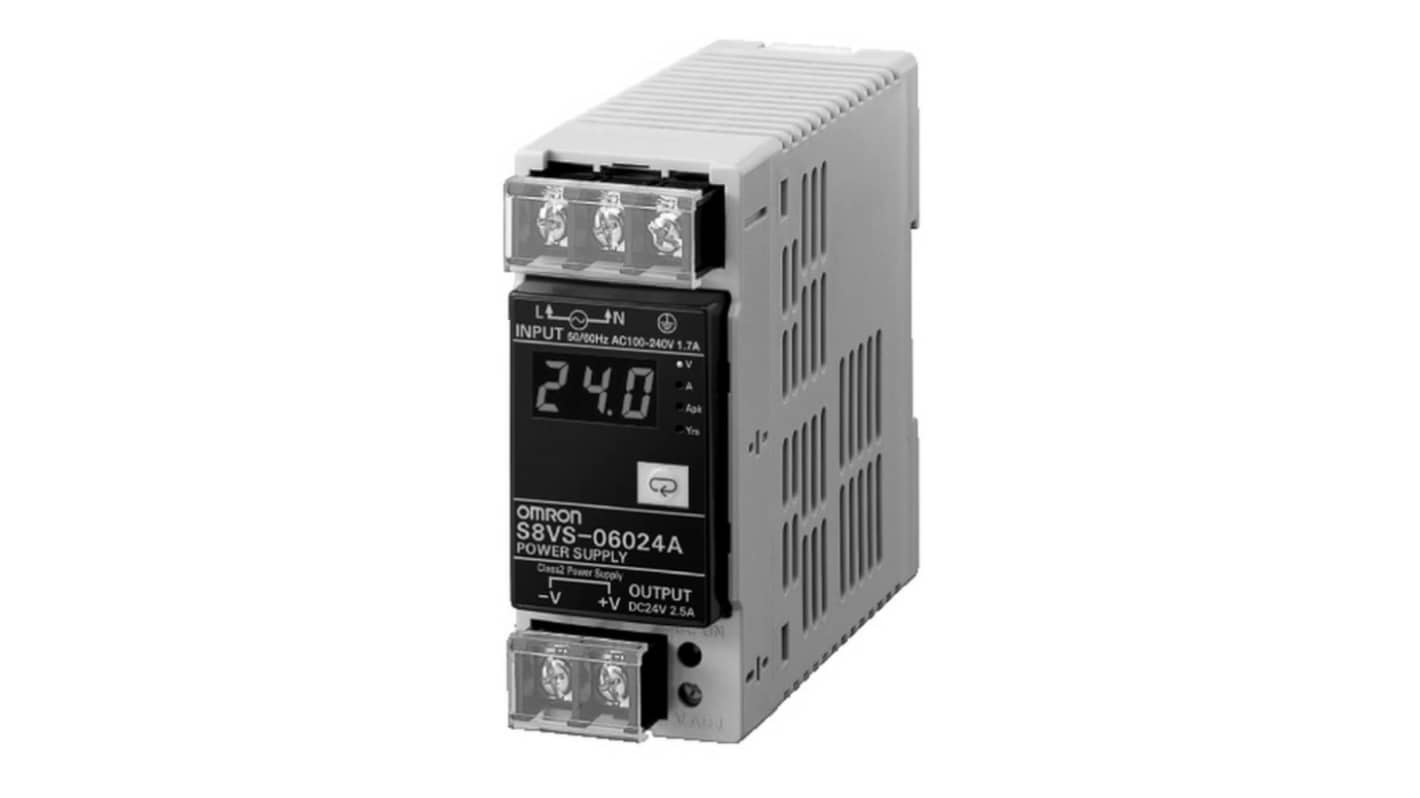

Omron S8VS Switched Mode DIN Rail Power Supply, 100 → 240V ac Input, 24V dc dc Output, 2.5A Output, 60W
- RS Stock No.:
- 818-6925
- Mfr. Part No.:
- S8VS-06024A
- Brand:
- Omron
Subtotal (1 unit)*
£217.80
(exc. VAT)
£261.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 06 October 2025
- Plus 1 unit(s) shipping from 06 October 2025
- Plus 2 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £217.80 |
*price indicative
- RS Stock No.:
- 818-6925
- Mfr. Part No.:
- S8VS-06024A
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Series | S8VS | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 100 → 240V | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 2.5A | |
Dimensions | 40 x 95 x 108.3mm | |
Height | 95mm | |
Depth | 108.3mm | |
Width | 95mm | |
Maximum Temperature | +60°C | |
Standards Met | CE | |
Minimum Temperature | -10°C | |
Efficiency | 85% | |
Load Regulation | 1.5% | |
Mounting Type | DIN Rail Mount | |
Output Voltage Adjustment Range | -10 → +15% | |
Ripple And Noise | 90mV | |
MTBF | 135000h | |
Special Features | Overvoltage and Short Circuit Protection | |
Select all | ||
---|---|---|
Brand Omron | ||
Series S8VS | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 100 → 240V | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 2.5A | ||
Dimensions 40 x 95 x 108.3mm | ||
Height 95mm | ||
Depth 108.3mm | ||
Width 95mm | ||
Maximum Temperature +60°C | ||
Standards Met CE | ||
Minimum Temperature -10°C | ||
Efficiency 85% | ||
Load Regulation 1.5% | ||
Mounting Type DIN Rail Mount | ||
Output Voltage Adjustment Range -10 → +15% | ||
Ripple And Noise 90mV | ||
MTBF 135000h | ||
Special Features Overvoltage and Short Circuit Protection | ||
60W to 240W S8VS Series Power Supplies
A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.
60/90/120/180/240/480-W Models
• 90-W models have an indication monitor that conforms to UL Class 2 Output standards
• New models with screwless terminal blocks and indication monitor
• 3-digit, 7-segment status display
• New models with screwless terminal blocks and indication monitor
• 3-digit, 7-segment status display
Note
Approvals
