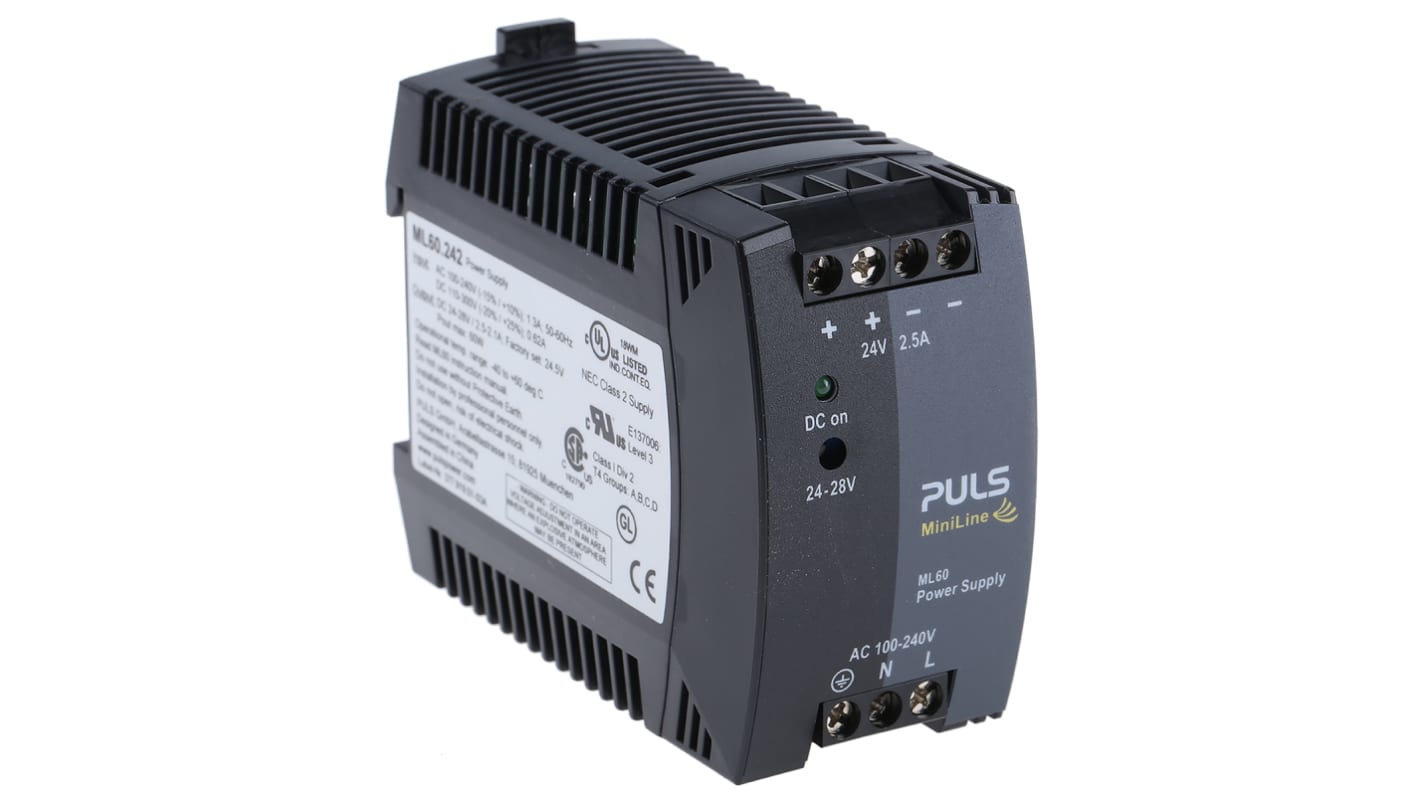

PULS MiniLine MLY Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.5A Output, 60W
- RS Stock No.:
- 733-6176
- Distrelec Article No.:
- 169-96-583
- Mfr. Part No.:
- ML60.242
- Brand:
- PULS
Subtotal (1 unit)*
£88.09
(exc. VAT)
£105.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £88.09 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£83.83
(exc. VAT)
£100.60
(inc. VAT)
- RS Stock No.:
- 733-6176
- Distrelec Article No.:
- 169-96-583
- Mfr. Part No.:
- ML60.242
- Brand:
- PULS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | PULS | |
Series | MiniLine MLY | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac | |
Number of Outputs | 1 | |
Input Voltage | 100 → 240V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 2.5A | |
Dimensions | 45 x 75 x 91mm | |
Width | 45mm | |
Depth | 91mm | |
Height | 75mm | |
MTBF | 3216000h | |
Minimum Temperature | -40°C | |
Maximum Temperature | +70°C | |
Load Regulation | 100mV | |
Mounting Type | DIN Rail Mount | |
Ripple And Noise | 50mV Pk-Pk | |
Select all | ||
---|---|---|
Brand PULS | ||
Series MiniLine MLY | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 100 → 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 2.5A | ||
Dimensions 45 x 75 x 91mm | ||
Width 45mm | ||
Depth 91mm | ||
Height 75mm | ||
MTBF 3216000h | ||
Minimum Temperature -40°C | ||
Maximum Temperature +70°C | ||
Load Regulation 100mV | ||
Mounting Type DIN Rail Mount | ||
Ripple And Noise 50mV Pk-Pk | ||
- COO (Country of Origin):
- CZ
PULS DIN Rail Power Supply
The PULS MiniLine MLY series single-phase DIN-rail power supply have adjustable output voltage ranging between 24VDC and 28VDC with 2.5A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage ranging between 100VAC and 240VAC/85VDC and 375VDC. A rugged electrical and mechanical design of robust plastic housing with a fine ventilation grid as well as a high immunity against electrical disturbances on the mains provides reliable output power.
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating at 60 and 70°C
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating at 60 and 70°C
Features and Benefits
Miniature size and lightweight
Quick and easy mount
Plug connector with screw terminations
Efficiency is up to 90.4%
Power rating is 60W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Parallel mode for load sharing
Operation temperature ranges between -40°C and 70°C
Quick and easy mount
Plug connector with screw terminations
Efficiency is up to 90.4%
Power rating is 60W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Parallel mode for load sharing
Operation temperature ranges between -40°C and 70°C
Applications
Industrial control
Automation
Communication and instrumentation equipment
Automation
Communication and instrumentation equipment
Certifications
EN 61000-6-3
CSA certified
UL approved
IP20 rated
NEC class 2 compliant
CSA certified
UL approved
IP20 rated
NEC class 2 compliant
