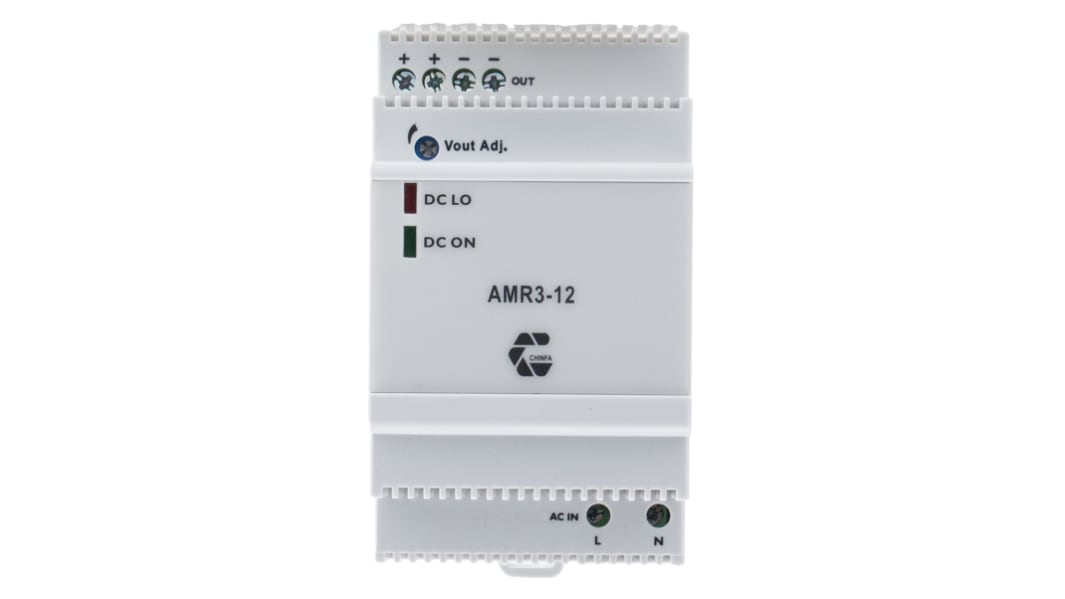

Chinfa AMR3 Switched Mode DIN Rail Power Supply, 90 → 264V ac ac Input, 12V dc dc Output, 2.75A Output, 33W
- RS Stock No.:
- 789-4048
- Mfr. Part No.:
- AMR3-12
- Brand:
- Chinfa
Subtotal (1 unit)*
£34.80
(exc. VAT)
£41.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 22 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £34.80 |
*price indicative
- RS Stock No.:
- 789-4048
- Mfr. Part No.:
- AMR3-12
- Brand:
- Chinfa
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Chinfa | |
Series | AMR3 | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 90 → 264V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 12V dc | |
Output Current | 2.75A | |
Dimensions | 53 x 56.5 x 91mm | |
Width | 56.5mm | |
Depth | 57mm | |
Height | 91mm | |
Maximum Temperature | +71°C | |
Standards Met | EN 55032, EN 62368-1, UL 62368-1, UL508 | |
MTBF | 697000h | |
Load Regulation | ±1% | |
Mounting Type | DIN Rail Mount | |
Minimum Temperature | -40°C | |
Ripple And Noise | 50mV | |
Select all | ||
---|---|---|
Brand Chinfa | ||
Series AMR3 | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 90 → 264V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 12V dc | ||
Output Current 2.75A | ||
Dimensions 53 x 56.5 x 91mm | ||
Width 56.5mm | ||
Depth 57mm | ||
Height 91mm | ||
Maximum Temperature +71°C | ||
Standards Met EN 55032, EN 62368-1, UL 62368-1, UL508 | ||
MTBF 697000h | ||
Load Regulation ±1% | ||
Mounting Type DIN Rail Mount | ||
Minimum Temperature -40°C | ||
Ripple And Noise 50mV | ||
AMR1, AMR2, AMR3, AMR4 and AMR5 Series
DIN rail power supplies with universal main input suitable for several applications as powering building controls, factory
automation, industrial controls, instrumentation, door entry systems, electromagnetic drives, fans, and other dc loads.
automation, industrial controls, instrumentation, door entry systems, electromagnetic drives, fans, and other dc loads.
Universal mains input 120 - 370Vdc, 90 - 264Vac
Regulated outputs
Short circuit protection
Internal input filter
-40°C to +71°C operation
3 year warranty
Regulated outputs
Short circuit protection
Internal input filter
-40°C to +71°C operation
3 year warranty
Approvals
UL / cUL / TUV / CE
