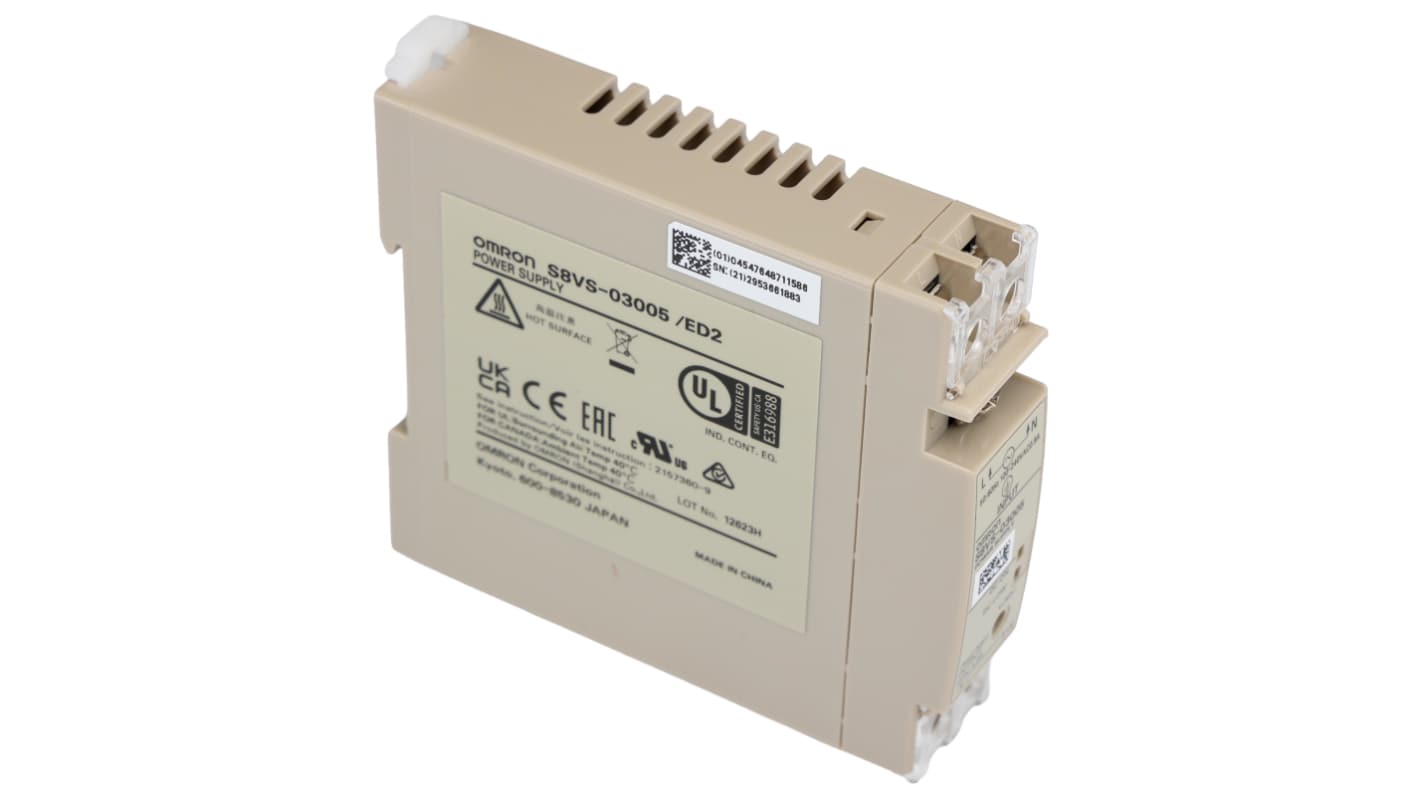

Omron S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 5V dc dc Output, 4A Output, 20W
- RS Stock No.:
- 494-6534
- Mfr. Part No.:
- S8VS-03005
- Brand:
- Omron
Subtotal (1 unit)*
£142.50
(exc. VAT)
£171.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £142.50 |
*price indicative
- RS Stock No.:
- 494-6534
- Mfr. Part No.:
- S8VS-03005
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Series | S8VS | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac | |
Number of Outputs | 1 | |
Input Voltage | 85 → 264V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 5V dc | |
Output Current | 4A | |
Dimensions | 96.4 x 22.5 x 94.6mm | |
Width | 22.5mm | |
Height | 85mm | |
Depth | 96.4mm | |
Maximum Temperature | +60°C | |
Mounting Type | DIN Rail Mount | |
Ripple And Noise | ±2% | |
Efficiency | 70% | |
Load Regulation | ±2% | |
Minimum Temperature | -10°C | |
MTBF | 135000h | |
Select all | ||
---|---|---|
Brand Omron | ||
Series S8VS | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 5V dc | ||
Output Current 4A | ||
Dimensions 96.4 x 22.5 x 94.6mm | ||
Width 22.5mm | ||
Height 85mm | ||
Depth 96.4mm | ||
Maximum Temperature +60°C | ||
Mounting Type DIN Rail Mount | ||
Ripple And Noise ±2% | ||
Efficiency 70% | ||
Load Regulation ±2% | ||
Minimum Temperature -10°C | ||
MTBF 135000h | ||
RoHS Status: Exempt
Omron S8VS Series Power Supply, 5V DC Output Voltage, 4A Output Current - S8VS03005
This power supply is an industrial-grade solution designed to meet diverse electronic needs. With an input voltage range of 85 to 264 V AC and a compact DIN rail mount design, this unit is optimally sized for streamlined installations. Measuring 96.4 x 22.5 x 94.6 mm, it delivers a steady 5V DC output at 4A, making it suitable for various applications within automation and electronics.
Features & Benefits
• 30W power rating supports various electronic devices
• High-efficiency design maximises energy utilisation at 74%
• Single output ensures straightforward connectivity for users
• Long service life with MTBF of 135,000 hours enhances reliability
• High-efficiency design maximises energy utilisation at 74%
• Single output ensures straightforward connectivity for users
• Long service life with MTBF of 135,000 hours enhances reliability
Applications
• Used for powering control systems in industrial automation
• Effective in electronic circuitry requiring stable 5V output
• Ideal for compact installations in control cabinets
• Suitable for devices demanding a continuous DC power supply
• Effective in electronic circuitry requiring stable 5V output
• Ideal for compact installations in control cabinets
• Suitable for devices demanding a continuous DC power supply
What input voltage range does this unit support?
It can accept AC input voltages ranging from 85 to 264 V, making it adaptable for various applications.
How does it ensure stable performance under load conditions?
The load regulation feature allows for a voltage stability of ±2%, providing consistent output despite load variations.
What are the temperature limits for safe operation?
This power supply can function effectively in environments from -10°C to +60°C, allowing for use in diverse conditions.
Standards
UL, CSA, EN, VDE
