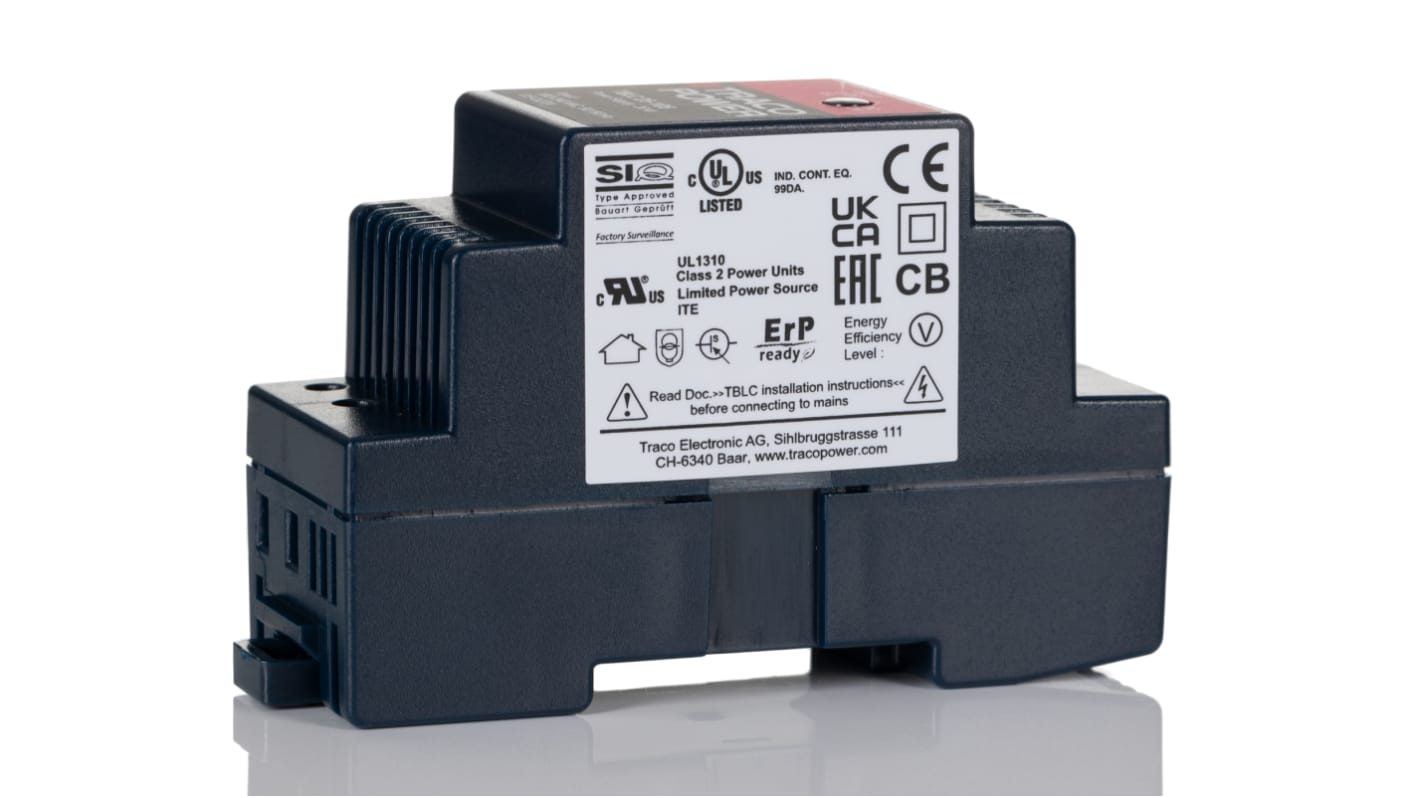

TRACOPOWER TBLC 25 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 5V dc dc Output, 4A Output, 20W
- RS Stock No.:
- 125-8546
- Distrelec Article No.:
- 301-21-022
- Mfr. Part No.:
- TBLC 25-105
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£52.70
(exc. VAT)
£63.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 46 unit(s) ready to ship from another location
- Plus 999,999,970 unit(s) shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £52.70 |
*price indicative
- RS Stock No.:
- 125-8546
- Distrelec Article No.:
- 301-21-022
- Mfr. Part No.:
- TBLC 25-105
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Series | TBLC 25 | |
| Type | Switched Mode | |
| Electrical Phase | 1 | |
| AC or DC Input Voltage | ac | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 5V dc | |
| Output Current | 4A | |
| Power Rating | 20W | |
| Dimensions | 89.5 x 18 x 59.5mm | |
| Height | 59.5mm | |
| Depth | 89.5mm | |
| Width | 36mm | |
| Mounting Type | DIN Rail Mount | |
| Minimum Temperature | -25°C | |
| Efficiency | 82% | |
| Ripple And Noise | 50mV Pk-Pk | |
| MTBF | 1900000h | |
| Maximum Temperature | +70°C | |
| Special Features | Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes | |
| Load Regulation | 0.3% | |
| Standards Met | ErP Compliant | |
| Output Voltage Adjustment Range | 5 → 5.5V | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Series TBLC 25 | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 5V dc | ||
Output Current 4A | ||
Power Rating 20W | ||
Dimensions 89.5 x 18 x 59.5mm | ||
Height 59.5mm | ||
Depth 89.5mm | ||
Width 36mm | ||
Mounting Type DIN Rail Mount | ||
Minimum Temperature -25°C | ||
Efficiency 82% | ||
Ripple And Noise 50mV Pk-Pk | ||
MTBF 1900000h | ||
Maximum Temperature +70°C | ||
Special Features Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes | ||
Load Regulation 0.3% | ||
Standards Met ErP Compliant | ||
Output Voltage Adjustment Range 5 → 5.5V | ||
