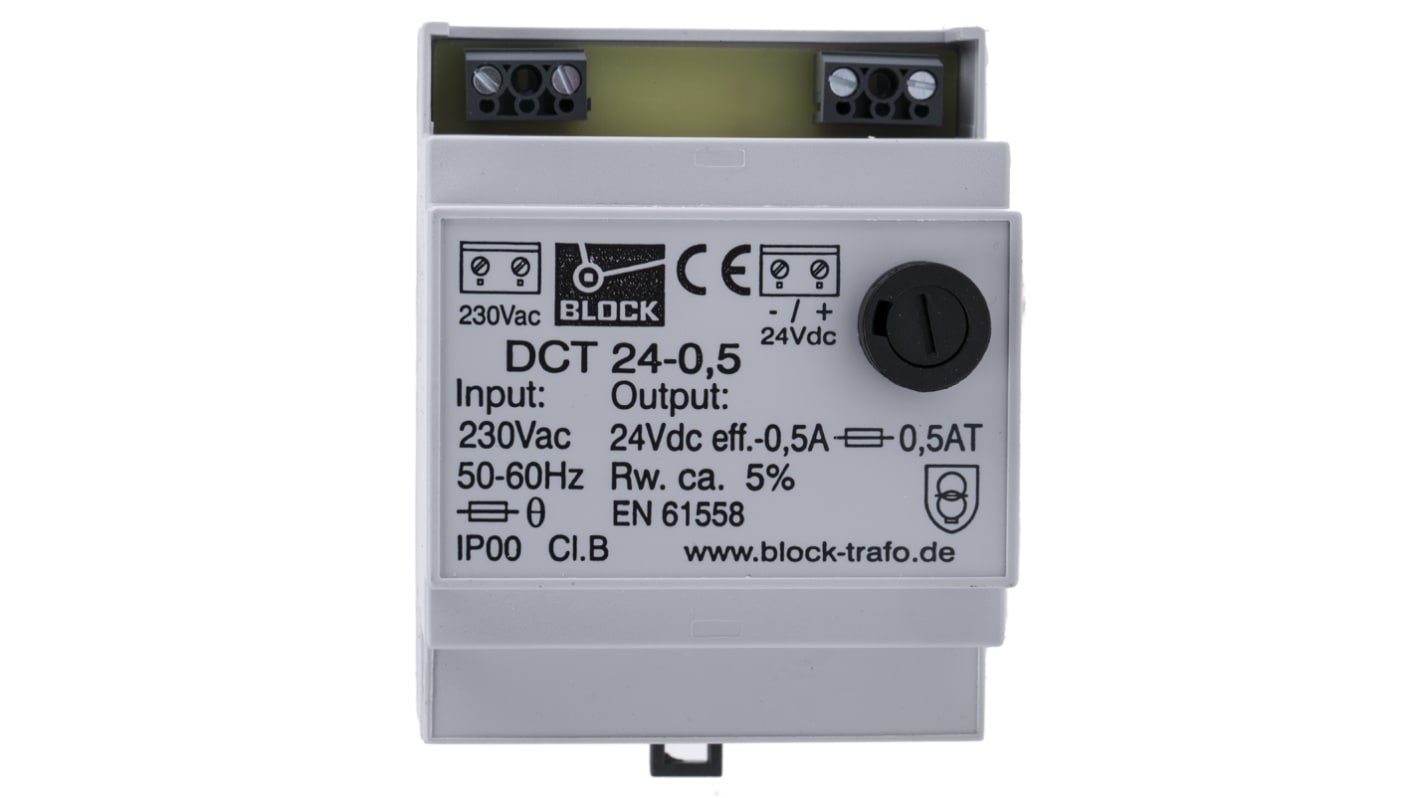

Block DCT Linear DIN Rail Power Supply, 230V ac ac Input, 24V dc dc Output, 500mA Output, 12W
- RS Stock No.:
- 445-9658
- Mfr. Part No.:
- DCT24-0.5
- Brand:
- Block
Bulk discount available
Subtotal (1 unit)*
£72.47
(exc. VAT)
£86.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £72.47 |
| 10 - 14 | £68.77 |
| 15 + | £66.53 |
*price indicative
- RS Stock No.:
- 445-9658
- Mfr. Part No.:
- DCT24-0.5
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Series | DCT | |
| Type | Linear | |
| Electrical Phase | 1 | |
| AC or DC Input Voltage | ac | |
| Number of Outputs | 1 | |
| Input Voltage | 230V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 500mA | |
| Dimensions | 71 x 63 x 94mm | |
| Width | 63mm | |
| Depth | 94mm | |
| Height | 94mm | |
| Maximum Temperature | +40°C | |
| Load Regulation | ±21% | |
| Ripple And Noise | ±5% | |
| Output Voltage Adjustment Range | 24.0 to 24.0V | |
| Mounting Type | DIN Rail Mount | |
Select all | ||
|---|---|---|
Brand Block | ||
Series DCT | ||
Type Linear | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 230V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 500mA | ||
Dimensions 71 x 63 x 94mm | ||
Width 63mm | ||
Depth 94mm | ||
Height 94mm | ||
Maximum Temperature +40°C | ||
Load Regulation ±21% | ||
Ripple And Noise ±5% | ||
Output Voltage Adjustment Range 24.0 to 24.0V | ||
Mounting Type DIN Rail Mount | ||
- COO (Country of Origin):
- DE
6 to 60W Unregulated DCT Series
230Vac input, 12 or 24Vdc (nom) output power supply/safety isolating transformer
Manufactured to EN 61 558, VDE 0570
Fully encapsulated in a plastic housing
Designed for easy installation on DIN EN50 022 rails
3.75kV input/output flash tested
Screw terminals for both input and output
Efficiency 75% typical
Integral fuse and thermal cut-out to give protection against overload and short circuits
Manufactured to EN 61 558, VDE 0570
Fully encapsulated in a plastic housing
Designed for easy installation on DIN EN50 022 rails
3.75kV input/output flash tested
Screw terminals for both input and output
Efficiency 75% typical
Integral fuse and thermal cut-out to give protection against overload and short circuits
Note
Load regulation quoted is typical value (unregulated).
Standards
IEC, EN, VDE
