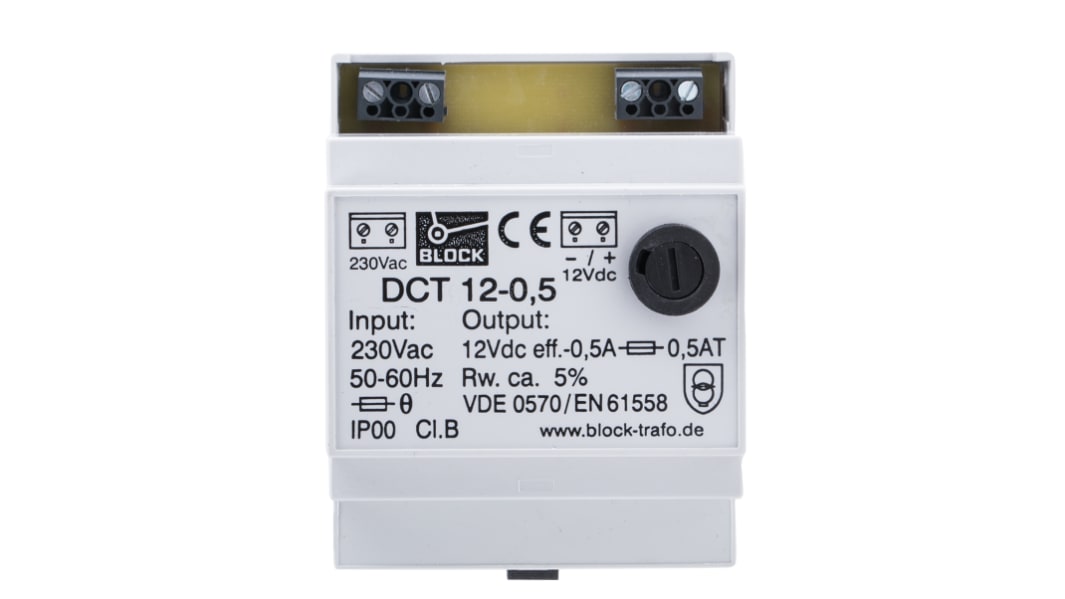

Block DCT Linear DIN Rail Power Supply, 230V ac ac Input, 12V dc dc Output, 500mA Output, 6W
- RS Stock No.:
- 445-9608
- Mfr. Part No.:
- DCT12-0.5
- Brand:
- Block
2 In stock - FREE next working day delivery available
Added
Price Each
£70.89
(exc. VAT)
£85.07
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £70.89 |
| 10 - 14 | £67.28 |
| 15 + | £65.01 |
- RS Stock No.:
- 445-9608
- Mfr. Part No.:
- DCT12-0.5
- Brand:
- Block
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
6 to 60W Unregulated DCT Series
230Vac input, 12 or 24Vdc (nom) output power supply/safety isolating transformer
Manufactured to EN 61 558, VDE 0570
Fully encapsulated in a plastic housing
Designed for easy installation on DIN EN50 022 rails
3.75kV input/output flash tested
Screw terminals for both input and output
Efficiency 75% typical
Integral fuse and thermal cut-out to give protection against overload and short circuits
Manufactured to EN 61 558, VDE 0570
Fully encapsulated in a plastic housing
Designed for easy installation on DIN EN50 022 rails
3.75kV input/output flash tested
Screw terminals for both input and output
Efficiency 75% typical
Integral fuse and thermal cut-out to give protection against overload and short circuits
Note
Load regulation quoted is typical value (unregulated).
Standards
IEC, EN, VDE
Specifications
Attribute | Value |
|---|---|
| Type | Linear |
| Output Voltage | 12V dc |
| Output Current | 500mA |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 230V ac |
| Power Rating | 6W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 94mm |
| Width | 63mm |
| Depth | 94mm |
| Series | DCT |
| Load Regulation | ±21% |
| Output Voltage Adjustment Range | 12.0 to 12.0V |
| Ripple And Noise | ±5% |
| Maximum Temperature | +40°C |
| Mounting Type | DIN Rail Mount |
