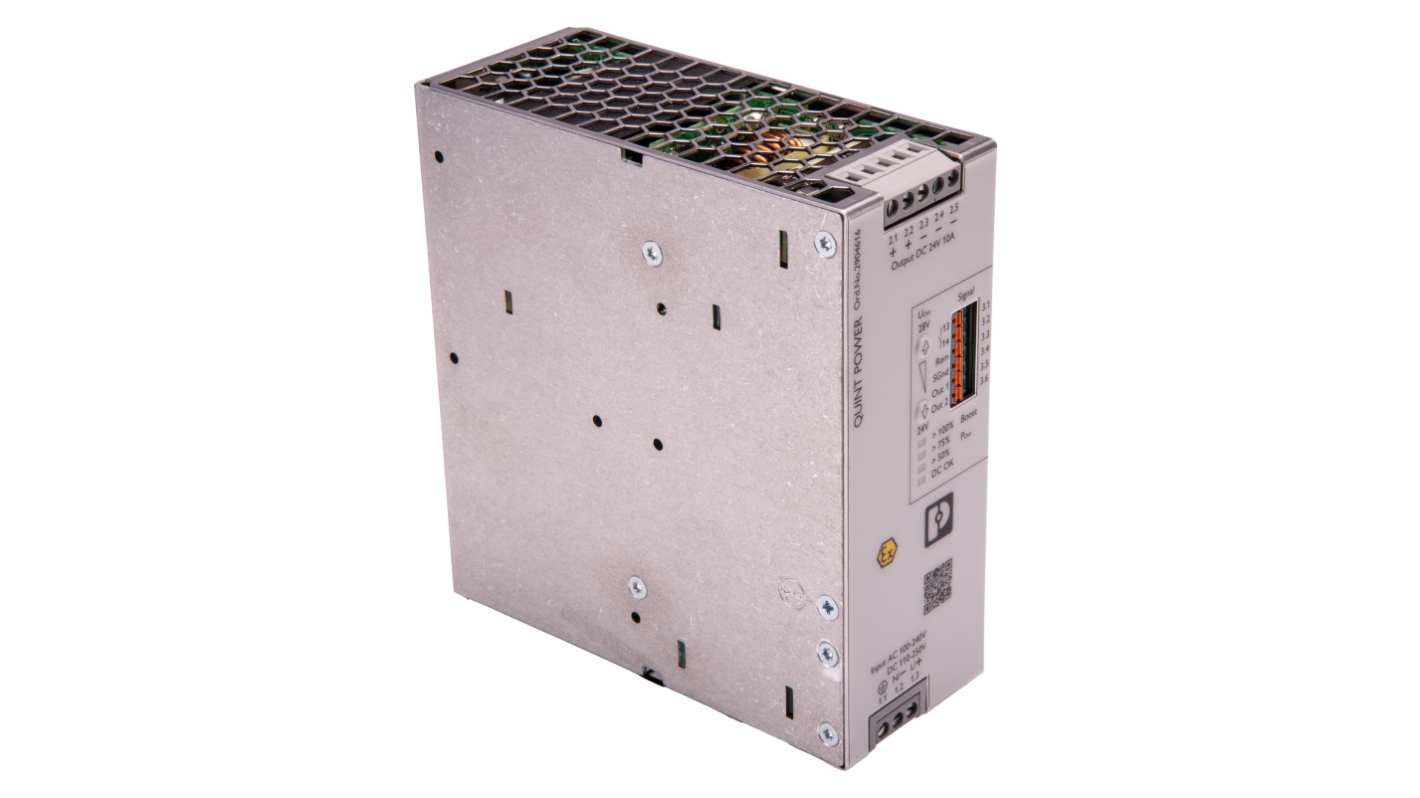

Phoenix Contact QUINT POWER DIN Rail Power Supply, 240V ac ac, dc Input, 24V dc dc Output, 10A Output, 274VA
- RS Stock No.:
- 284-8519
- Mfr. Part No.:
- 2904616
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£369.88
(exc. VAT)
£443.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 999,999,997 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £369.88 |
*price indicative
- RS Stock No.:
- 284-8519
- Mfr. Part No.:
- 2904616
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | QUINT POWER | |
Type | Power Supply | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac, dc | |
Input Voltage | 240V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 10A | |
Dimensions | 125 x 50 x 130mm | |
Depth | 125mm | |
Width | 50mm | |
Height | 130mm | |
Standards Met | EN 61000-3-2 | |
Model | QUINT4-PS/1AC/24DC/10/+ | |
Minimum Temperature | -40°C | |
MTBF | > 321000 (60 °C) h, > 700000 (40 °C) h, > 1165000 (25 °C) h | |
Mounting Type | DIN Rail | |
Efficiency | 92.8/93.8% | |
Maximum Temperature | +75°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series QUINT POWER | ||
Type Power Supply | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 10A | ||
Dimensions 125 x 50 x 130mm | ||
Depth 125mm | ||
Width 50mm | ||
Height 130mm | ||
Standards Met EN 61000-3-2 | ||
Model QUINT4-PS/1AC/24DC/10/+ | ||
Minimum Temperature -40°C | ||
MTBF > 321000 (60 °C) h, > 700000 (40 °C) h, > 1165000 (25 °C) h | ||
Mounting Type DIN Rail | ||
Efficiency 92.8/93.8% | ||
Maximum Temperature +75°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TH
Phoenix Contact QUINT POWER Series DIN Rail Power Supply, 274VA Power Rating, 125x50x130mm - 2904616
This DIN rail power supply provides efficient energy conversion for a range of applications in automation, electronics, and industrial sectors. With a 1-phase input design, it enables smooth operation and connectivity across systems, serving as an essential component for those seeking a dependable electrical solution.
Features & Benefits
• High efficiency of up to 93.8% reduces energy consumption
• Selectable output characteristic curve offers application flexibility
• Integrated decoupling MOSFET ensures stable operation
• Operates in temperature extremes of -40°C to +75°C
• Selectable output characteristic curve offers application flexibility
• Integrated decoupling MOSFET ensures stable operation
• Operates in temperature extremes of -40°C to +75°C
Applications
• Suitable for automated systems requiring 24V DC power
• Perfect for control cabinets and industrial machinery
• Fit for installations in harsh environments
• Works well with various electrical and mechanical configurations
• Perfect for control cabinets and industrial machinery
• Fit for installations in harsh environments
• Works well with various electrical and mechanical configurations
What is the input voltage range this device can operate with?
It operates with input voltages from 100V AC to 240V AC and 110V DC to 250V DC.
How can I adjust the output characteristics for specific applications?
Adjustments can be made via the NFC interface, allowing customisation of signalling thresholds and characteristics.
Is this power supply suitable for outdoor environments?
While it performs reliably within specified ambient conditions, it should be housed within protective enclosures for outdoor use.
What type of overload protection does it offer?
The integrated SFB technology prevents overloads by temporarily disconnecting the output when excess current is detected.
