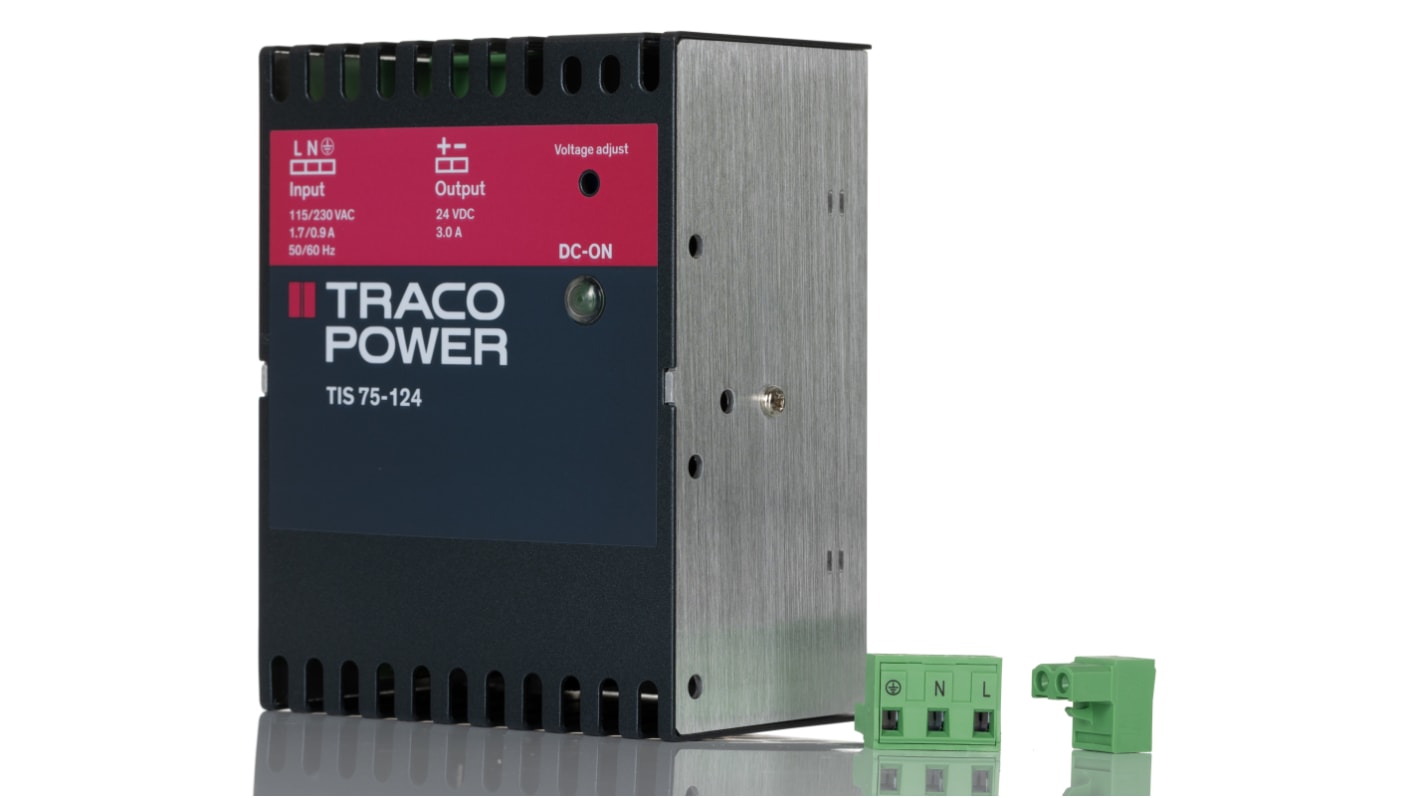

TRACOPOWER TIS Switched Mode DIN Rail Power Supply, 93 → 132 V ac, 187 → 264 V ac ac Input, 24V dc dc
- RS Stock No.:
- 242-2389
- Mfr. Part No.:
- TIS 75-124
- Brand:
- TRACOPOWER
53 In stock - FREE next working day delivery available
Added
Price Each
£121.20
(exc. VAT)
£145.44
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £121.20 |
| 10 - 14 | £115.14 |
| 15 + | £109.08 |
- RS Stock No.:
- 242-2389
- Mfr. Part No.:
- TIS 75-124
- Brand:
- TRACOPOWER
Legislation and Compliance
Product Details
Traco Power DIN Rail Power Supply, 80kHz Switching Frequency, 50mV Pk-Pk Ripple and Noise - TIS Series - TIS 75-124
Want to change high alternating current into lower direct current in jiffy? Enlist this DIN rail power supply from Traco Power for the job. It takes an input voltage between 93 and 132V AC and gives you an output of 24V DC in return. It's an ideal choice for low-power, single-phase operations. Harsh industrial conditions are no match for this product, thanks to an operating temperature range between -25°C and +70°C. Installation's swift and straightforward due to its DIN rail compatibility, so you're up and running in no time.
Features & Benefits
• Compact dimensions of 114.6 (H) x 56.7 (W) x 56.7mm (D) suit use in tight areas
• Mean time between failures of 420,000 hours offers dependable long-term performance
• 75W power rating for energising demanding applications
• Light 480g weight minimises strain on your setup
• ±0.2% line regulation and ±1% load regulation support consistent output
• Mean time between failures of 420,000 hours offers dependable long-term performance
• 75W power rating for energising demanding applications
• Light 480g weight minimises strain on your setup
• ±0.2% line regulation and ±1% load regulation support consistent output
Applications
• Robotics systems
• Industrial automation
• Safety technology
• Industrial automation
• Safety technology
Does this DIN rail power supply have an IP rating?
Yes. The PSU has an IP20 rating, which means it's touch-proof and resists tools or wires bigger than 12mm.
Approvals
UL Recognised
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 3A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 93 → 132 V ac, 187 → 264 V ac |
| Power Rating | 75W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 90mm |
| Width | 56.7mm |
| Depth | 114.6mm |
| Series | TIS |
| Special Features | Overvoltage and Short Circuit Protection |
| Output Voltage Adjustment Range | 24 → 28V |
| Ripple And Noise | 50mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
| Standards Met | CE, EN 55022, FCC, IEC/EN 60950-1, IEC/EN 62368-1, UL/cUL 60950-1, UL/cUL 62368-1, UL/cUL/IEC/EN 62368-1 |
| Load Regulation | ±1% |
| MTBF | 420000h |
| Efficiency | 85% |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
