Idec PS5R Switched Mode DIN Rail Power Supply 370 V dc, 264V ac AC/DC Input 24V dc, 5 A Output DC 120 W
- RS Stock No.:
- 179-5354
- Distrelec Article No.:
- 301-02-478
- Mfr. Part No.:
- PS5R-VF24
- Brand:
- Idec
Subtotal (1 unit)*
£83.53
(exc. VAT)
£100.24
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 342 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 22 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.53 |
*price indicative
- RS Stock No.:
- 179-5354
- Distrelec Article No.:
- 301-02-478
- Mfr. Part No.:
- PS5R-VF24
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Series | PS5R | |
| Product Type | DIN Rail Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Sub Type | Switched Mode | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| Input Voltage Type | AC/DC | |
| Power | 120W | |
| Output Current | 5A | |
| IP Rating | IP20 | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 65°C | |
| Width | 46mm | |
| Height | 115mm | |
| Depth | 121mm | |
| Standards/Approvals | ANSI/ISA, EN 61204-3, CE:TUV, CSA C22.2 No 107.1.213.223, cULus, EN 50178, EN 60950-1, UL 508, UL 310 | |
| Hazardous Area Certification | No | |
| Maximum Input Voltage | 370, 264V dc | |
| Minimum Input Voltage | 85V ac | |
| Efficiency | 89% | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Series PS5R | ||
Product Type DIN Rail Power Supply | ||
Maximum Output Voltage 24V dc | ||
Sub Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
Input Voltage Type AC/DC | ||
Power 120W | ||
Output Current 5A | ||
IP Rating IP20 | ||
Output Voltage Type DC | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 65°C | ||
Width 46mm | ||
Height 115mm | ||
Depth 121mm | ||
Standards/Approvals ANSI/ISA, EN 61204-3, CE:TUV, CSA C22.2 No 107.1.213.223, cULus, EN 50178, EN 60950-1, UL 508, UL 310 | ||
Hazardous Area Certification No | ||
Maximum Input Voltage 370, 264V dc | ||
Minimum Input Voltage 85V ac | ||
Efficiency 89% | ||
- COO (Country of Origin):
- TW

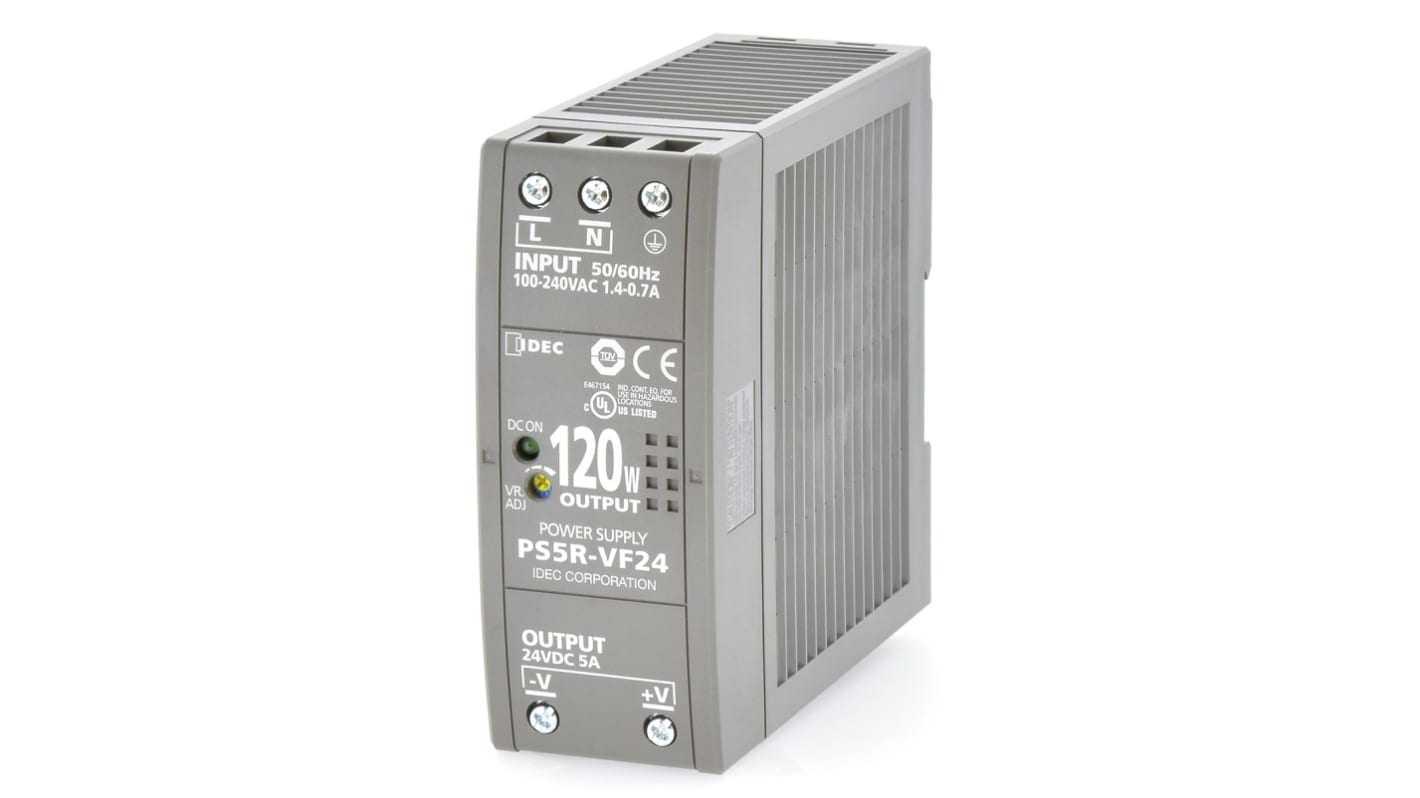

Idec DIN Rail Power Supply
The Idec PS5R series DIN rail power supply has a universal input voltage ranging between 85VAC and 264VAC/100VDC and 370VDC. Its compact size preserves panel space and can be installed in six mounting directions. This power supply provides higher efficiency, expanded operating temperature ranges and longer MTBF. The rated output current is 5A at 24VDC output voltage.
Features and Benefits
Efficiency is up to 89%
LED status indicator
Lightweight and slim
Operation temperature ranging between -25°C and 65°C
Overcurrent protection with auto-reset
Power rating is up to 120W
Ripple factor and noise is 4%
Spring terminals for 2.5 mm² wires
Applications
Automation and process control
Industrial controls
Power management
Certifications
CE certified
EN
TUV
UL approved
