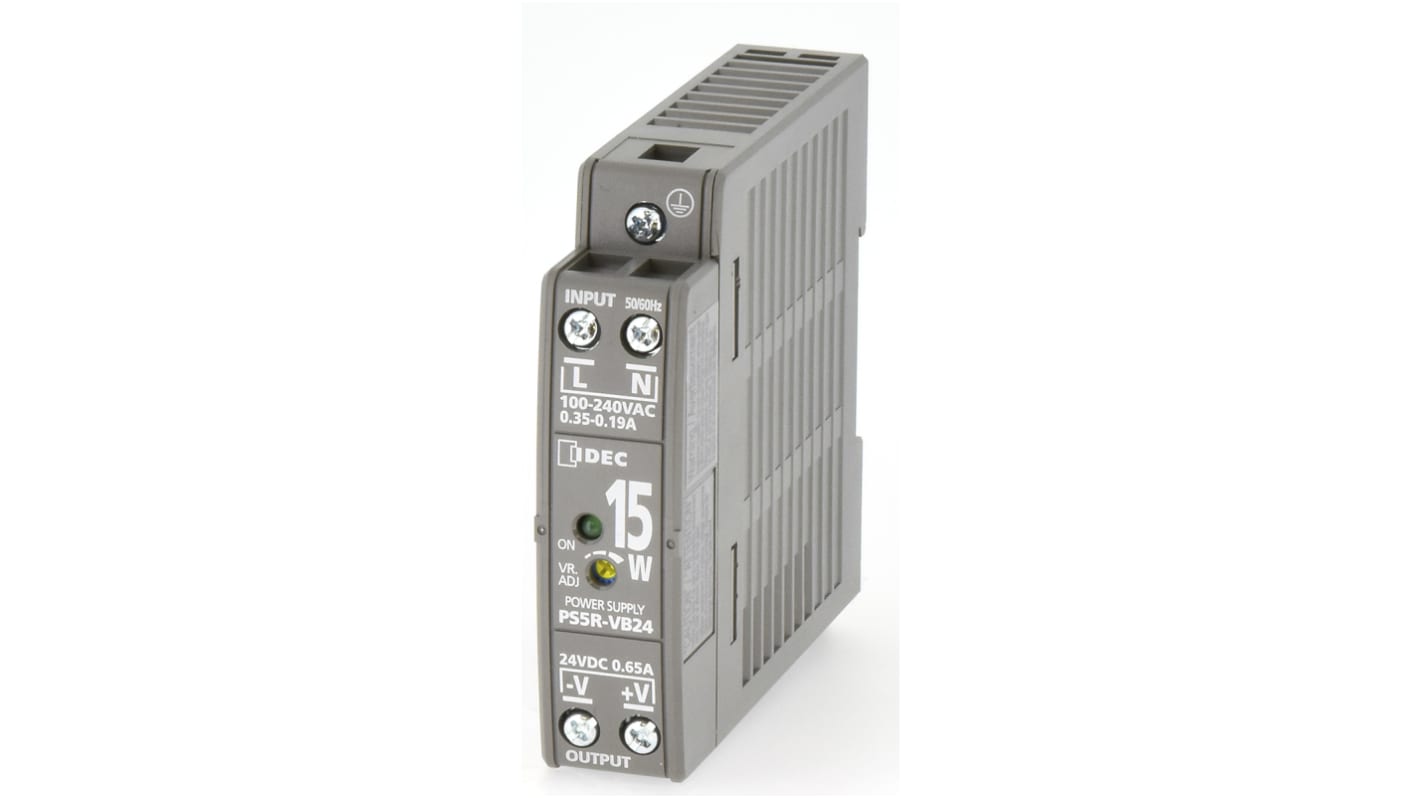

Idec PS5R Switched Mode DIN Rail Power Supply 370 V dc, 264V ac AC/DC Input 24V dc, 650 mA Output DC 15 W
- RS Stock No.:
- 179-5349
- Mfr. Part No.:
- PS5R-VB24
- Brand:
- Idec
Subtotal (1 unit)*
£28.51
(exc. VAT)
£34.21
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 338 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.51 |
*price indicative
- RS Stock No.:
- 179-5349
- Mfr. Part No.:
- PS5R-VB24
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Product Type | DIN Rail Power Supply | |
| Series | PS5R | |
| Sub Type | Switched Mode | |
| Maximum Output Voltage | 24V dc | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC/DC | |
| Number of Outputs | 1 | |
| Power | 15W | |
| Output Current | 650mA | |
| Minimum Operating Temperature | -25°C | |
| Output Voltage Type | DC | |
| Maximum Operating Temperature | 75°C | |
| Width | 22.5mm | |
| Standards/Approvals | cULus, EN 60950-1, EN 61204-3, UL 310, CSA C22.2 No 107.1.213.223, ANSI/ISA, CE:TUV, UL 508, EN 50178 | |
| Hazardous Area Certification | No | |
| Height | 90mm | |
| Depth | 95mm | |
| Maximum Input Voltage | 370, 264V dc | |
| Efficiency | 84% | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Product Type DIN Rail Power Supply | ||
Series PS5R | ||
Sub Type Switched Mode | ||
Maximum Output Voltage 24V dc | ||
Electrical Phase 1 | ||
Input Voltage Type AC/DC | ||
Number of Outputs 1 | ||
Power 15W | ||
Output Current 650mA | ||
Minimum Operating Temperature -25°C | ||
Output Voltage Type DC | ||
Maximum Operating Temperature 75°C | ||
Width 22.5mm | ||
Standards/Approvals cULus, EN 60950-1, EN 61204-3, UL 310, CSA C22.2 No 107.1.213.223, ANSI/ISA, CE:TUV, UL 508, EN 50178 | ||
Hazardous Area Certification No | ||
Height 90mm | ||
Depth 95mm | ||
Maximum Input Voltage 370, 264V dc | ||
Efficiency 84% | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- TW
Spring up terminal accepts wiring of ring terminals.
Slim Size.
Width: 22.5mm (10W/15W/30W), 36mm (60W/90W),46mm (120W),60mm (240W)
Can be installed in six mounting directions.
Optical mounting bracket is available for panel mounting.
Five-Year Warranty
