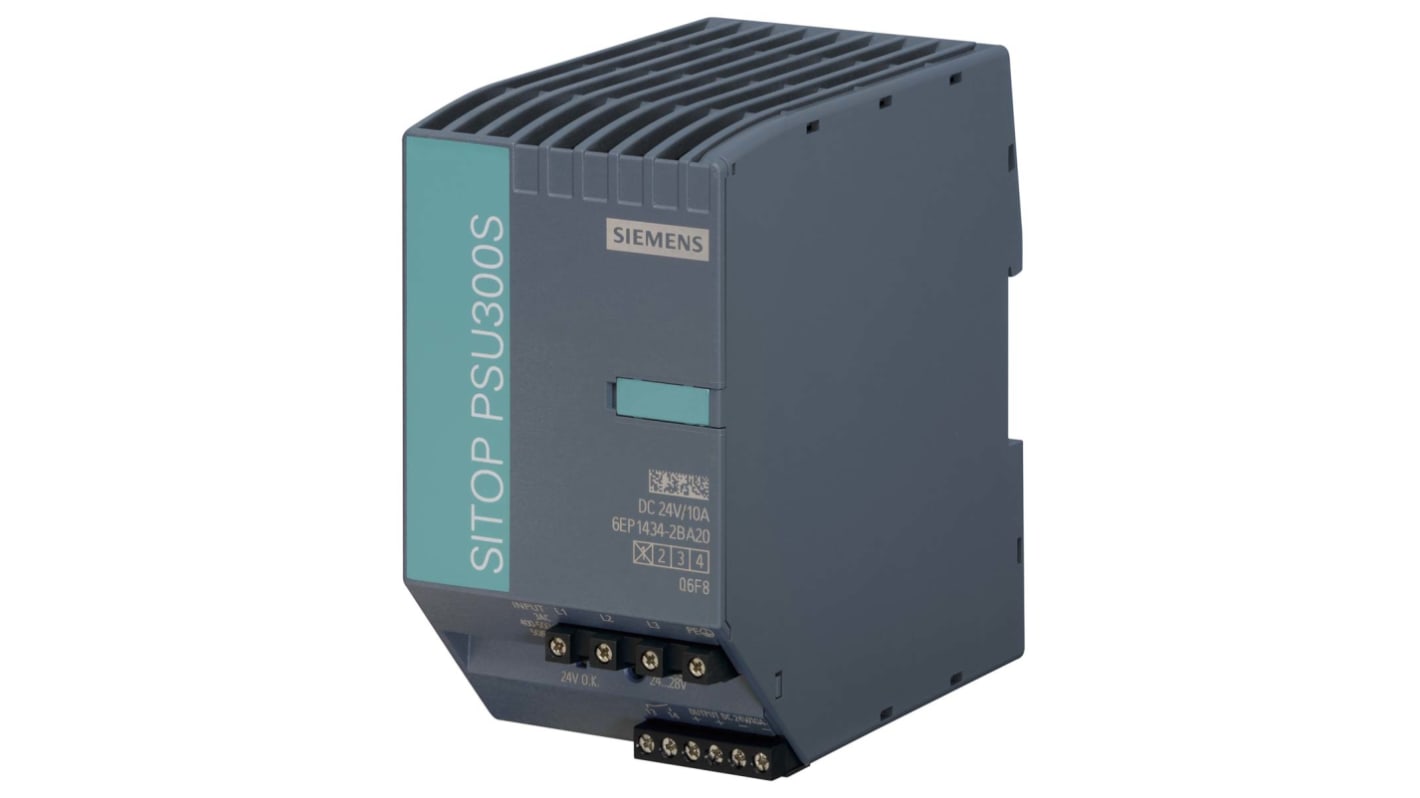

Siemens DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 0 → 10A Output, 240W

RS Stock No.:: 138-3455
Mfr. Part No.:: 6EP1434-2BA20
Brand:: Siemens

Siemens DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 0 → 10A Output, 240W

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

Siemens SITOP PSU6200 Switched Mode DIN Rail Power Supply, 400 → 500V ac ac Input, 24V dc dc Output, 10A Output

RS Stock No.: 201-0701

Each

£227.25

(exc. VAT)

£272.70

(inc. VAT)

RS Stock No.:: 138-3455
Mfr. Part No.:: 6EP1434-2BA20
Brand:: Siemens

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Type	Power Supply
	Electrical Phase	3
	Number of Outputs	2
	AC or DC Input Voltage	ac
	Input Voltage	400V ac
	AC or DC Output Voltage	dc
	Output Voltage	24V dc
	Output Current	0 → 10A
	Dimensions	125 x 70 x 120mm
	Width	70mm
	Height	125mm
	Depth	120mm
	Load Regulation	0.15%
	Special Features	Class I Protection, Controlled Output, Galvanic Isolation of Safety Extra-Low Output Voltage Uout Acc to EN 60950-1 & EN 50178, GL & ABS in Process of Marine Approval, IP20 Degree of Protection, Primary & Secondary Isolation, Screw Type Terminal
	MTBF	1458540 h @ 40 °C
	Ripple And Noise	200mV
	Output Voltage Adjustment Range	24 → 28V
	Hazardous Area Certification	ATEX (EX) II 3G Ex nA nC IIC T4 Gc
	Maximum Temperature	+70°C
	Minimum Temperature	-25°C
	Efficiency	91%
	Mounting Type	DIN Rail

	Select all
	Brand Siemens
	Type Power Supply
	Electrical Phase 3
	Number of Outputs 2
	AC or DC Input Voltage ac
	Input Voltage 400V ac
	AC or DC Output Voltage dc
	Output Voltage 24V dc
	Output Current 0 → 10A
	Dimensions 125 x 70 x 120mm
	Width 70mm
	Height 125mm
	Depth 120mm
	Load Regulation 0.15%
	Special Features Class I Protection, Controlled Output, Galvanic Isolation of Safety Extra-Low Output Voltage Uout Acc to EN 60950-1 & EN 50178, GL & ABS in Process of Marine Approval, IP20 Degree of Protection, Primary & Secondary Isolation, Screw Type Terminal
	MTBF 1458540 h @ 40 °C
	Ripple And Noise 200mV
	Output Voltage Adjustment Range 24 → 28V
	Hazardous Area Certification ATEX (EX) II 3G Ex nA nC IIC T4 Gc
	Maximum Temperature +70°C
	Minimum Temperature -25°C
	Efficiency 91%
	Mounting Type DIN Rail

Datasheet

COO (Country of Origin):: AT

SITOP Smart Power Supply Units

The 1 and 3 phase SITOP smart is the universal and powerful standard power supply for machinery and plant engineering. Despite their compact design, they offer an excellent overload response. Thanks to a power boost of 150%, loads with high power consumption can be connected without any problems. The permanent overload capability of 120% offers power reserves in-case of expansions. The high degree of efficiency results in low energy consumption and minimal heat generation inside the control cabinet.
To increase the 24 V availability, the SITOP smart power supply can be combined with buffer, DC UPS, redundancy and selectivity modules.

Features and Benefits

• Compact design

• Extra power with 1.5 times the rated current for brief functional overload

• Permanent overload capability with 1.2 times the rated current up to 45°C (24 V versions)

• High degree of efficiency up to 91.5%

• Adjustable output voltage for compensating voltage drops

• Signalling contact for easy integration in the plant monitoring system

• Wide temperature range from -25°C or -10°C to 70°C

Product Application Information

SITOP power supplies can be combined with buffer modules, uninterrupted power supplies, redundancy modules and selectivity modules.

Why use a DIN Rail power supply?

The flexibility of DIN Rail mounting systems enables quicker installation time as all devices are able to simply snap onto the metal rails. Power supplies can be easily organised on DIN Rails within enclosed wall boxes or in areas where there is limited space. Similar devices can be mounted next to each other reducing the amount of cabling required. Most power supplies are convection cooled so no cooling fans are needed.
DIN Rail AC to DC power supplies are widely used in many automation, instrumentation and industrial applications. They are used to power a wide variety of DC operated devices including sensors, motors, actuators, solenoids, relays and many more.

Points to consider when buying a DIN Rail power supply

DIN Rail size – There are three common types of DIN Rails. Top Hat, G section and C section. Most have a depth of 7.5 mm or 15 mm. It is wise to check that your power supply is compatible with your DIN Rail.

Protection types – It is important to choose a power supply that is protected against either short circuit, overload, over temperature or over voltage. Some power supplies also offer a hiccup mode which will allow the PSU to resume operation once the fault is cleared.

Fixed or adjustable output voltage or current – In test systems it is often convenient to have adjustable DC voltage however in other applications a fixed DC supply may be essential.

Cabling and wiring – The input/output lines to and from the power supply should be as short as possible with a large cross-sectional area to help minimise noise and heat.

Efficiency – Choose a power supply that has an efficiency over 89% to minimise the amount of power dissipation, especially if the system relies on convection cooling.

Input voltage range – If the DIN Rail power supply you are buying is to be used in Europe and North America as well as the UK then a universal AC input range of 80 V ac to 264 V ac is required.

Standards – If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.

Approvals

cULus
cCSAus
ATEX
IECEx
GL
