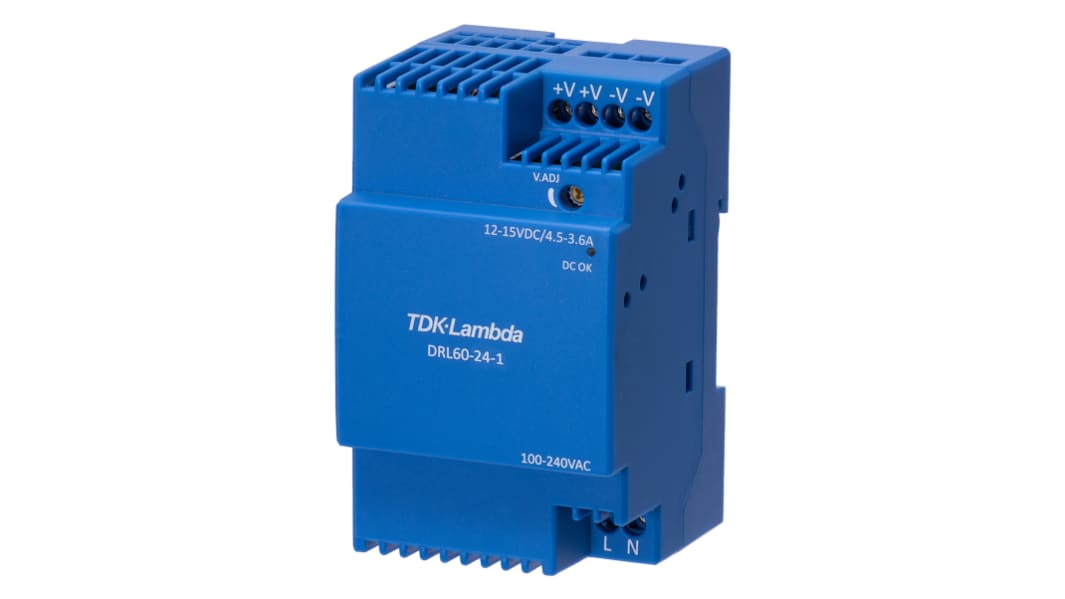

TDK-Lambda DRL-60 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output, 4A Output, 60W
- RS Stock No.:
- 137-0853
- Distrelec Article No.:
- 300-80-721
- Mfr. Part No.:
- DRL-60-12-1
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£40.89
(exc. VAT)
£49.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.89 |
*price indicative
- RS Stock No.:
- 137-0853
- Distrelec Article No.:
- 300-80-721
- Mfr. Part No.:
- DRL-60-12-1
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Series | DRL-60 | |
| Type | Switched Mode | |
| Electrical Phase | 1 | |
| AC or DC Input Voltage | ac | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 12V dc | |
| Output Current | 4A | |
| Dimensions | 54 x 55.6 x 94mm | |
| Height | 91mm | |
| Width | 54mm | |
| Depth | 55.6mm | |
| Maximum Temperature | +71°C | |
| Standards Met | IEC 60068-2-27, IEC 60068-2-6, UL 1310, UL 508, UL 60950-1 | |
| Minimum Temperature | -20°C | |
| Mounting Type | DIN Rail Mount | |
| Load Regulation | 120mV | |
| Special Features | High In-Service Lifetime, Low No Load Consumption | |
| Ripple And Noise | 120mV | |
| Output Voltage Adjustment Range | 12 → 15V | |
Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Series DRL-60 | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 12V dc | ||
Output Current 4A | ||
Dimensions 54 x 55.6 x 94mm | ||
Height 91mm | ||
Width 54mm | ||
Depth 55.6mm | ||
Maximum Temperature +71°C | ||
Standards Met IEC 60068-2-27, IEC 60068-2-6, UL 1310, UL 508, UL 60950-1 | ||
Minimum Temperature -20°C | ||
Mounting Type DIN Rail Mount | ||
Load Regulation 120mV | ||
Special Features High In-Service Lifetime, Low No Load Consumption | ||
Ripple And Noise 120mV | ||
Output Voltage Adjustment Range 12 → 15V | ||
- COO (Country of Origin):
- CN
DRL Series DIN Rail Power Supplies
The low profile DRL series DIN Rail power supply provides a reliable solution for many industrial applications and building automation. With double insulation and safety Class II input, connection to earth is not required. The NEC Class 2 compliant output, in accordance with UL 1310, allows operation where output currents are to be limited under fault conditions. Available in four power ranges, the DRL series provide a choice of 12 and 24 output voltages.
Features and Benefits
• Protection Class II
• No load power < 0.3 W to 0.5 W
• Universal AC input 85 V ac to 264 V ac
• 12 V and 24 V dc
• Operating temperature -20°C to +71°C
Product Application Information
• Building control
• Security and surveillance
• Climate controls
• Smart home
• Renewable energy
