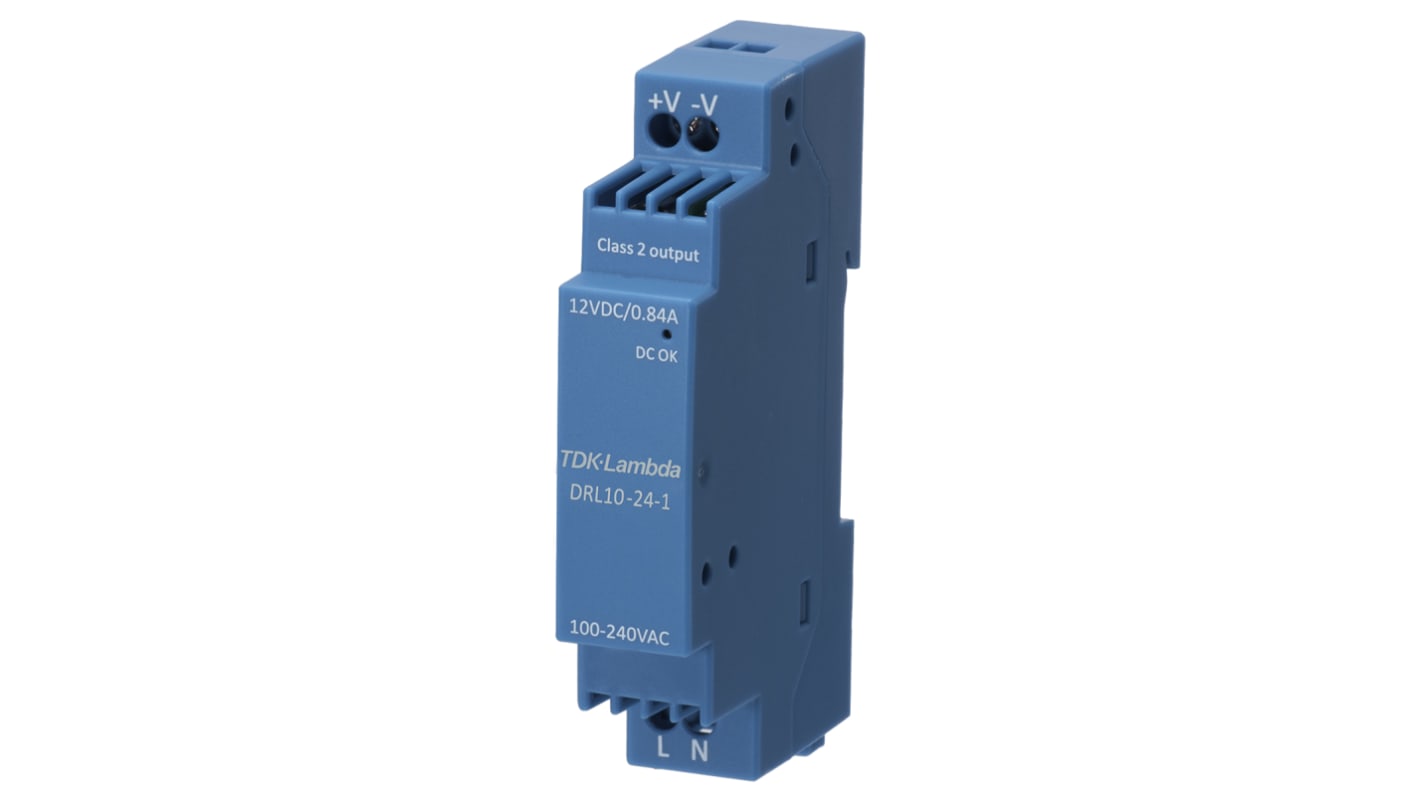

TDK-Lambda DRL-10 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output, 840mA Output, 10W

RS Stock No.:: 137-0851
Mfr. Part No.:: DRL10-12-1
Brand:: TDK-Lambda

TDK-Lambda DRL-10 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output, 840mA Output, 10W

53 In stock - FREE next working day delivery available

7 available from Europe for delivery within 1 working day(s).

Added

Price Each

£20.60

(exc. VAT)

£24.72

(inc. VAT)

Units	Per unit
1 +	£20.60

RS Stock No.:: 137-0851
Mfr. Part No.:: DRL10-12-1
Brand:: TDK-Lambda

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

DRL Series DIN Rail Power Supplies

The low profile DRL series DIN Rail power supply provides a reliable solution for many industrial applications and building automation. With double insulation and safety Class II input, connection to earth is not required. The NEC Class 2 compliant output, in accordance with UL 1310, allows operation where output currents are to be limited under fault conditions. Available in four power ranges, the DRL series provide a choice of 12 and 24 output voltages.

Features and Benefits

• Protection Class II

• No load power < 0.3 W to 0.5 W

• Universal AC input 85 V ac to 264 V ac

• 12 V and 24 V dc

• Operating temperature -20°C to +71°C

Product Application Information

• Building control

• Security and surveillance

• Climate controls

• Smart home

• Renewable energy

Specifications

Attribute	Value
Type	Switched Mode
Output Voltage	12V dc
Output Current	840mA
AC or DC Input Voltage	ac
AC or DC Output Voltage	dc
Input Voltage	85 → 264V ac
Power Rating	10W
Electrical Phase	1
Number of Outputs	1
Height	91mm
Width	18mm
Depth	55.6mm
Series	DRL-10
Maximum Temperature	+71°C
Standards Met	IEC 60068-2-27, IEC 60068-2-6, UL 1310, UL 508, UL 60950-1
Mounting Type	DIN Rail Mount
Special Features	High In-Service Lifetime, Low No Load Consumption
Load Regulation	120mV
Minimum Temperature	-20°C
Ripple And Noise	120mV
