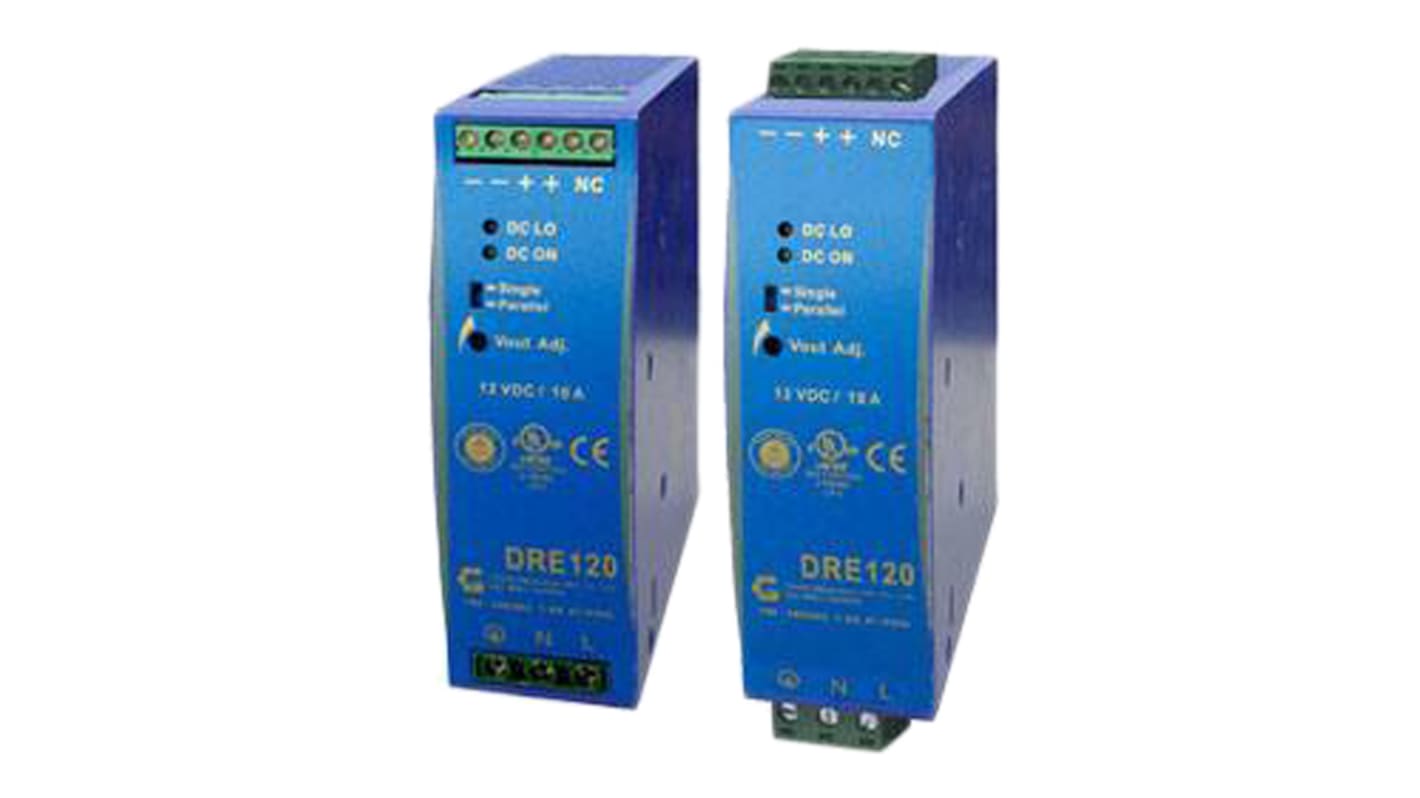

Chinfa DRE120 Switched Mode DIN Rail Power Supply, 230V ac, 12V dc dc Output, 10A Output, 120W
- RS Stock No.:
- 137-0392
- Mfr. Part No.:
- DRE120-12A
- Brand:
- Chinfa
24 In stock - FREE next working day delivery available
Added
Price Each
£92.25
(exc. VAT)
£110.70
(inc. VAT)
| Units | Per unit |
| 1 + | £92.25 |
- RS Stock No.:
- 137-0392
- Mfr. Part No.:
- DRE120-12A
- Brand:
- Chinfa
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
DRE Series DIN Rail PSUs
The DRE series from Chinfa is a compact AC-DC DIN Rail mountable power supply with built-in active PFC.
With a high efficiency of between 91% and 93%, the DRE series is cost effective and delivers reliability.
With a high efficiency of between 91% and 93%, the DRE series is cost effective and delivers reliability.
Features and Benefits
• Parallel function (switch selectable)
• Universal input
• Short circuit protection
• Internal input filter
• SELV components design
• 150% for peak load capability
Product Application Information
• Building controls
• Factory automation
• Industrial controls
• Instrumentation
• Door entry systems
• Electromagnetic drives
Switch Mode - Chinfa Electronics
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 12V dc |
| Output Current | 10A |
| AC or DC Output Voltage | dc |
| Input Voltage | 230V ac |
| Power Rating | 120W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 124.5mm |
| Width | 40mm |
| Depth | 116.6mm |
| Series | DRE120 |
| Output Voltage Adjustment Range | 0 → 1% |
| Special Features | Built-In Active PFC, High Efficiency |
| Ripple And Noise | 100mV |
| Minimum Temperature | -40°C |
| MTBF | 465000h |
| Mounting Type | DIN Rail Mount |
| Standards Met | EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1 |
| Maximum Temperature | +71°C |
| Load Regulation | ±1% |
