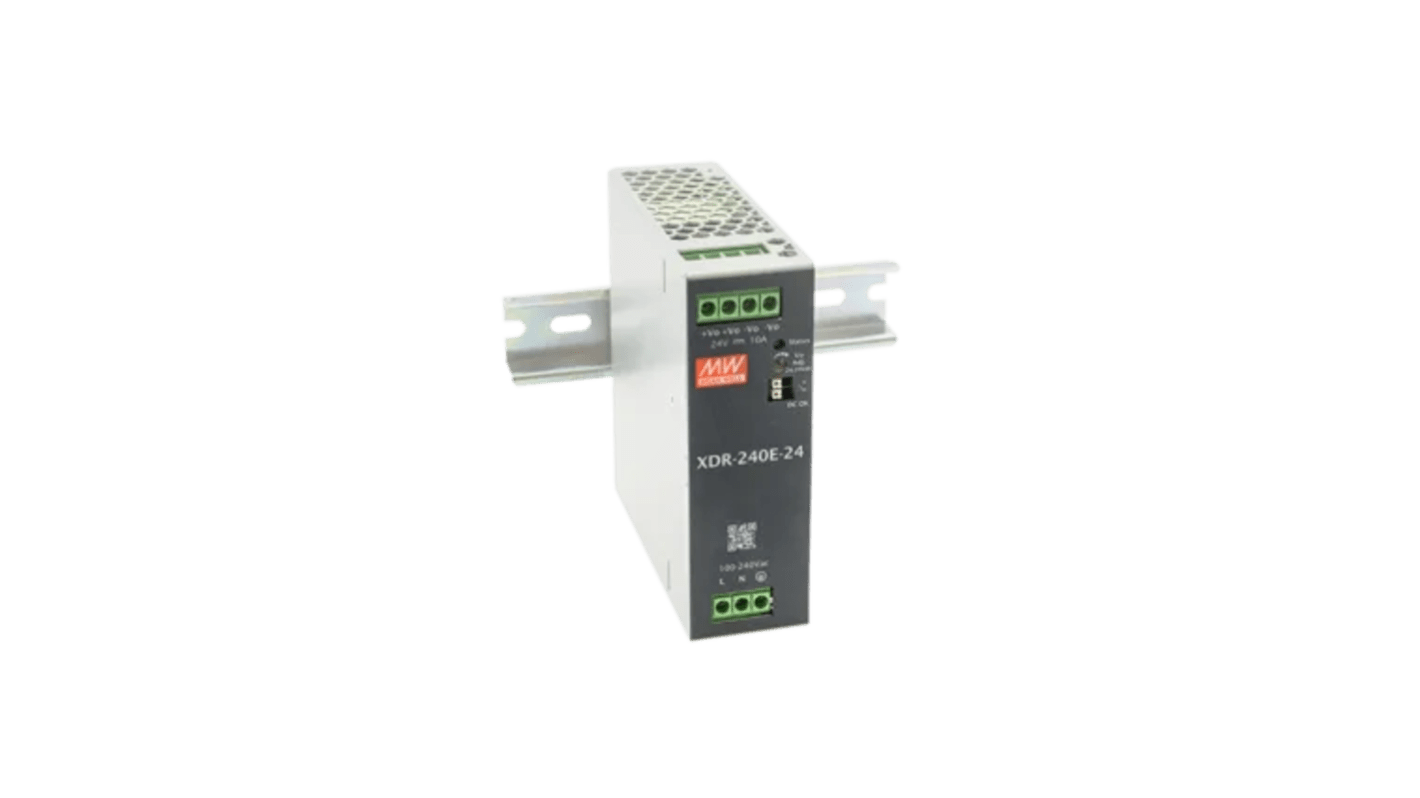

MEAN WELL XDR-240E DIN Rail DIN Rail Power Supply 264V ac AC/DC Input 24V, 10 A Output DC 240 W
- RS Stock No.:
- 566-868
- Mfr. Part No.:
- XDR-240E-24
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£41.93
(exc. VAT)
£50.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 111 unit(s) shipping from 08 June 2026
- Plus 16 unit(s) shipping from 08 June 2026
- Plus 48 unit(s) shipping from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £41.93 |
*price indicative
- RS Stock No.:
- 566-868
- Mfr. Part No.:
- XDR-240E-24
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | DIN Rail Power Supply | |
| Series | XDR-240E | |
| Sub Type | DIN Rail | |
| Maximum Output Voltage | 24V | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC/DC | |
| Number of Outputs | 1 | |
| Power | 240W | |
| Output Current | 10A | |
| Output Voltage Type | DC | |
| Remote signal DC-OK | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL61010, AS/NES61558-1, AS/NZS 61558-1/-2-16, AS/NZS 62368-1, BS EN/EN61558-1, BS EN/EN62368-1, BSMI CNS1-1, CCC GB4943.1, CNS15598-1, EAC, GB4943.1, KC62368-1, IEC61558-1, IEC62368-1, IS13252, TPTC004 | |
| Height | 116mm | |
| Depth | 125.2mm | |
| Width | 40mm | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 85V ac | |
| Efficiency | 94% | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type DIN Rail Power Supply | ||
Series XDR-240E | ||
Sub Type DIN Rail | ||
Maximum Output Voltage 24V | ||
Electrical Phase 1 | ||
Input Voltage Type AC/DC | ||
Number of Outputs 1 | ||
Power 240W | ||
Output Current 10A | ||
Output Voltage Type DC | ||
Remote signal DC-OK Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Standards/Approvals UL61010, AS/NES61558-1, AS/NZS 61558-1/-2-16, AS/NZS 62368-1, BS EN/EN61558-1, BS EN/EN62368-1, BSMI CNS1-1, CCC GB4943.1, CNS15598-1, EAC, GB4943.1, KC62368-1, IEC61558-1, IEC62368-1, IS13252, TPTC004 | ||
Height 116mm | ||
Depth 125.2mm | ||
Width 40mm | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 85V ac | ||
Efficiency 94% | ||
- COO (Country of Origin):
- CN
The MEANWELL Slim Industrial DIN Rail Power Supply features a compact 48 mm casing, ideal for saving space in system installations. It supports an ultra-wide input range of 85 to 264 VAC, making it suitable for global use. With up to 96% efficiency and standby power consumption below 1.2W, it promotes energy efficiency and carbon reduction. It includes built-in constant current, a fanless design, and operates reliably in temperatures from -40 to +70 °C. Ideal applications include industrial control systems, semiconductor fabrication equipment, factory automation, electro-mechanical apparatus, and battery chargers.
48 mm slim width
High efficiency up to 96%
Built-in DC OK relay contact
Can be installed on DIN rail TS-35/7.5 or 15
3 years warranty
