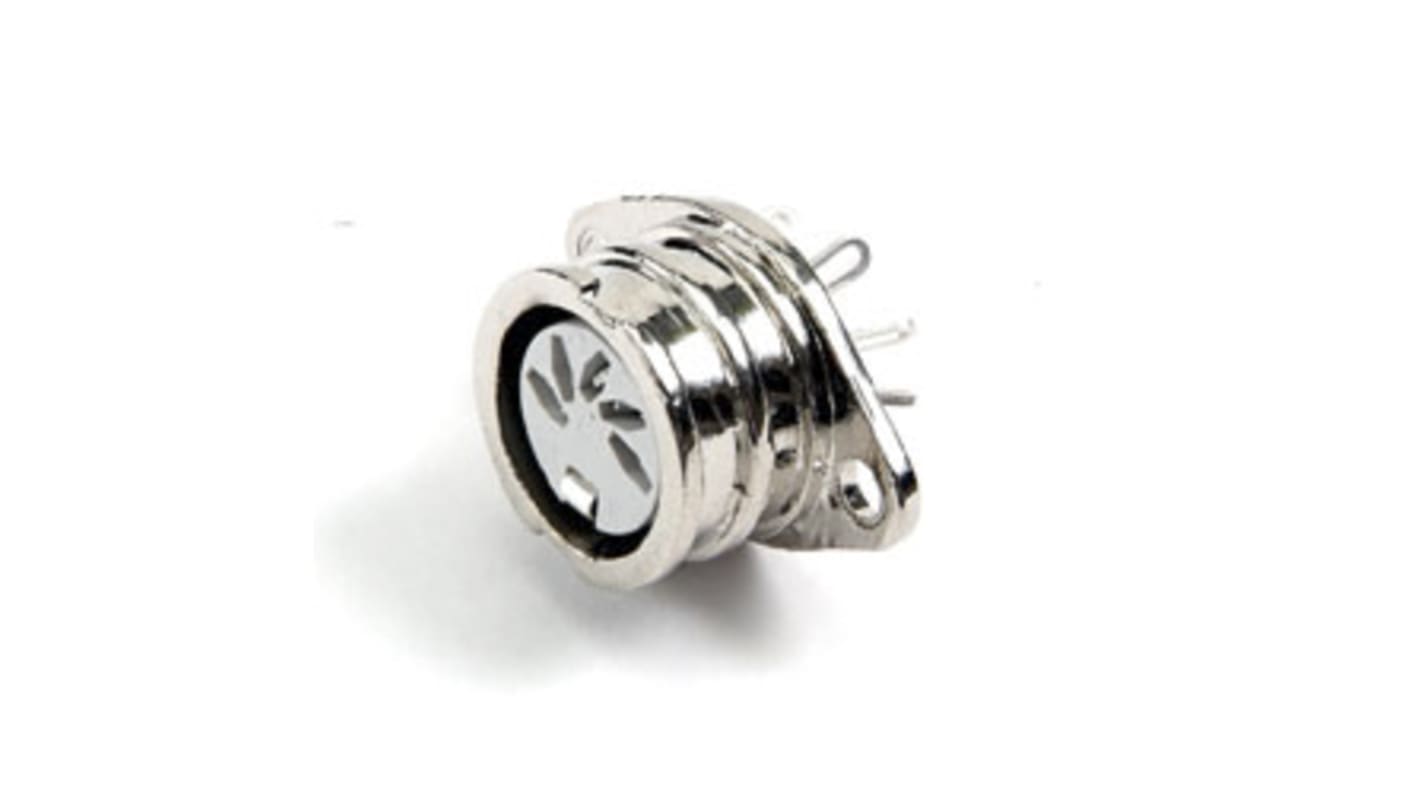

Deltron 5 Pole Din Socket, DIN 41524, DIN 45322, DIN 45326, DIN 45327, DIN 45329, 2A, 34 V ac/dc, Female, Chassis Mount
- RS Stock No.:
- 180-6685
- Mfr. Part No.:
- 593-0510
- Brand:
- Deltron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 180-6685
- Mfr. Part No.:
- 593-0510
- Brand:
- Deltron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron | |
| Number of Contacts | 5 | |
| Gender | Female | |
| Mounting Type | Chassis Mount | |
| Connector Size | Standard | |
| Termination Method | Solder | |
| Current Rating | 2A | |
| Voltage Rating | 34 V ac/dc | |
| DIN Number | DIN 41524, DIN 45322, DIN 45326, DIN 45327, DIN 45329 | |
| Pole Format | 5P | |
| Housing Material | Mazak | |
| Contact Material | Brass | |
| Contact Plating | Silver | |
| Minimum Operating Temperature | -25°C | |
| Series Number | 593 | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Deltron | ||
Number of Contacts 5 | ||
Gender Female | ||
Mounting Type Chassis Mount | ||
Connector Size Standard | ||
Termination Method Solder | ||
Current Rating 2A | ||
Voltage Rating 34 V ac/dc | ||
DIN Number DIN 41524, DIN 45322, DIN 45326, DIN 45327, DIN 45329 | ||
Pole Format 5P | ||
Housing Material Mazak | ||
Contact Material Brass | ||
Contact Plating Silver | ||
Minimum Operating Temperature -25°C | ||
Series Number 593 | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- GB
A range of professional chassis mounting sockets,designed for panel mounting via two flange fixing screws.These sockets mate with all standard DIN plugs,but are specifically designed for the ring lock plug range (592 SERIES),with a quick and simple quarter turn of the locking ring to secure the plug in the place.Can be colour coded via an interchangeable plastic ring ,available in six colours.
