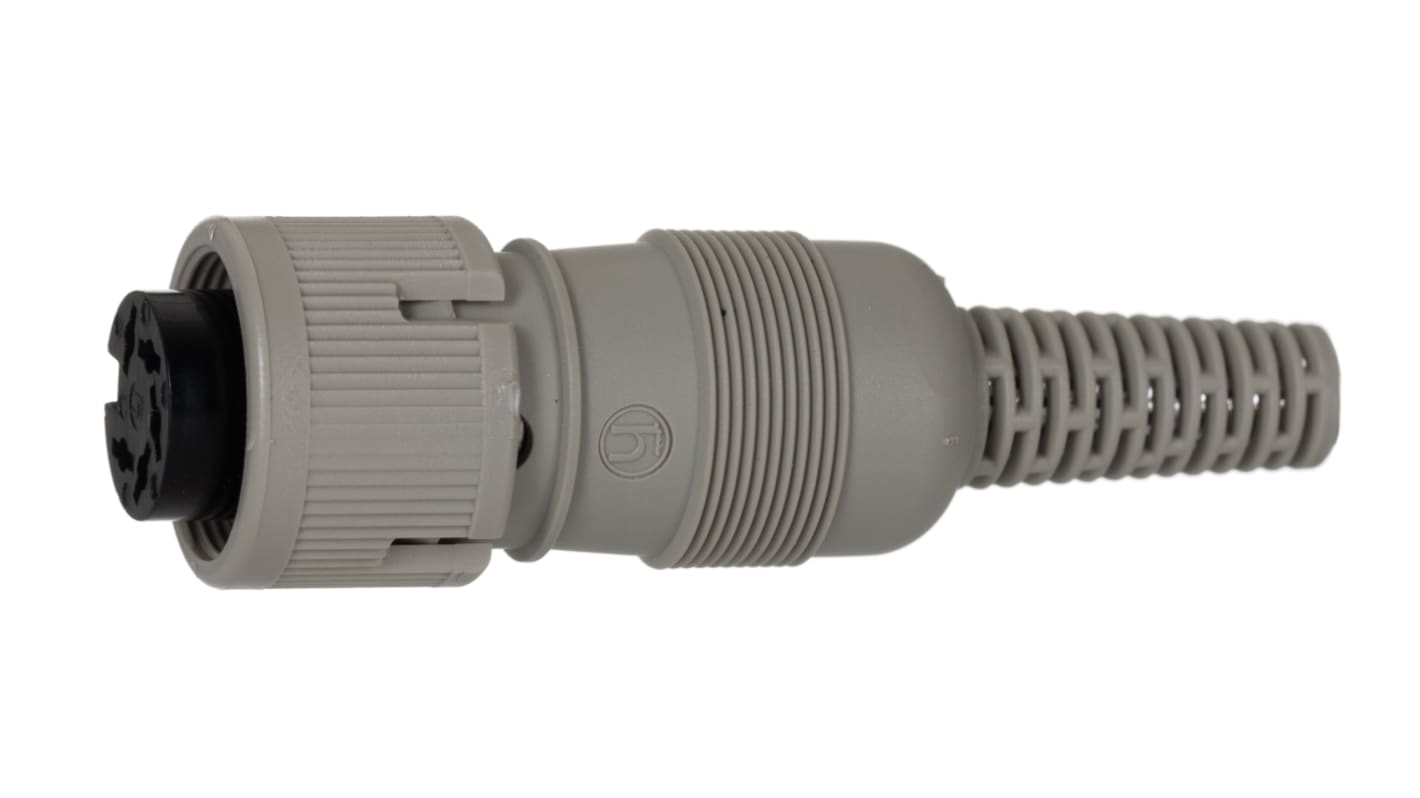

Hirschmann, MAK 5 Pole Din Socket, DIN 45322, 4A, 34 V ac/dc IP30, Screw Lock, Female, Cable Mount
- RS Stock No.:
- 776-331
- Distrelec Article No.:
- 142-50-026
- Mfr. Part No.:
- 930960517 MAK 5100
- Brand:
- Hirschmann
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 776-331
- Distrelec Article No.:
- 142-50-026
- Mfr. Part No.:
- 930960517 MAK 5100
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann | |
Number of Contacts | 5 | |
Gender | Female | |
Mounting Type | Cable Mount | |
Mating Type | Screw Lock | |
Termination Method | Solder | |
Body Orientation | Straight | |
Current Rating | 4A | |
Voltage Rating | 34 V ac/dc | |
IP Rating | IP30 | |
Shielded/Unshielded | Shielded | |
DIN Number | DIN 45322 | |
Series | MAK | |
Housing Material | PE | |
Maximum Operating Temperature | +60°C | |
Contact Plating | Tin | |
Contact Material | Brass | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Hirschmann | ||
Number of Contacts 5 | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Mating Type Screw Lock | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Current Rating 4A | ||
Voltage Rating 34 V ac/dc | ||
IP Rating IP30 | ||
Shielded/Unshielded Shielded | ||
DIN Number DIN 45322 | ||
Series MAK | ||
Housing Material PE | ||
Maximum Operating Temperature +60°C | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- CZ
RS Pro Cable Mounting Connectors
From RS Pro, these Screwlocking plastic DIN Connectors are suitable for various applications. Its secure screwlock mechanism prevents accidental disconnection, especially in environments where this could cause issues. All models are highly reliable and excellent quality.
Features & Benefits
Cable plugs and sockets fitted with solder bucket and solder tag terminations, respectively.
Cable acceptance 5.5 mm maximum
Tin plated contacts with UL94V-2 rated housings
Screening and integral strain relief
Belden Hirschmann DIN Socket, 5.5mm Cable Diameter, Solder Terminals - MAK Series - 930960517 MAK 5100
Keep your industrial equipment tuned in using this DIN socket from Belden's Hirschmann range. It's just what you need to connect devices electrically in your automated system such as proximity switches and level sensors. The straight body orientation is easy to handle and makes installation straightforward. Thanks to its low-resistance tin-plated brass socket, you can rest assured of high conductivity and power efficiency.
Features & Benefits
• IP30-rated housing is protected against tools and wires larger than 2.5mm
• Flame-retardant carrier material minimises the risk of a fire spreading
• Recyclable housing for a light carbon footprint
• Flame-retardant carrier material minimises the risk of a fire spreading
• Recyclable housing for a light carbon footprint
Applications
• Telecommunication centres
• Security systems
• Broadcasting facilities
• Media rooms
• Security systems
• Broadcasting facilities
• Media rooms
Does this DIN socket have durable housing?
Yes, this connector features a hardwearing PE housing that resists chemicals and corrosion. This means you can count on its extended lifespan in harsh industrial environments.
