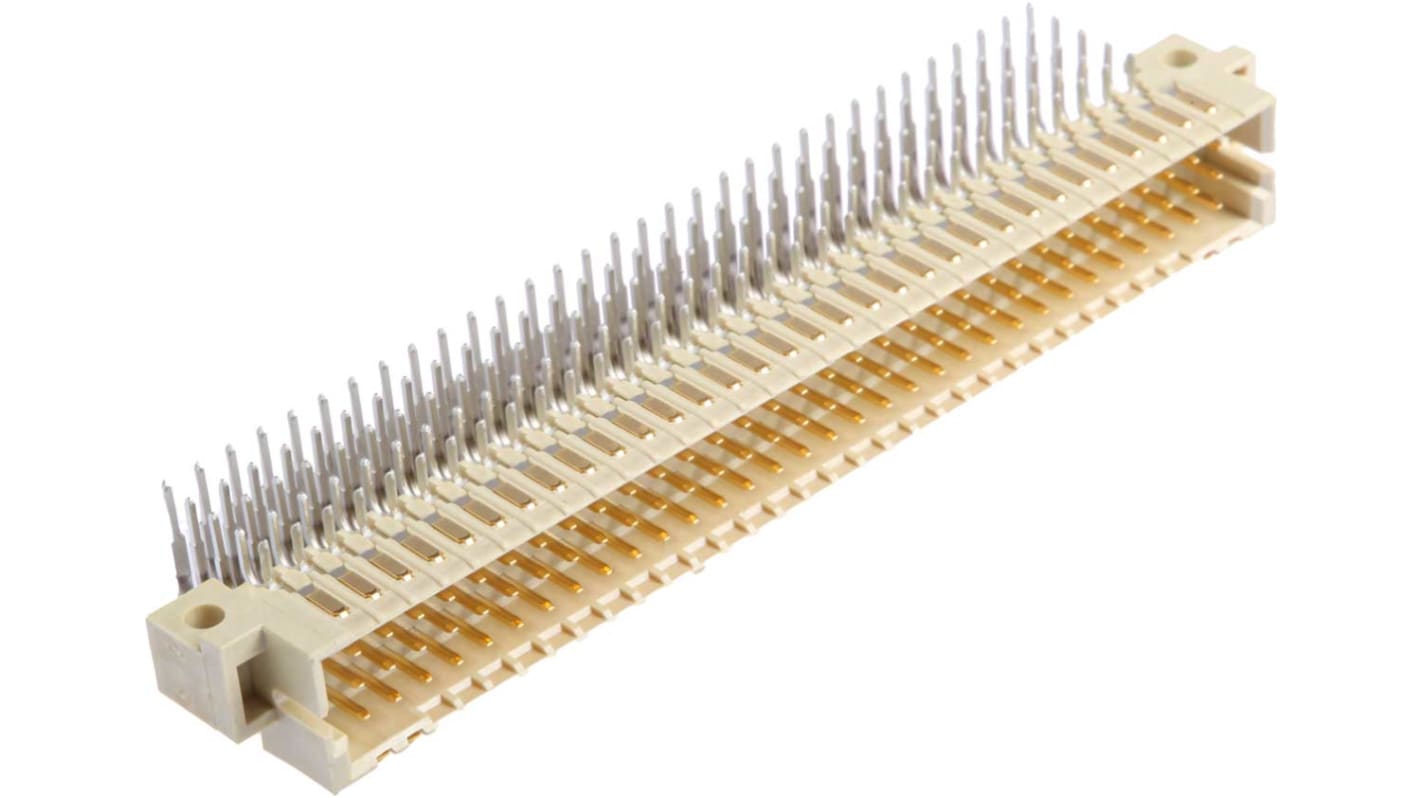

HARTING har-bus 64 160 Way 2.54mm Pitch, Type Connector Class C1, C2, 5 Row, Right Angle DIN 41612 Connector, Plug

View all DIN 41612 Connectors
Bulk discount available

Subtotal (1 unit)*

£23.51

(exc. VAT)

£28.21

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13 unit(s) ready to ship
  • Plus 91 unit(s) shipping from 15 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 19£23.51
20 - 74£19.00
75 - 299£17.82
300 - 599£17.02
600 +£16.46

*price indicative

Packaging Options:

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
HARTING har-bus 64 160 Way 2.54mm Pitch, Type Shrouded Header, 5 Row, Right Angle DIN 41612 Connector, Plug
RS Stock No.
922-9749

Each (In a Tube of 5)

£24.442

(exc. VAT)

£29.33

(inc. VAT)

RS Stock No.:
235-6406
Mfr. Part No.:
02011602101
Brand:
HARTING
Find similar products by selecting one or more attributes.
Select all

Brand

HARTING

Number of Contacts

160

Gender

Male

Number of Rows

5

Body Orientation

Right Angle

Termination Method

Solder

Row Loading

z/a/b/c/d

Type

Connector

Pitch

2.54mm

Mounting Type

Through Hole

Contact Plating

Gold over Nickel

Class Rating

C1, C2

Current Rating

1A

Contact Material

Copper Alloy

Series

har-bus 64

Housing Material

Liquid Crystal Polymer

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+125°C

COO (Country of Origin):
DE

Harting har-bus 64 Series DIN 41612 Connector, 160 Contacts, Right Angle Body Orientation - 02011602101


This DIN connector is a high-quality electrical component designed for reliable performance in various applications. With 160 contacts arranged in a right-angle configuration and a solder termination method, this through-hole connector offers robust connectivity. Constructed from liquid crystal polymer, it withstands harsh operating conditions, making it suitable for a wide range of environments.

Features & Benefits


• High contact count ensures versatile connectivity options
• Right-angle design facilitates space-efficient installation
• Solder termination method ensures secure and durable connections
• Gold plating over nickel reduces contact resistance for improved performance
• Operating temperature range of -55°C to +125°C enhances reliability
• The liquid crystal polymer housing provides resilience against environmental factors

Applications


• Used in automation systems for reliable signal transmission
• Ideal for PCB connections in electronic device assemblies
• Utilised in electrical panels for streamlined wiring solutions
• Suitable for automotive requiring compact connectors

What is the significance of the right-angle design in this connector?


The right-angle design allows for a more compact layout, enabling efficient use of space in tightly packed circuits and assemblies. This configuration helps maintain clear pathways for other components on PCBs, enhancing overall device design.

How does the gold plating affect the performance of this connector?


Gold plating over nickel significantly lowers contact resistance, ensuring a reliable and consistent electrical connection. This feature is particularly important in high-frequency applications where signal integrity is paramount.

What is the advantage of using a solder termination method?


Using a solder termination method provides a strong mechanical connection, ensuring durability in demanding applications. This method is favoured in environments where connectors might experience vibration or thermal cycling.

Can this connector withstand adverse environmental conditions?


Yes, with an operating temperature range from -55°C to +125°C, it is well-suited for harsh conditions, making it ideal for industrial applications where temperature fluctuations occur.


DIN41612 - Harting Range


DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.
