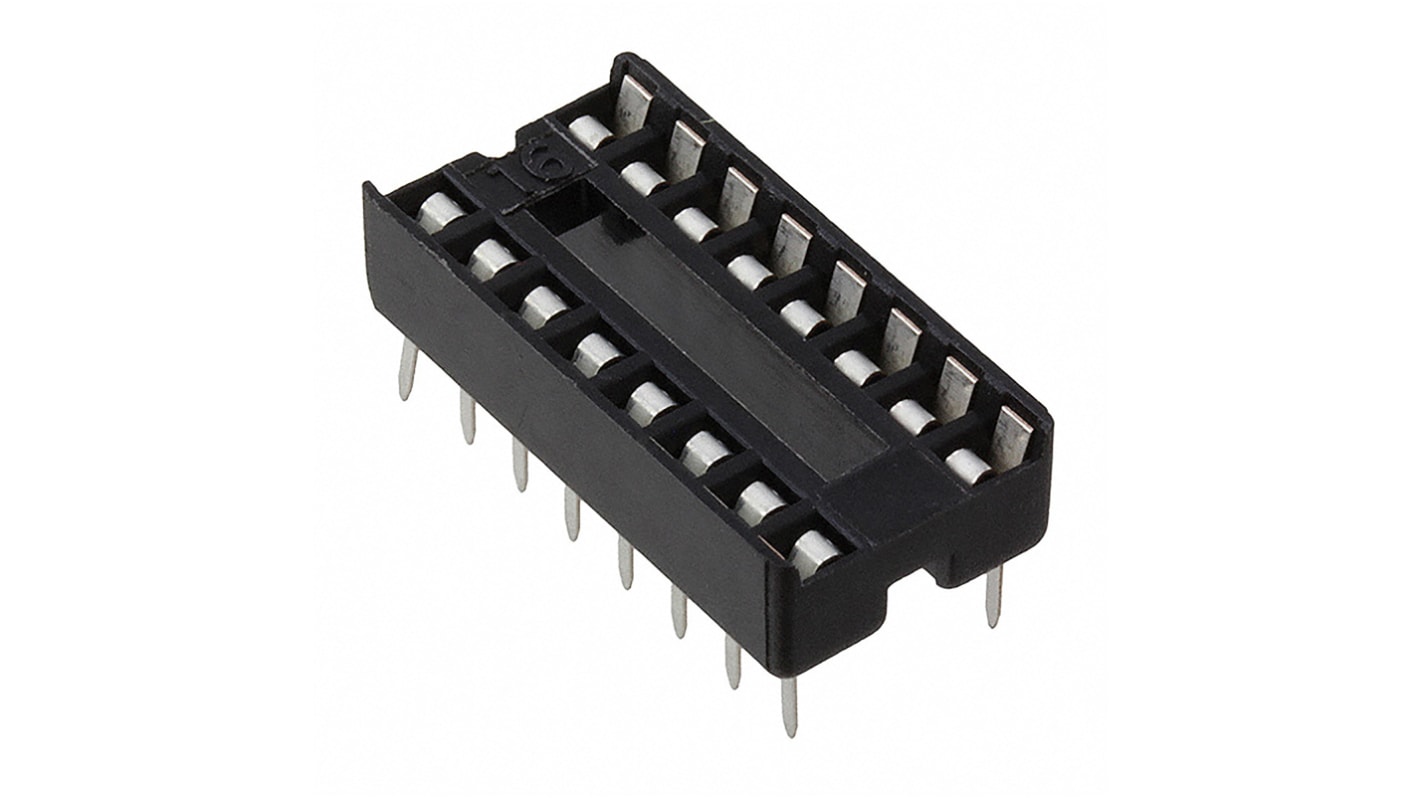

Amphenol ICC 2.54mm Pitch Straight 16 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A
- RS Stock No.:
- 863-2866
- Mfr. Part No.:
- DILB16P-223TLF
- Brand:
- Amphenol ICC
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 50)
£0.142
(exc. VAT)
£0.17
(inc. VAT)
- RS Stock No.:
- 863-2866
- Mfr. Part No.:
- DILB16P-223TLF
- Brand:
- Amphenol ICC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol ICC | |
| Number of Contacts | 16 | |
| Mounting Type | Through Hole | |
| Pin Type | Stamped | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Tin over Nickel | |
| Current Rating | 1A | |
| Orientation | Straight | |
| Length | 20.32mm | |
| Width | 10.16mm | |
| Depth | 5.1mm | |
| Dimensions | 20.32 x 10.16 x 5.1mm | |
| Housing Material | Polyamide | |
| Maximum Operating Temperature | +105°C | |
| Voltage Rating | 200 V ac | |
| Minimum Operating Temperature | -55°C | |
| Contact Material | Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Amphenol ICC | ||
Number of Contacts 16 | ||
Mounting Type Through Hole | ||
Pin Type Stamped | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Tin over Nickel | ||
Current Rating 1A | ||
Orientation Straight | ||
Length 20.32mm | ||
Width 10.16mm | ||
Depth 5.1mm | ||
Dimensions 20.32 x 10.16 x 5.1mm | ||
Housing Material Polyamide | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 200 V ac | ||
Minimum Operating Temperature -55°C | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- TW
FCI DIP Sockets Stamped and Formed
A range of open frame DIP sockets from FCI. These PCB through hole mount sockets are stamped and formed, have a 2.54mm spacing (contact) with a 7.62mm row spacing.
