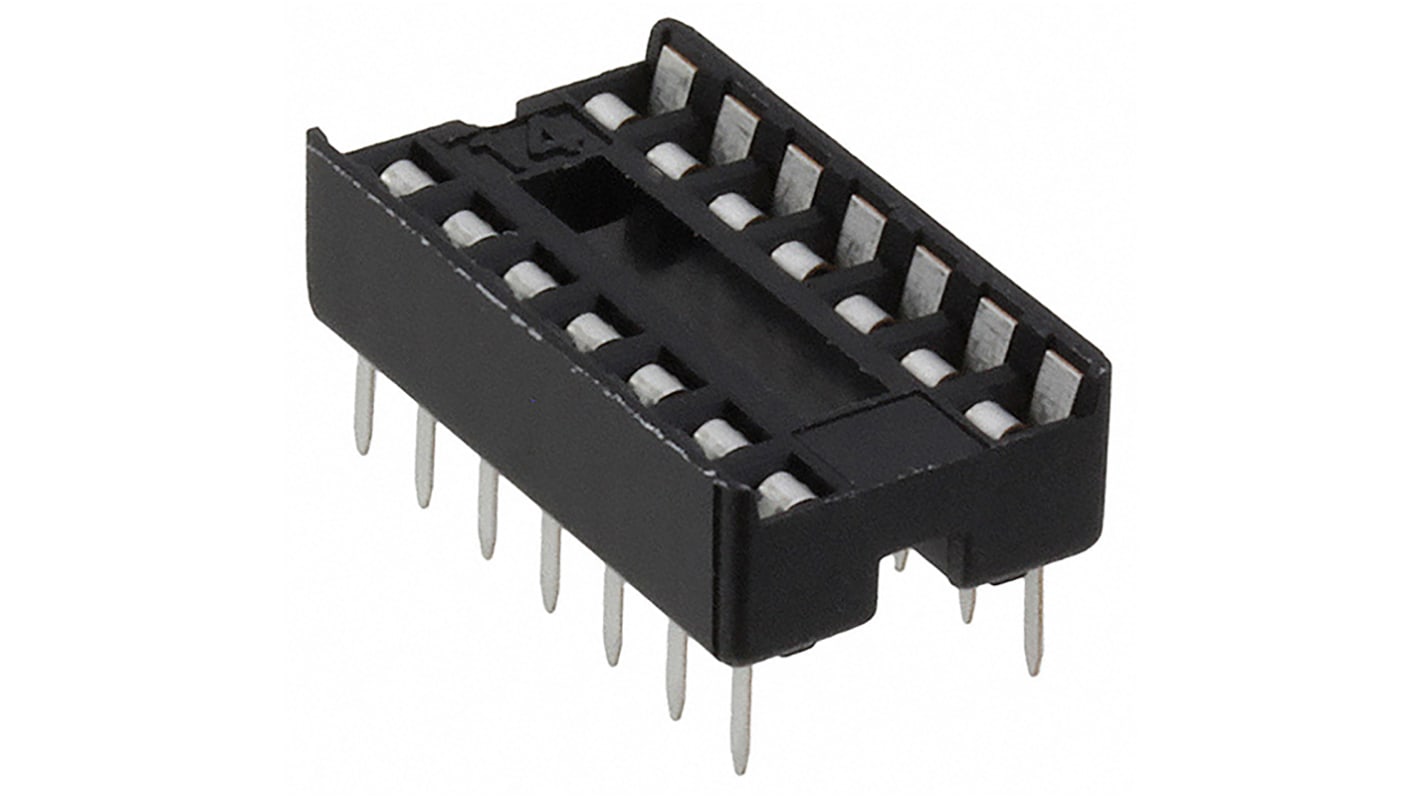

Amphenol ICC 2.54mm Pitch Straight 14 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A
- RS Stock No.:
- 863-2829
- Mfr. Part No.:
- DILB14P-223TLF
- Brand:
- Amphenol ICC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 50)
£0.13
(exc. VAT)
£0.16
(inc. VAT)
- RS Stock No.:
- 863-2829
- Mfr. Part No.:
- DILB14P-223TLF
- Brand:
- Amphenol ICC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol ICC | |
| Number of Contacts | 14 | |
| Mounting Type | Through Hole | |
| Pin Type | Stamped | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Tin over Nickel | |
| Current Rating | 1A | |
| Orientation | Straight | |
| Length | 17.78mm | |
| Width | 10.16mm | |
| Depth | 5.1mm | |
| Dimensions | 17.78 x 10.16 x 5.1mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Housing Material | Polyamide | |
| Contact Material | Copper Alloy | |
| Voltage Rating | 200 V ac | |
Select all | ||
|---|---|---|
Brand Amphenol ICC | ||
Number of Contacts 14 | ||
Mounting Type Through Hole | ||
Pin Type Stamped | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Tin over Nickel | ||
Current Rating 1A | ||
Orientation Straight | ||
Length 17.78mm | ||
Width 10.16mm | ||
Depth 5.1mm | ||
Dimensions 17.78 x 10.16 x 5.1mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Housing Material Polyamide | ||
Contact Material Copper Alloy | ||
Voltage Rating 200 V ac | ||
- COO (Country of Origin):
- TW
FCI DIP Sockets Stamped and Formed
A range of open frame DIP sockets from FCI. These PCB through hole mount sockets are stamped and formed, have a 2.54mm spacing (contact) with a 7.62mm row spacing.
