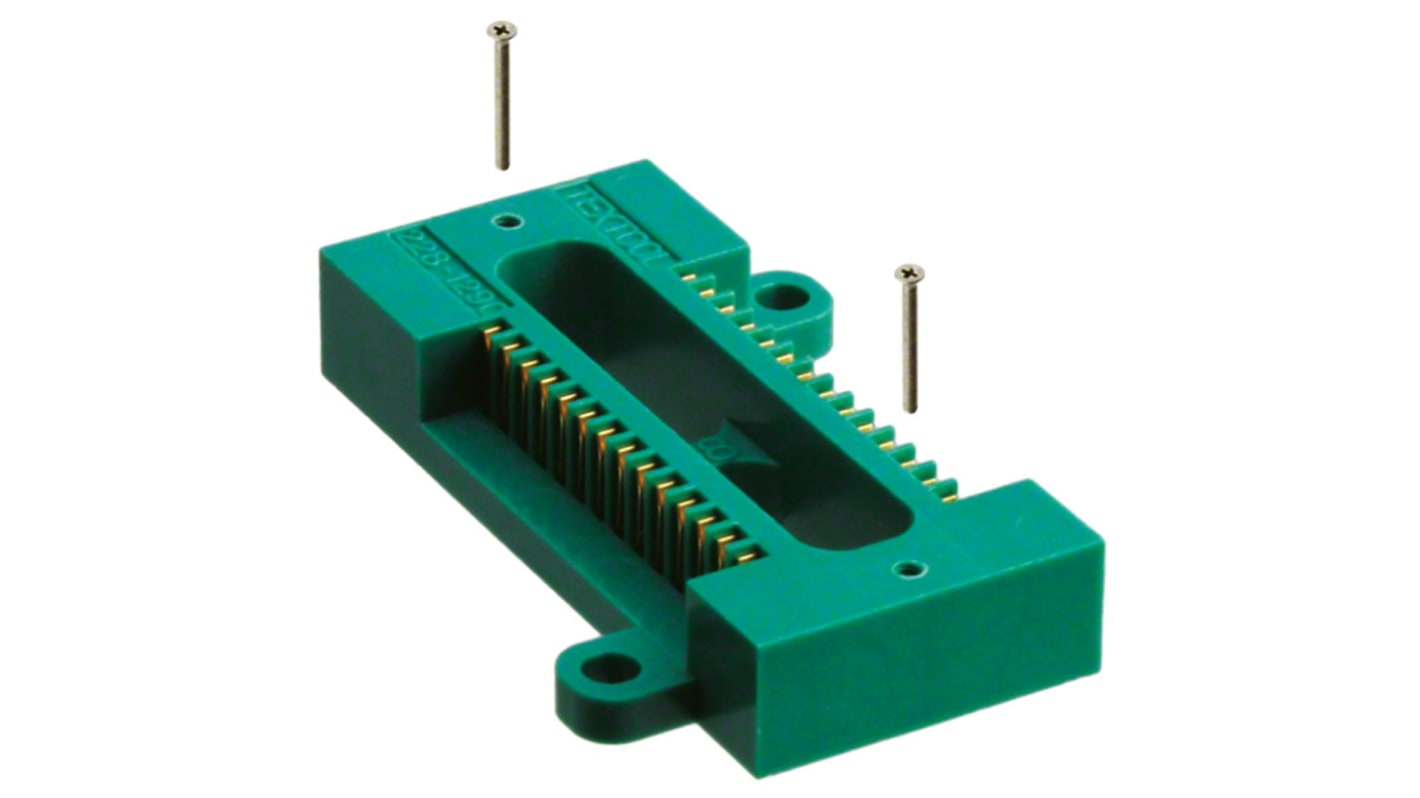

3M, 2281290 1.78mm Pitch Straight 28 Way, Through Hole Closed Frame ZIF IC Dip Socket, 1A
- RS Stock No.:
- 828-0342
- Mfr. Part No.:
- 228-1290-09-0602J
- Brand:
- 3M
Discontinued
- RS Stock No.:
- 828-0342
- Mfr. Part No.:
- 228-1290-09-0602J
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 28 | |
| Mounting Type | Through Hole | |
| Pitch | 1.78mm | |
| Row Width | 10.16mm | |
| Frame Type | Closed Frame | |
| Termination Method | Solder | |
| Contact Plating | Gold over Nickel | |
| Current Rating | 1A | |
| Orientation | Straight | |
| Length | 40.5mm | |
| Width | 27.9mm | |
| Depth | 6.9mm | |
| Dimensions | 40.5 x 27.9 x 6.9mm | |
| Series | 2281290 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Housing Material | Glass Filled Polysulfone | |
| Contact Material | Beryllium Copper | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 28 | ||
Mounting Type Through Hole | ||
Pitch 1.78mm | ||
Row Width 10.16mm | ||
Frame Type Closed Frame | ||
Termination Method Solder | ||
Contact Plating Gold over Nickel | ||
Current Rating 1A | ||
Orientation Straight | ||
Length 40.5mm | ||
Width 27.9mm | ||
Depth 6.9mm | ||
Dimensions 40.5 x 27.9 x 6.9mm | ||
Series 2281290 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Housing Material Glass Filled Polysulfone | ||
Contact Material Beryllium Copper | ||
- COO (Country of Origin):
- JP
2.0mm Headers 1552 Series
These 3M 1552 Series Latch/Eject Headers are suitable to high vibration applications due to the retention of the latches by roll pins. The wiping area of the contacts of the 1552 Series Latch/Eject Headers are 0.76 μm gold over nickel with the 2.84 mm long solder tails being tin plated.
Note
For a mating Ribbon Cable IDC socket see stock number 749-4768 .
