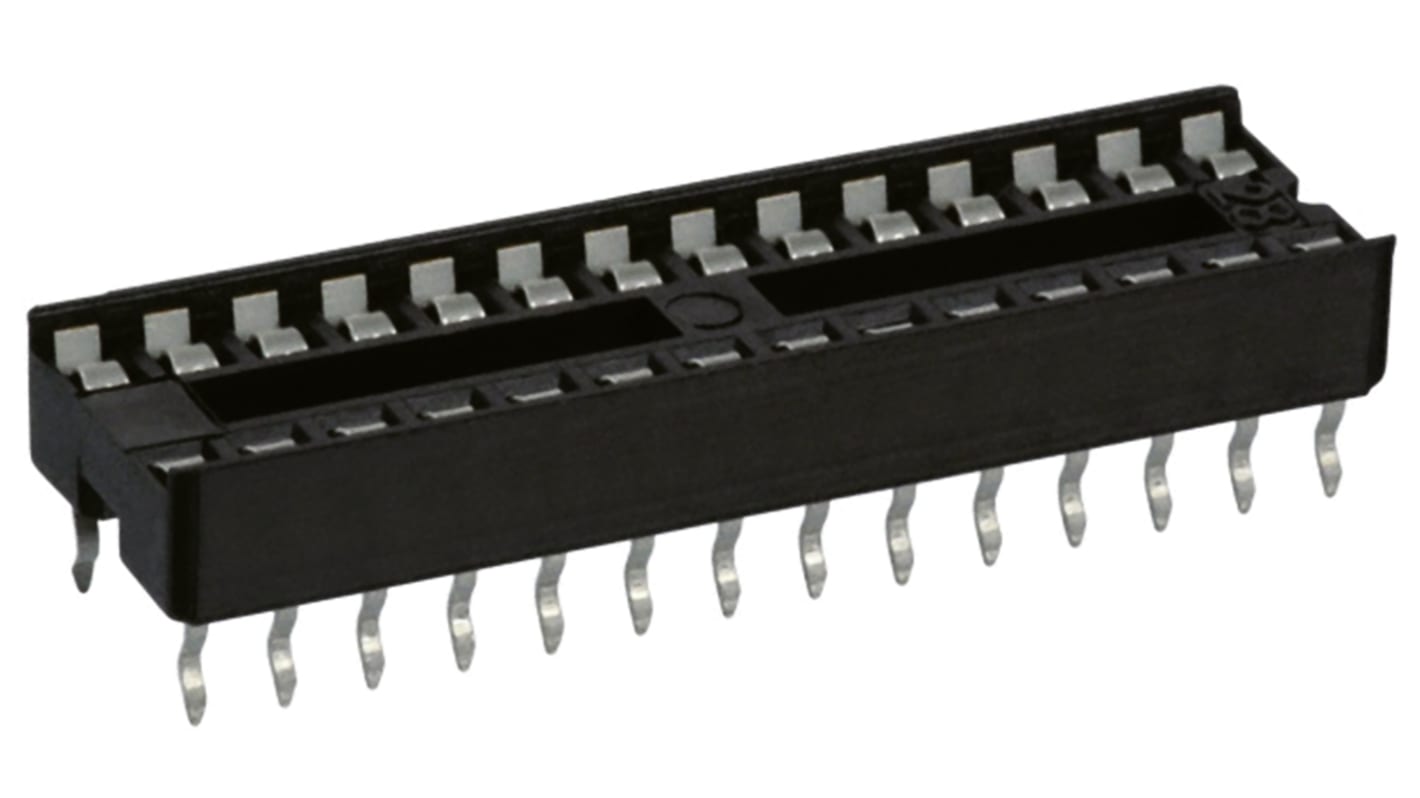

3M, 4800 2.54mm Pitch Straight 28 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A
- RS Stock No.:
- 827-3559
- Mfr. Part No.:
- 4828-3004-CP
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£0.666
(exc. VAT)
£0.799
(inc. VAT)
- RS Stock No.:
- 827-3559
- Mfr. Part No.:
- 4828-3004-CP
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 28 | |
| Mounting Type | Through Hole | |
| Pin Type | Stamped | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Tin over Nickel | |
| Current Rating | 1A | |
| Orientation | Straight | |
| Length | 35.43mm | |
| Width | 10.16mm | |
| Depth | 5.08mm | |
| Dimensions | 35.43 x 10.16 x 5.08mm | |
| Housing Material | Glass-Filled PET | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -25°C | |
| Series | 4800 | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 28 | ||
Mounting Type Through Hole | ||
Pin Type Stamped | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Tin over Nickel | ||
Current Rating 1A | ||
Orientation Straight | ||
Length 35.43mm | ||
Width 10.16mm | ||
Depth 5.08mm | ||
Dimensions 35.43 x 10.16 x 5.08mm | ||
Housing Material Glass-Filled PET | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature -25°C | ||
Series 4800 | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- US
3M 4800 Series DIP Sockets
3M 4800 series stamped and formed DIP sockets are a dual leaf PCB socket that offer high compression contacts to provide highly reliable termination.
Side and End Stackable
Polyester Glass Filled Marking Insulation Material
Polyester Glass Filled Marking Insulation Material
