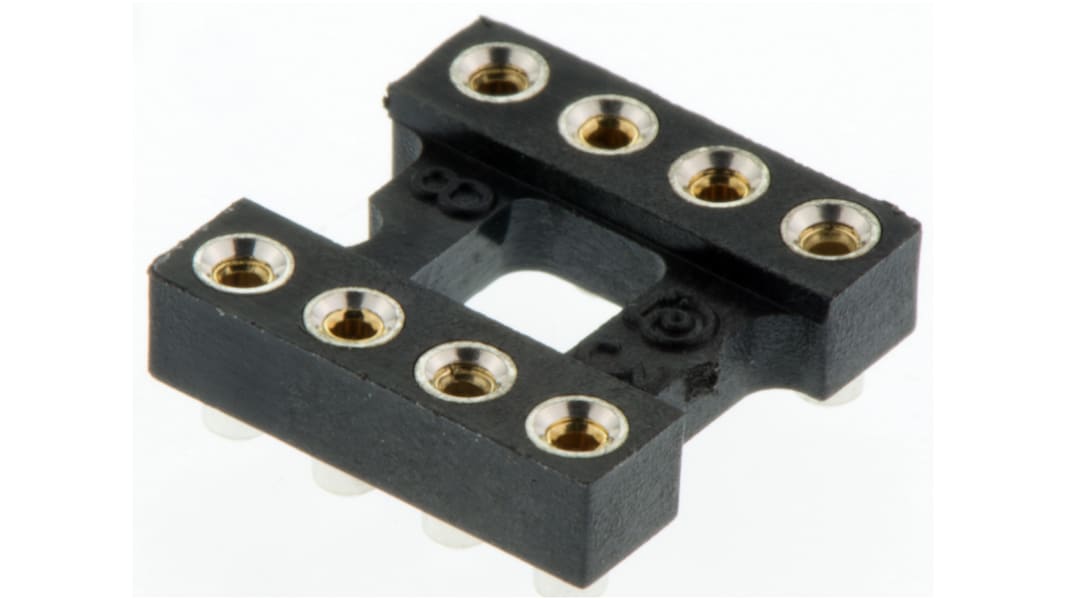

Aries Electronics 2.54mm Pitch Vertical 8 Way, SMT Open Frame IC Dip Socket, 3A
- RS Stock No.:
- 710-6629
- Mfr. Part No.:
- 08-3518-00
- Brand:
- Aries Electronics
Bulk discount available
Subtotal (1 unit)*
£2.33
(exc. VAT)
£2.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.33 |
| 10 - 24 | £1.98 |
| 25 - 49 | £1.69 |
| 50 - 99 | £1.53 |
| 100 + | £1.35 |
*price indicative
- RS Stock No.:
- 710-6629
- Mfr. Part No.:
- 08-3518-00
- Brand:
- Aries Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aries Electronics | |
| Number of Contacts | 8 | |
| Mounting Type | Surface Mount | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Gold over Nickel | |
| Current Rating | 3A | |
| Orientation | Vertical | |
| Length | 10.16mm | |
| Width | 3.71mm | |
| Depth | 10.16mm | |
| Dimensions | 10.16 x 3.71 x 10.16mm | |
| Minimum Operating Temperature | -55°C | |
| Contact Material | Beryllium Copper | |
| Housing Material | Nylon | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Aries Electronics | ||
Number of Contacts 8 | ||
Mounting Type Surface Mount | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Gold over Nickel | ||
Current Rating 3A | ||
Orientation Vertical | ||
Length 10.16mm | ||
Width 3.71mm | ||
Depth 10.16mm | ||
Dimensions 10.16 x 3.71 x 10.16mm | ||
Minimum Operating Temperature -55°C | ||
Contact Material Beryllium Copper | ||
Housing Material Nylon | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- US
Series 518 Surface Mount Open Frame Collet Sockets
Open frame allows for more efficient utilization of board space and better cooling. Compatible with automatic insertion equipment. Side-to-side and end-to-end stackable.
Body material is black UL 94V-0 Glass-Filled 4/6 Nylon
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTMB16-000
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-01.
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin;
Normal Force=140 grams/pin; based on a .018 [.46] diameter test lead.
Accepts leads .015-.025 mm diameter, 2.54-3.18 mm long.
Suggested PCB pad size=1.60 mm diameter
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTMB16-000
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-01.
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin;
Normal Force=140 grams/pin; based on a .018 [.46] diameter test lead.
Accepts leads .015-.025 mm diameter, 2.54-3.18 mm long.
Suggested PCB pad size=1.60 mm diameter
