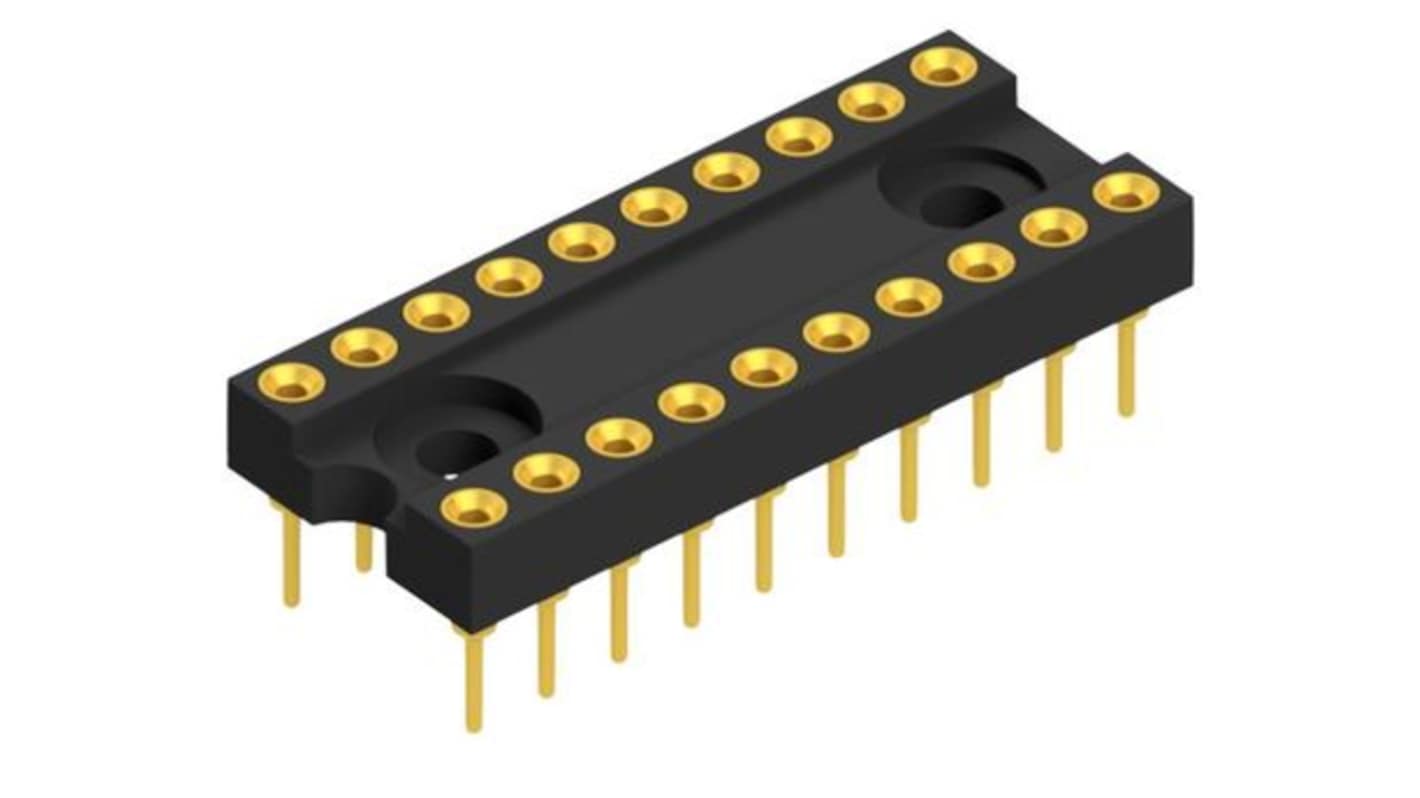

Fischer Elektronik, DIL 2.54mm Pitch Straight 20 Way, Through Hole Closed Frame IC Dip Socket, 1.5A
- RS Stock No.:
- 577-625
- Mfr. Part No.:
- DIL 20 EG
- Brand:
- Fischer Elektronik
Bulk discount available
Subtotal (1 pack of 5 units)*
£15.94
(exc. VAT)
£19.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 - 4 | £15.94 | £3.188 |
5 + | £14.67 | £2.934 |
*price indicative
- RS Stock No.:
- 577-625
- Mfr. Part No.:
- DIL 20 EG
- Brand:
- Fischer Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Fischer Elektronik | |
Number of Contacts | 20 | |
Mounting Type | Through Hole | |
Pitch | 2.54mm | |
Frame Type | Closed Frame | |
Current Rating | 1.5A | |
Orientation | Straight | |
Series | DIL | |
Select all | ||
---|---|---|
Brand Fischer Elektronik | ||
Number of Contacts 20 | ||
Mounting Type Through Hole | ||
Pitch 2.54mm | ||
Frame Type Closed Frame | ||
Current Rating 1.5A | ||
Orientation Straight | ||
Series DIL | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Panasonic ERA Series Size 0603 0.1W 0.1% 10ppm Metal Film Chip Resistors 47Ω-100kΩ
ERA 3A metal film resistors from Panasonic offer stability in high humidity and high temperature environments, while remaining highly accurate. This series of 0603 of chip resistors provides a high performance solution and features excellent non-linearity.
AEC-Q200 qualified
Small temperature coefficient of resistance
Small resistance tolerance
Excellent linearity and low current noise
Power rating options between 0.05 W and 0.25 W
Small temperature coefficient of resistance
Small resistance tolerance
Excellent linearity and low current noise
Power rating options between 0.05 W and 0.25 W
Applications
These metal film resistors are AEC-Q200 qualified and are suitable for automotive applications.
Standards
IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
The Fischer Elektronik High-Precision Sockets and Plugs for DIL-IC feature a closed frame design, ensuring a secure and stable connection for dual in-line integrated circuits (DIL-ICs). These precision sockets and connectors operate within a temperature range of -40°C to +200°C, making them suitable for demanding environments. Classified under UL 94 V-0, they meet high flammability resistance standards, ensuring reliability and safety in electronic applications.
Contact material is CuZn alloy
Contact spring is gold-plated
Contact spring is gold-plated
