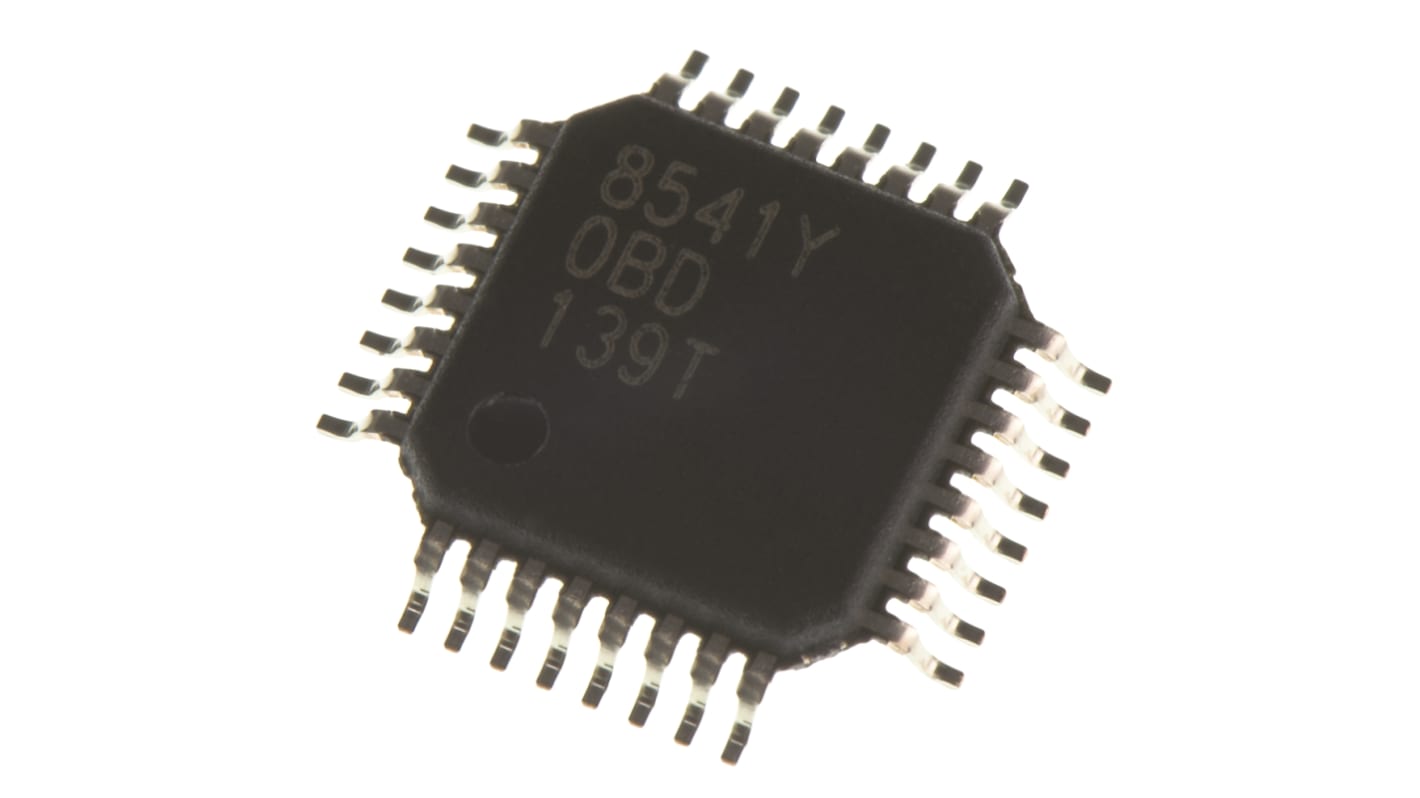

Texas Instruments, DAC 16 bit-, 100ksps, -0.8%FSR Parallel, 32-Pin TQFP
- RS Stock No.:
- 922-2622
- Mfr. Part No.:
- DAC8541Y/250
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 922-2622
- Mfr. Part No.:
- DAC8541Y/250
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Architecture | Resistor String | |
| Resolution | 16 bit | |
| Conversion Rate | 100ksps | |
| Full Scale Error | -0.8%FSR | |
| Integral Nonlinearity Error | ±0.098%FSR | |
| Number of DAC Channels | 1 | |
| Mounting Type | Surface Mount | |
| Package Type | TQFP | |
| Pin Count | 32 | |
| Maximum Settling Time | 10µs | |
| Digital Interface Type | Parallel | |
| Output Polarity | Unipolar | |
| Voltage Reference | External | |
| Power Supply Type | Single | |
| Typical Single Supply Voltage | 3.3 V, 5 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | 85 °C | |
| Dimensions | 5 x 5 x 1mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Architecture Resistor String | ||
Resolution 16 bit | ||
Conversion Rate 100ksps | ||
Full Scale Error -0.8%FSR | ||
Integral Nonlinearity Error ±0.098%FSR | ||
Number of DAC Channels 1 | ||
Mounting Type Surface Mount | ||
Package Type TQFP | ||
Pin Count 32 | ||
Maximum Settling Time 10µs | ||
Digital Interface Type Parallel | ||
Output Polarity Unipolar | ||
Voltage Reference External | ||
Power Supply Type Single | ||
Typical Single Supply Voltage 3.3 V, 5 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature 85 °C | ||
Dimensions 5 x 5 x 1mm | ||
Digital to Analogue Converters 16 Bit, Texas Instruments
A range of 16-bit Digital to Analogue converters from Texas Instruments for general purpose and specialized audio applications. The range includes both Parallel and Serial interface types and covers various DAC architectures including Current Steering and Delta-Sigma types.
