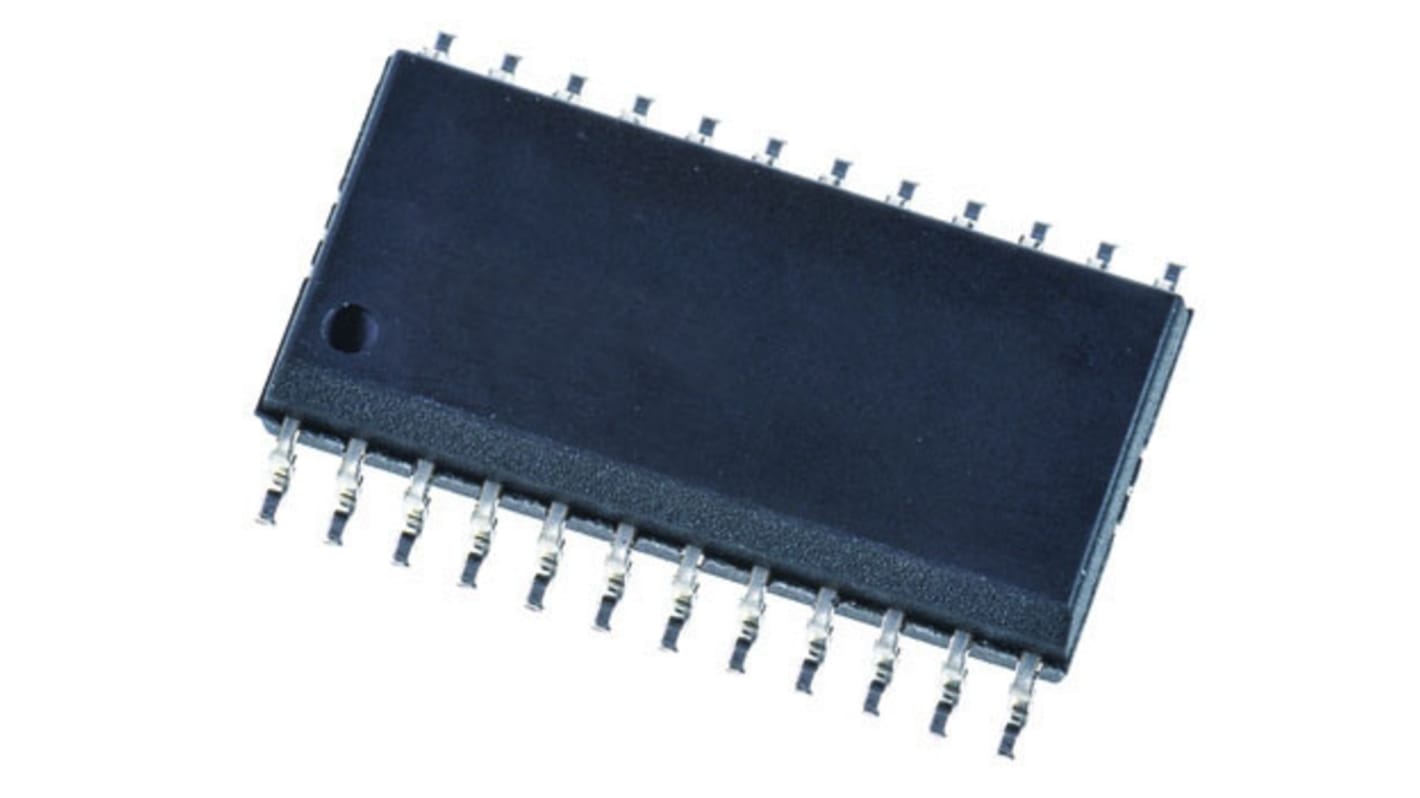

Texas Instruments, DAC Quad 8 bit-, 143ksps, ±2LSB Parallel, 24-Pin SOIC
- RS Stock No.:
- 662-1789
- Mfr. Part No.:
- TLC7225CDW
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 662-1789
- Mfr. Part No.:
- TLC7225CDW
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Architecture | R-2R, Resistor String | |
| Resolution | 8 bit | |
| Conversion Rate | 143ksps | |
| Full Scale Error | ±2LSB | |
| Integral Nonlinearity Error | ±1LSB | |
| Number of DAC Channels | 4 | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 24 | |
| Maximum Settling Time | 7µs | |
| Digital Interface Type | Parallel | |
| Output Polarity | Bipolar, Unipolar | |
| Voltage Reference | External | |
| Typical Single Supply Voltage | 15 V | |
| Power Supply Type | Dual, Single | |
| Maximum Operating Temperature | 70 °C | |
| Minimum Operating Temperature | 0 °C | |
| Dimensions | 15.4 x 7.52 x 2.35mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Architecture R-2R, Resistor String | ||
Resolution 8 bit | ||
Conversion Rate 143ksps | ||
Full Scale Error ±2LSB | ||
Integral Nonlinearity Error ±1LSB | ||
Number of DAC Channels 4 | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 24 | ||
Maximum Settling Time 7µs | ||
Digital Interface Type Parallel | ||
Output Polarity Bipolar, Unipolar | ||
Voltage Reference External | ||
Typical Single Supply Voltage 15 V | ||
Power Supply Type Dual, Single | ||
Maximum Operating Temperature 70 °C | ||
Minimum Operating Temperature 0 °C | ||
Dimensions 15.4 x 7.52 x 2.35mm | ||
