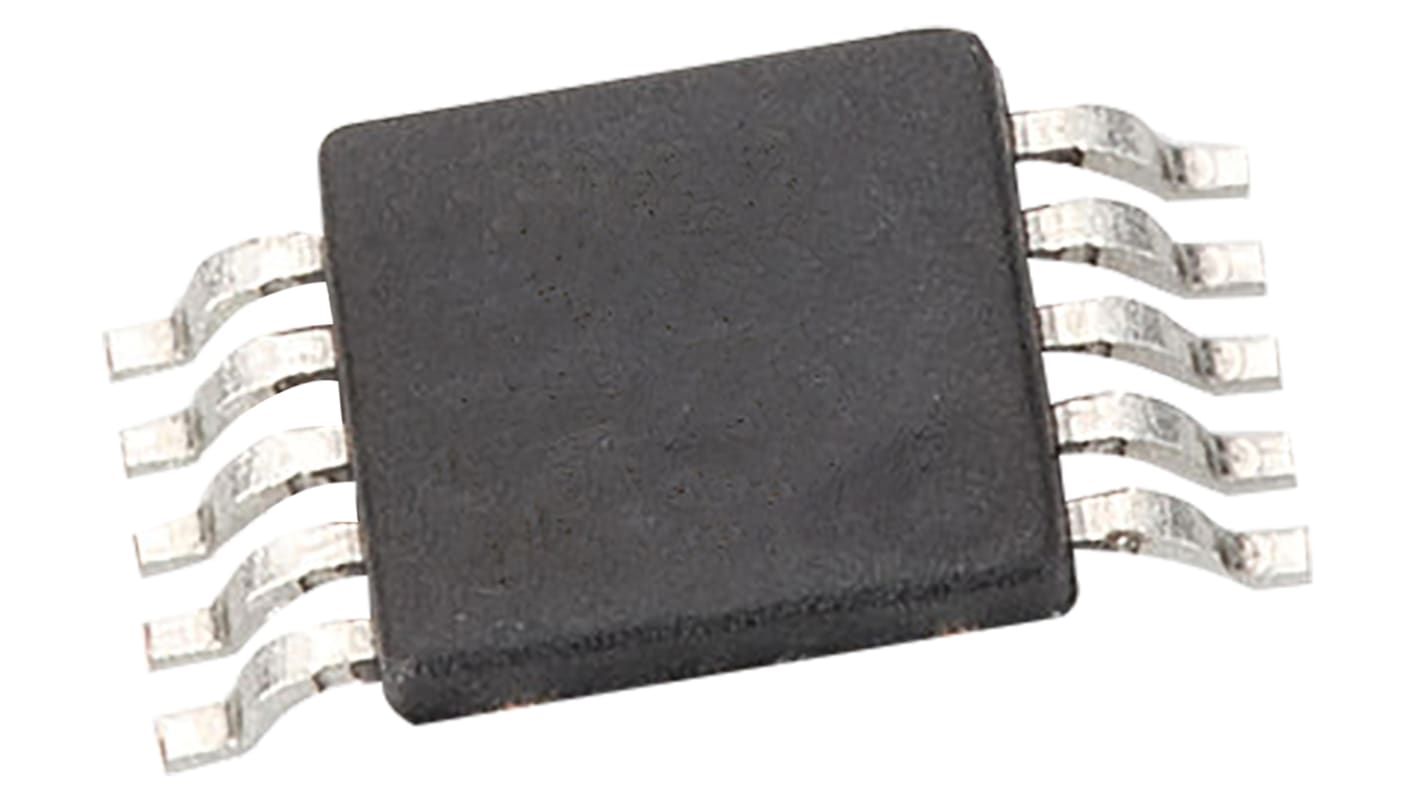

Texas Instruments DAC6574IDGS, 4-Channel Serial DAC, 188ksps, 10-Pin MSOP
- RS Stock No.:
- 662-1546P
- Mfr. Part No.:
- DAC6574IDGS
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 662-1546P
- Mfr. Part No.:
- DAC6574IDGS
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Architecture | Resistor String | |
| Resolution | 10 bit | |
| Conversion Rate | 188ksps | |
| Full Scale Error | ±1%FSR | |
| Integral Nonlinearity Error | ±2LSB | |
| Number of DAC Channels | 4 | |
| Mounting Type | Surface Mount | |
| Package Type | MSOP | |
| Pin Count | 10 | |
| Maximum Settling Time | 12µs | |
| Digital Interface Type | Serial (I2C) | |
| Output Polarity | Unipolar | |
| Voltage Reference | External | |
| Typical Single Supply Voltage | 3.3 V, 5 V | |
| Power Supply Type | Single | |
| Maximum Operating Temperature | +105 °C | |
| Dimensions | 3 x 3 x 1.02mm | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Architecture Resistor String | ||
Resolution 10 bit | ||
Conversion Rate 188ksps | ||
Full Scale Error ±1%FSR | ||
Integral Nonlinearity Error ±2LSB | ||
Number of DAC Channels 4 | ||
Mounting Type Surface Mount | ||
Package Type MSOP | ||
Pin Count 10 | ||
Maximum Settling Time 12µs | ||
Digital Interface Type Serial (I2C) | ||
Output Polarity Unipolar | ||
Voltage Reference External | ||
Typical Single Supply Voltage 3.3 V, 5 V | ||
Power Supply Type Single | ||
Maximum Operating Temperature +105 °C | ||
Dimensions 3 x 3 x 1.02mm | ||
Minimum Operating Temperature -40 °C | ||
